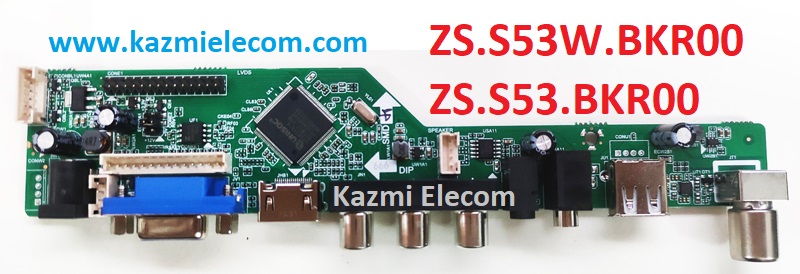

ZS.S53.BKR00 Universal Board
ZS.S53.BKR00 is a universal jumper board with multi-resolution panel screen-supported software. This board is suitable for 15-32-inch screen panels.
Basic Info:
Model No. ZS.S53.BKR00, ZS.S53W.BKR00
Main Chipset: Unisoc S53BKC
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
Tuner:
Sound:
Bin Name: S53BKC14.bin
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Copy the Required Firmware/software into the FAT32 USB Disk
Plugin the U disk into the Mainboard USB port of the LCD/LED TV
Switch ON the power and Wait until even the IR indicator LED stops flashing
Done. Unplug the U-disk (It will take a maximum of half a minute to upgrade firmware)
Factory Service Mode:
Menu+1147
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
ZS.S53.BKR00 Firmware All resolutions Free Download:
- ZS-S53-BKR00 1024X768-USB
- ZS-S53-BKR00 1280X1024-USB
- ZS-S53-BKR00 1366X768-USB
- ZS-S53-BKR00 1440X900-USB
- ZS-S53-BKR00 1600X900-USB
- ZS-S53-BKR00 1680X1050-USB
- ZS-S53-BKR00 1920×1080-USB
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
Resolion code number zs.h53.bkr00
WHERE IS THE ICON TO DOWNLOAD ZSM53.BKR00 ….??????
under download button
Thank you! You saved my board S53BKC14(PA) with a chip UTS6710-X.
I’ve used my board flashed with software for T.SK105A.03. It worked but 3 bugs: ATV wasn’t able to find TV channels, the Audio worked only on a 3mm jack but not on a 4pin connector, the 7key controller was a mess – Menu wasn’t worked and CH+ and CH- instead of changing channels they copied the last pressed button.
Now I flashed my board with the proper software for S53BKC14 and all works fine, TV channels work, the 4pin audio connector works, and the 7key controller works perfectly.
Please share that software
