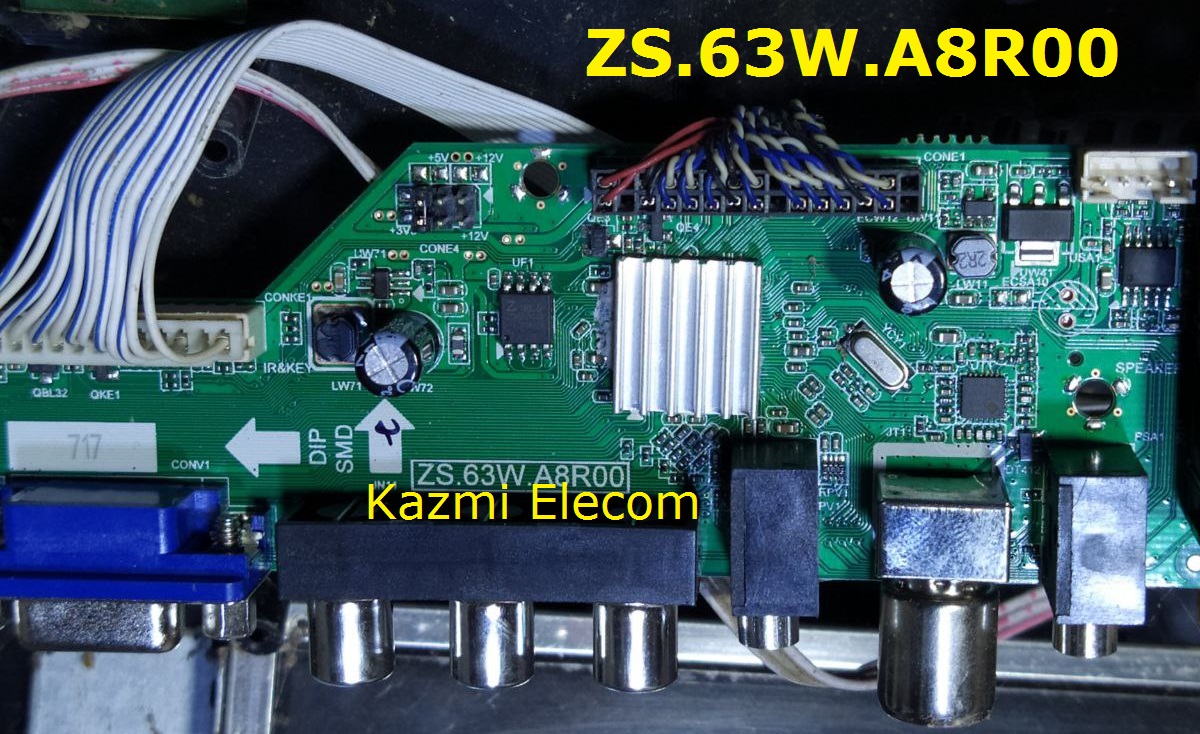

ZS.63W.A8R00 Universal Board
ZS.63W.A8R00 is a universal jumper board with multi-resolution panel screen-supported software.
Basic Info:
Model No. ZS.63W.A8R00
Main Chipset: 3663LW
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
Tuner:
Sound:
Bin Name: LW36A8C05.bin
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Copy the Required Firmware/software into the FAT32 USB Disk
Plugin the U disk into the Mainboard USB port of the LCD/LED TV
Switch ON the power and Wait until even the IR indicator LED stops flashing
Done. Unplug the U-disk (It will take a max half a minute to upgrade firmware)
Factory Service Mode:
Input 2580
Note: The following firmware is USB bootable and Backup Dump. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download the required resolution as per your panel specifications and then extract it you will get the folder. Now transfer the bin file in this folder to a USB disk and load firmware. For More Details about the download process, watch the video Click Here
ZS.63W.A8R00 Firmware All resolutions Free Download:
- ZS-63W-A8R00 1024×600-USB
- ZS-63W-A8R00 1024×768-USB
- ZS-63W-A8R00 1280×768-USB
- ZS-63W-A8R00 1280×800-USB
- ZS-63W-A8R00 1280×1024-USB
- ZS-63W-A8R00 1366×768-USB
- ZS-63W-A8R00 1400×1050-USB
- ZS-63W-A8R00 1440×900-USB
- ZS-63W-A8R00 1600×900-USB
- ZS-63W-A8R00 1600×1200-USB
- ZS-63W-A8R00 1680×1050-USB
- ZS-63W-A8R00 1920×1080-USB
- ZS-63W-A8R00 1920×1200-USB
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
