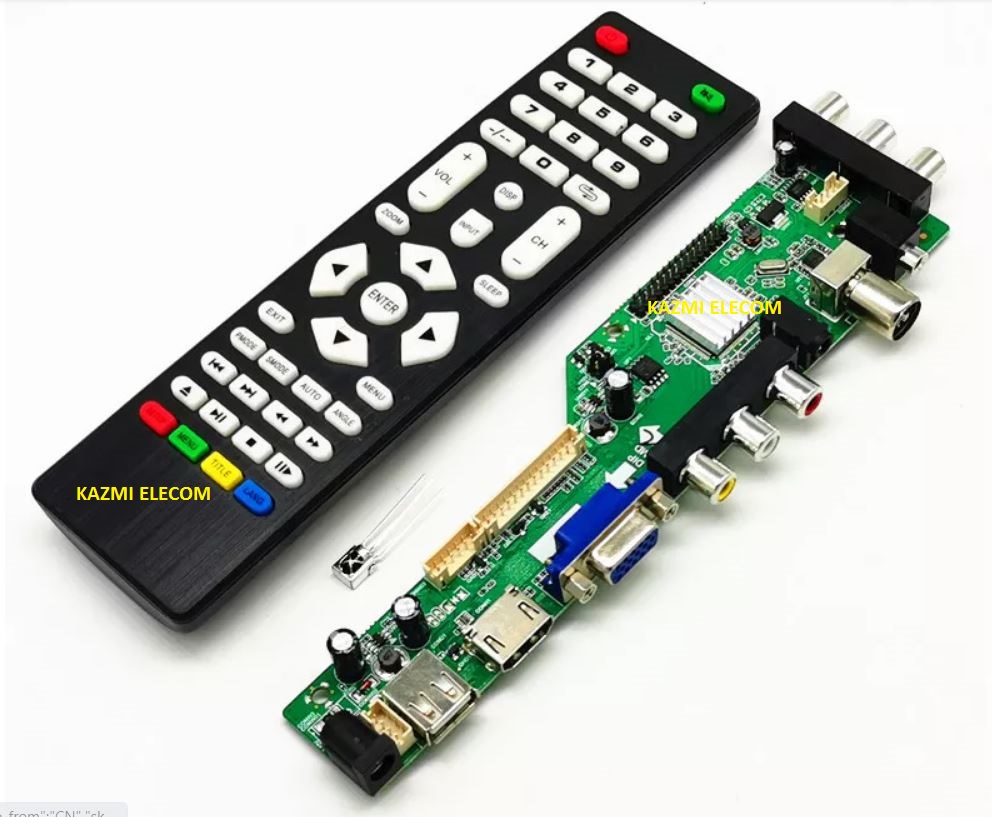

ZS.3663LA.A8R00 Universal Board

ZS.3663LA.A8R00 is a universal jumper board with multi-resolution panel screen-supported software. ZS.3663LA.A8R00 is suitable for Europe, Africa, the five Central Asian countries, the Middle East, Russia, Thailand, Burma, Kenya, Portugal, Malta, Uganda, and other countries or regions. A special feature is to support digital signals and Russia. Rafael R842 tuner supports T-2, DVB-T, DVB-C, and ATV, by just saying it supports more signal, teletext, and TV radio.

Basic Info:

Model No. ZS.3663LA.A8R00

Main Chipset: LUA63A82

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Tuner: R842

Sound: 2x8W

Bin Name: LUA63A82.Bin

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 8 Watt (8 ohms)

Video Input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV)/HDMI/VGA /AV/YPbPr

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

Copy the Required Firmware/software into the FAT32 USB Disk
Plugin the U disk into the Mainboard USB port of the LCD/LED TV
Switch ON the power and Wait until even the IR indicator LED stops flashing
Done. Unplug the U-disk (It will take a maximum of half min to upgrade firmware)

Factory Service Mode:

Input 2580

Note:  The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download:

Download the required resolution as per your panel specifications and then extract it you will get the folder. Now transfer the bin file in this folder to a USB disk and load firmware. For More Details about the download process, watch the video Click Here

ZS.3663LA.A8R00 Firmware All resolutions Free Download:

• ZS-3663LA-A8R00 1024×768-USB
• ZS-3663LA-A8R00 1280×1024-USB
• ZS-3663LA-A8R00 1366×768-USB
• ZS-3663LA-A8R00 1440×900-USB
• ZS-3663LA-A8R00 1600×900-USB
• ZS-3663LA-A8R00 1680×1050-USB
• ZS-3663LA-A8R00 1920×1080-USB
• ZS-3663LA-A8R00 1920×1200-USB
