ZP.V53RL.671 Firmware Free Download

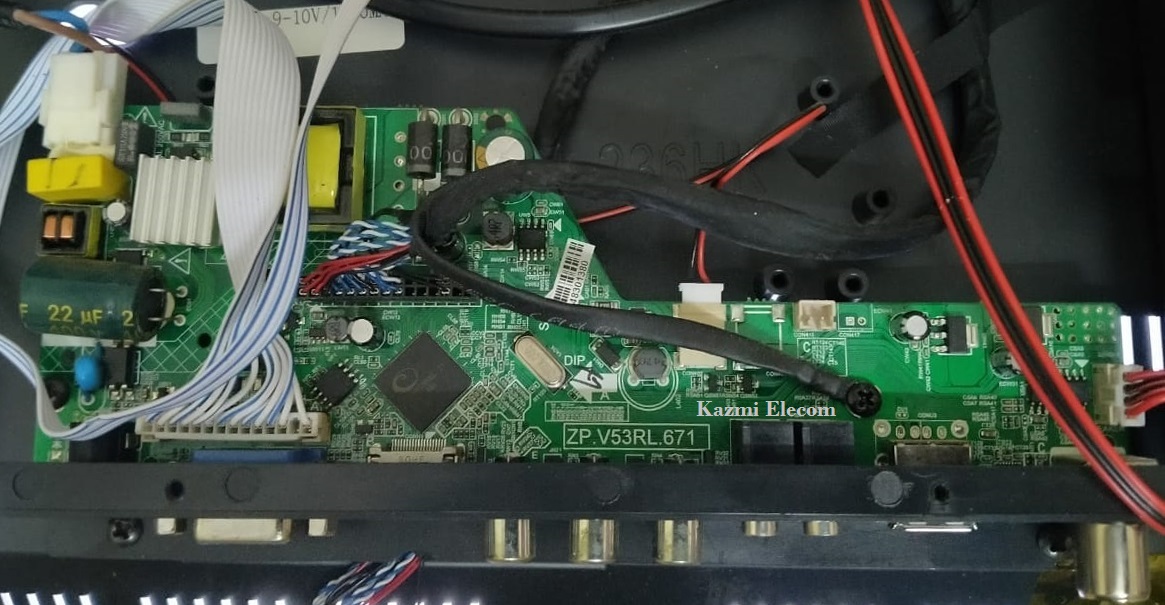

ZP.V53RL.671 Universal Board

Basic Info:

Model No. ZP.V53RL.671, DP.V53RU.671

Main Chipset: TSUMV53RUUL-Z1

LED Backlight: NA

Display Format: 1080

Panel Supported: 18.5″ to 24″

Flash Size: 4Mb (25Q32)

Aspect Ratio: 4:3, 16:9 & 16:10

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC 220V

Maximum Current: 3000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Firmware Type: USB Upgrade

Firmware Name: L53ZP671.bin

How to Upgrade Firmware:

Step 1: Empty the U disk

Step 2: Copy the corresponding resolution program (*. Bin file) to the U disk.

Step 3: Connect the U disk with the Mainboard

Step 4: Connect the Keypad and IR also

Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,

Factory Service Mode:

Menu+1147

Note: The following ZP-V53RL-671 firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Videocon ZP.V53RL.671 Firmware file:

Download all parts of Videocon ZP-V53RL-671 firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

ZP.V53RL.671 Firmware Free Download Here :

• ZP.V53RL.671_1366x768_Samsung_USB
