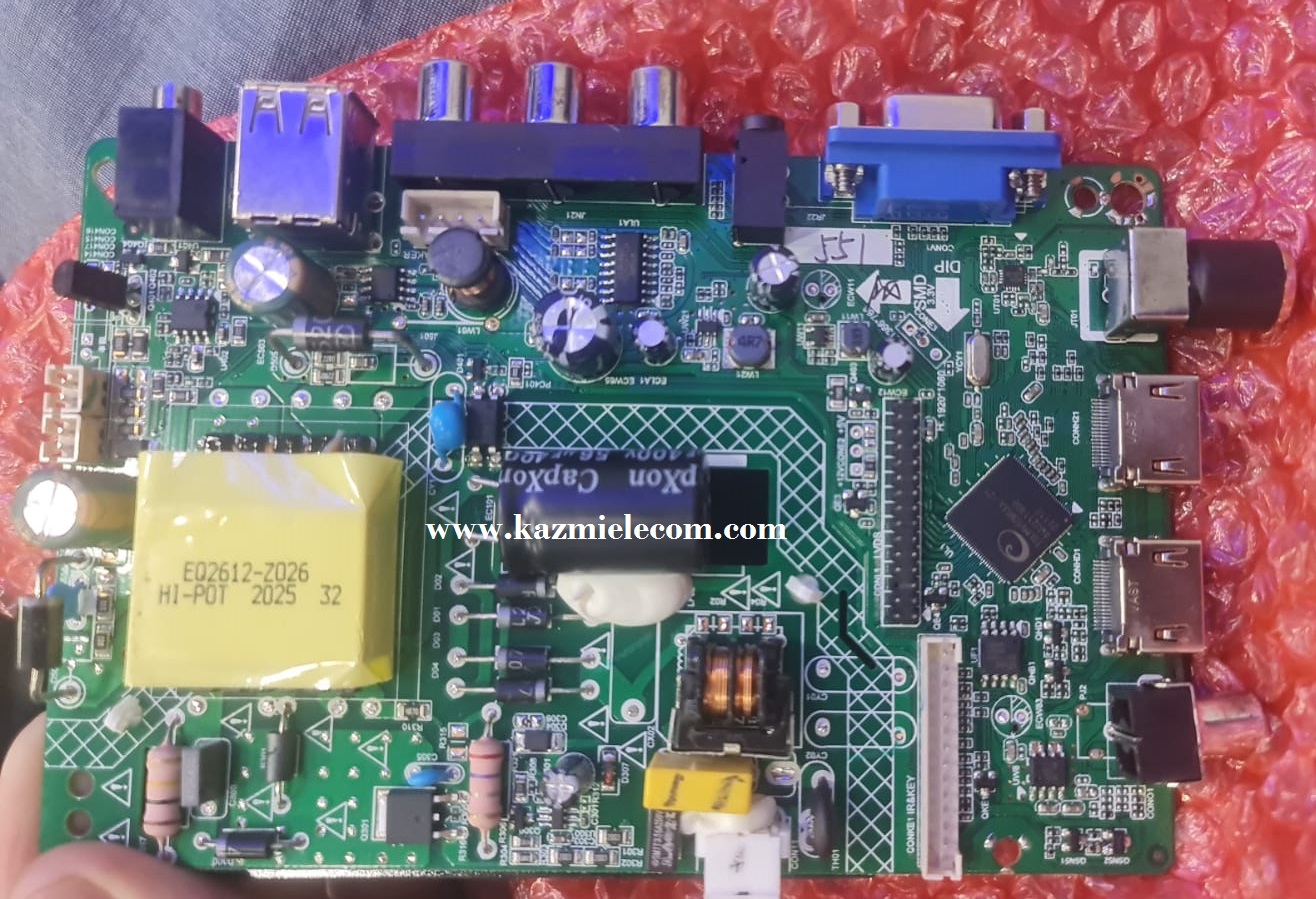

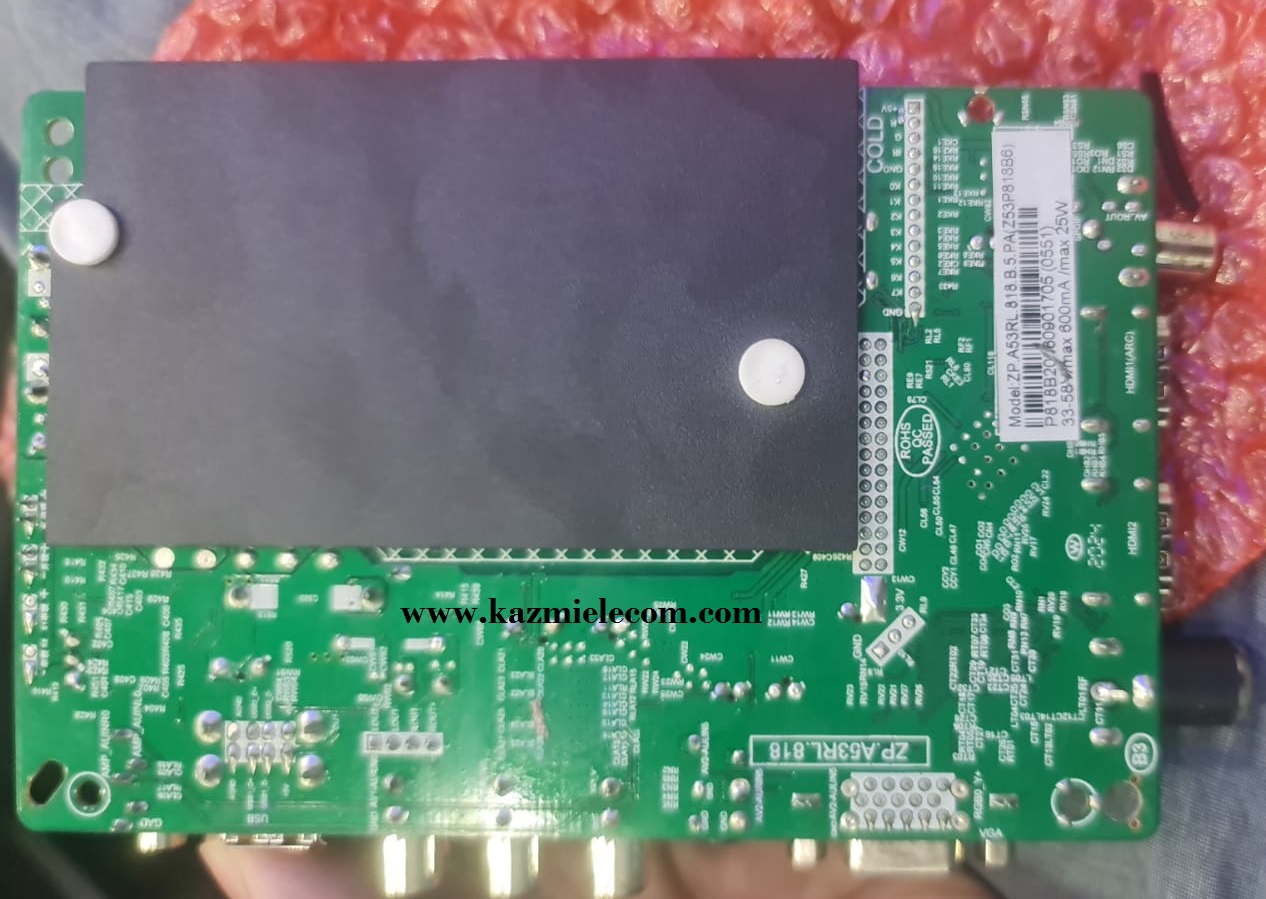

ZP.A53RL.818 LED TV Board

ZP.A53RL.818 is an analog LCD/LED TV Controller Driver Board that is suitable for middle east and Asian markets.

ZP.A53RL.818 also supports the NTSC format. ZP_A53RL_818 is three in one board. The main power supply unit, LED backlight driver inverter circuit and ATV module is builtin into a single PCB that’s why it is also called a Combo Board. ZP.A53RL.818 Board is best suitable for 32-inch screens to 40-inch screen panels. Its USB interface is convenient for software upgrades and playback of multimedia files as well.

Technical Specifications:

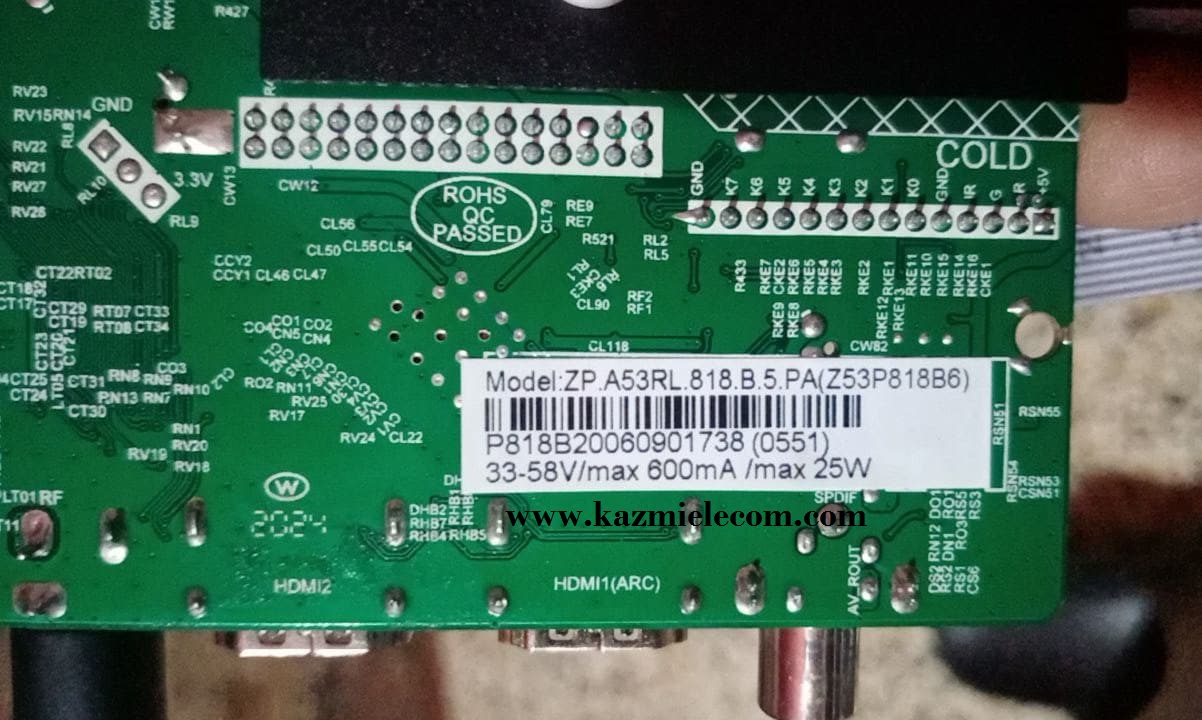

Model Number: ZP-A53RL-818

Main Chipset: TSUM53RUUL-Z1

Supported Resolution: up to 1920×1080

Screen Supported: 32″ to 40″

Screen Interface: LVDS single 6 single 8 double 6 double 8

Panel Screen Voltage: 5v, 12v

Mirror Mode: Yes

Input Interface: Computer / HDMI / video / TV / USB multimedia / Headphone input and output

Backlight Output Voltage Range: 33V-58V

Backlight Current Output Range: up to 600mA 25w

Flash IC: 4Mb

Input Voltage: 220V AC

Factory Mode:

Menu+1147

How to Load Software:

The given files are backed up with the programming tool. So, it is necessary to load these backup dump files with the help of the programmer. These files can not be loaded/upgraded with a USB interface. If you are new and do not have enough knowledge of loading or installing software/firmware or dumping files then read here first.

How to Download:

Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

ZP.A53RL.818 firmware for free download:



S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	ZP.A53RL.818_1920x1080_Dump	Download
