Z.VST.V56RJ.B & Z.VST.V56RU.B Universal LED TV Board
Z.VST.V56RJ.B & Z.VST.V56RU.B is a universal LCD/LED TV Controller Driver Board with the main chipset of V56. V56 chip is a chip upgrade based on V59. The following two board models of the V56 chipset are:

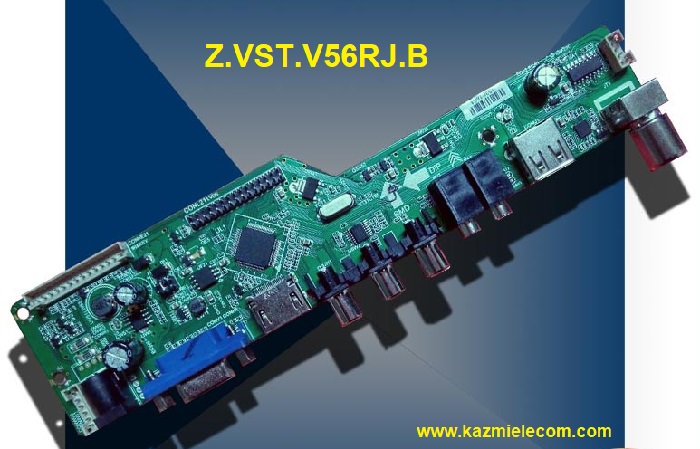

- Z.VST.V56RJ.B

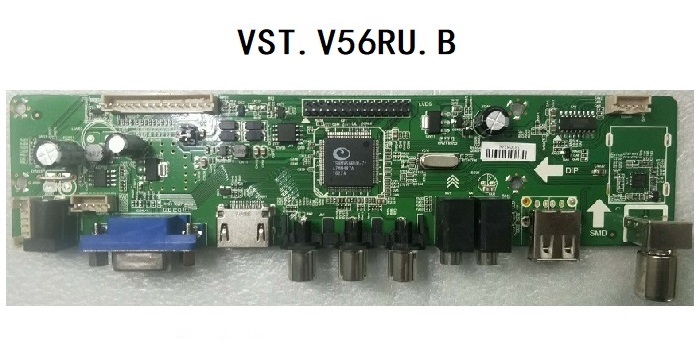

- Z.VST.V56RU.B
Z.VST.V56RJ.B & Z.VST.V56RU.B is a complete LCD TV, driver board, and motherboard that has a USB VGA HD AV TV on the driver board. It supports high screen resolution 1920×1080 with screen sizes of 15-42 inch LVDS screen. About its USB interface, the Not only USB interface can be used to upgrade programs, but also can use to play video, basically, formats are supported. You can also set a boot display pictures or LOGO.
General Specifications:
Model: LLV56
Board Number: Z.VST.V56RU.B & Z.VST.V56RJ.B
Scheme of the chip: TSUMV56
Input Interface: PC / HD / TV / USB multimedia playing
Voltage Input: Single 12V, 4Amp
Screen interface: LVDS Single 6 / 8 , Double 6 / 8
Screen voltage: 3.3V / 5V / 12V
Resolution: Support high screen 1920 * 1080, 15-42 inch LVDS screen
How to Program:
1. The screen of the program is copied to the USB drive.
2. Insert USB Flash disk to the USB port on the motherboard
3. Connect the keypad, electricity, until you see by the indicator lights on the keypad after flashing in red and green, until after the indicator light flashing, unplug the power, then pull out USB Flash disk, afresh power on.
(Note that write programs do not power outages, crashing won’t be able to use)
Note: The following firmware is a dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below the Z.VST.V56RJ.B & Z.VST.V56RU.B firmware USB updateable files for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | Z.VST.V56RJ.B_All Resolution.part01 | Download |
| Z.VST.V56RJ.B_All Resolution.part02 | Download | |
| Z.VST.V56RJ.B_All Resolution.part03 | Download | |
| 2 | Z.VST.V56RU.B_All Resolution.part01 | Download |
| Z.VST.V56RU.B_All Resolution.part02 | Download | |
| Z.VST.V56RU.B_All Resolution.part03 | Download |
vstp53u51.2 combo bord firmware sofver 1920×1080
shared in a separate post
Merci pour l’aide
1366
Merci
Hi, can you help me to find software for z.vst.v56rj.b for the lcd LP156WH1 TLA1 or for the lcd LP154W01 TLA2. Thanks in advance
download all parts and then extract any one of them you will get the folder then load firmware 1366×768 and 1280×720 respectively
Amid akgen neu taksim tai doria kora softwer deban
Bro isme bluetooth wala bhi aata haina card
No. android board me ata hy
Ds.v56rj.bk 1366* general software
Vst.v56rj or ds.v56rj same software working..
