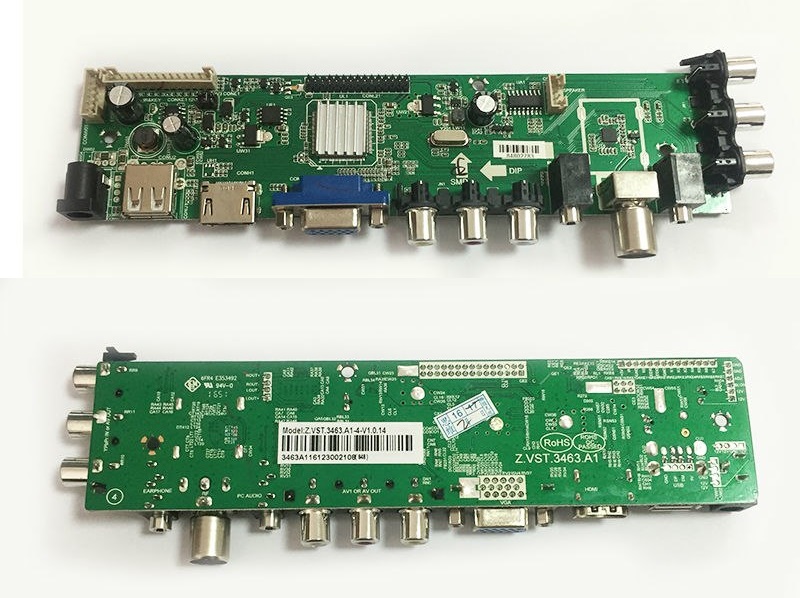

Z.VST.3463.A1 Universal DVB-T2 TV Board
Z.VST.3463.A is a digital DVB-T2/DVB-T/DVB-C TV control board, which is suitable for the Europe market. Z.VST.3463.A1 is a digital DVB-T2/DVB-T/DVB-C TV driver board for the European market. Its USB slot can be used for updating software and playing multimedia, such as MP3 and JPEG. The solution’s USB interface is available for software upgrades and multimedia playback. HDMI1.3/1.4 compliant with ARC support, HDCP1.2 compliant. The HDMI-supported version of this solution is 1.3/1.4 compatible with ARC, and HDCP supports version 1.2.
General Specifications:
Model: Z.VST.3463.A1
Main Chipset: MSD3463GU-Z1
Video Input: ATV/DTV
- DVB‐T:COFDM QPSK, 16QAM, 64QAM
- DVB‐T2: COFDM QPSK, 16QAM ,64QAM ,256QAM
- DVB‐C:16QAM,32QAM,64QAM,128QAM,256QAM
Resolution Support: up to 1920×1080
Tuner chip: R840/R842
Panel Volt: 3.3v, 5v, 12v
Terminal Functions: USB ,HDMI , VGA ,AV,PCAUDIOIN, TV , EARPHONEOUT,AV OUT
Key Function: TV/AV,MENU,VOL+,VOL-, CH+,CH-,POWER
OSD Language: English, Spanish, French, etc.
Audio Output: 2×2W(4Ω)/2×8W
Flash Memory: 25Q64CSIG
Power Input: 12v DC
Standby Power Consumption: < 0.3W(Board Only)
Service Menu Code:
Input 2580
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
How to Load Software:
1. Put the firmware of “3463GU_A.bin” in the formatted USB flash disk, then insert the USB disk into the board
2. After turning on the power, the light of the 7key button will be Red then flash red and blue.
after about 1 minute, the light stops flashing, which means the upgrade has finished.
(Note that write programs do not power outages, crashing won’t be able to use)
Z.VST.3463.A1 firmware of All Resolutions for free Download:
| S.NO. | BOARD/DESCRIPTION | D.LINK.1 | D.LINK.2 |
|---|---|---|---|
| 1 | Z.VST.3463.A_1024x600_USB | Download | |
| 2 | Z.VST.3463.A_1024x768_USB | Download | |
| 3 | Z.VST.3463.A_1280x800_USB | Download | |
| 4 | Z.VST.3463.A_1280x1024_USB | Download | |
| 5 | Z.VST.3463.A_1366x768_USB | Download | |
| 6 | Z.VST.3463.A_1440x900_USB | Download | |
| 7 | Z.VST.3463.A_1600x900_USB | Download | |
| 8 | Z.VST.3463.A_1600x1200_USB | Download | |
| 9 | Z.VST.3463.A_1680x1050_USB | Download | |
| 10 | Z.VST.3463.A_1920x1080_USB | Download | |
| 11 | Z.VST.3463.A_1920x1200_USB | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
