WESTON WEL-5100 Firmware Free Download

WESTON WEL-5100 Smart LED TV

Weston WEL-5100 is a 125cm 48-inch Smart Full HD LED TV launched in India. This 48 Inch smart TV supports a resolution of FHD 1920×1080 Pixels, has a refresh rate of 60 Hz, and an aspect ratio of 16:9. Its supported Video formats on the TV include ASF, AVI, MKV, MOV, MP4, MPEG, and VOB. The TV has a contrast ratio of 100000 :1 and has brightness levels peak at 2200 Nits. It has a wide horizontal viewing angle of 178 Degrees. For audio, the Weston features a stereo speaker setup with a rated total output of 16 watts. It supports audio formats like AAC, MP3, and WMA.

Download Here

It has the option of Auto volume leveler, Balance, and several standard sound mode presets. This LED TV has multiple input-output ports for the user including 2 x USB 2.0 ports, 2 x HDMI ports, 1 X RF Input port, Ethernet port (RJ45), 1 x VGA Input port for PC input, and digital audio output ports. Wireless connectivity involves Wi-Fi and Bluetooth. As part of its smart features, the WEL-5100 LED Full HD Smart LED TV gets access to OTT apps. It has smart features like Apps, Games, Browser, Facebook, etc. The user can install apk files and can also uninstall smart tv applications.

WESTON WEL-5100 General Information:

Model: WEL-5100

Series: Smart TV

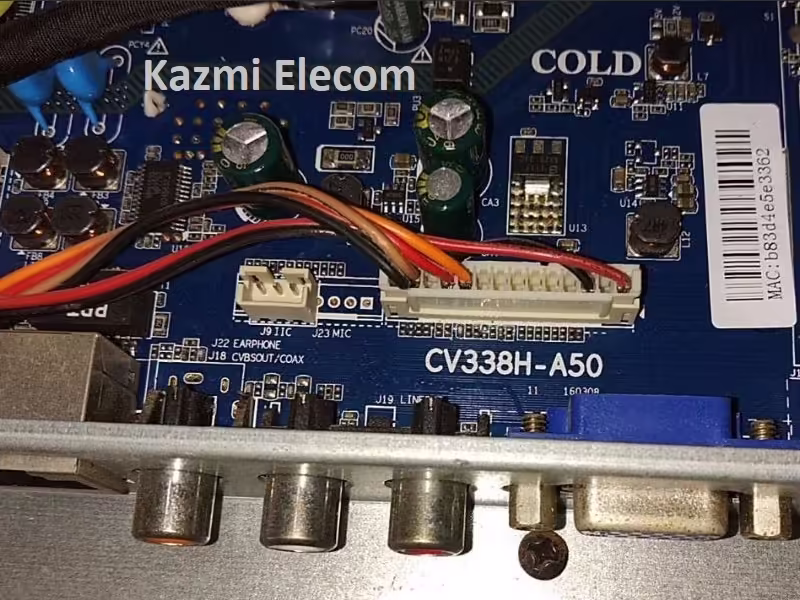

Main Board: CV338H-A50

Panel: 48″

Resolution: 1920×1080 Full HD

Audio Power: 2x8W (8 ohm)

Backlight Current: mA

Backlight Power: NA

USB Ports: 2

HDMI Ports: 2

Scart: NA

RJ45: Yes

Analog Tuner: PAL, SECAM

Digital Tuner: HD DVB-T2/C/S2

Wifi: Yes

Mira-Cast: No

Satellite Input: No

RAM: 512MB

ROM: 4GB EMMC Flash

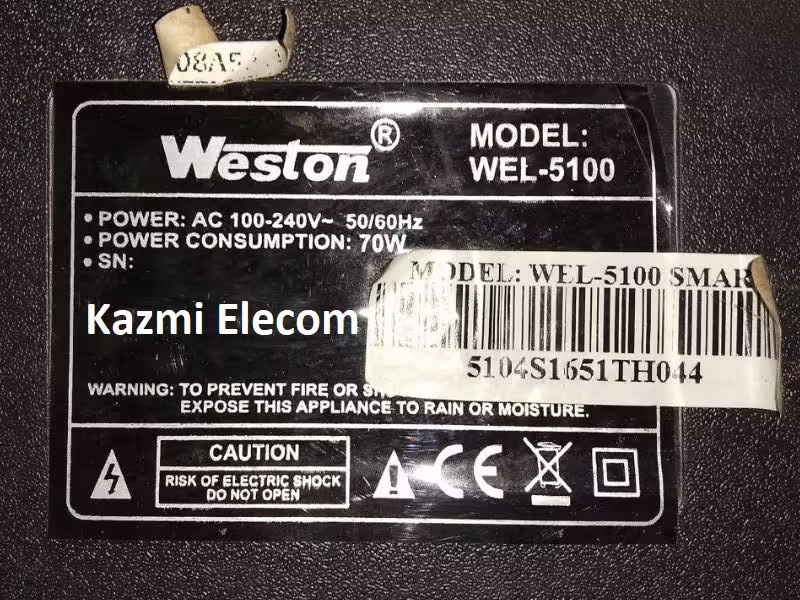

Power Rating: 100V~240V 50/60Hz

Power Consumption: 70Watt

Firmware Name: CtvUpgrade.bin

Firmware Type: USB Bootable

Product User: Weston-India

WESTON WEL-5100 Technical Specifications:

Model Name WEL-5100
Display Size 48 inch
Screen Type LED
Display Features 1080P
Operating System Android 4.4
Color Black
Smart TV Yes
Curve TV No
Launch Year 2016
Resolution Standard Full-HD
Resolution (pixels) 1920×1080
No of HDMI Port 2
No of USB Port 2
Support Audio, Video, Image
Built-In Wi-Fi Yes
Ethernet (RJ45) 1
Component Video Input Yes
Number of Speakers 2
Speaker Output RMS 16 Watt
Headphone out Yes
Internet Additional LAN and WIFI
Aspect Ratio 16:9
Video Additional MP4, 3GP
View Angle H-178 and v-178 Degree
Power Supply Voltage 100 – 240 V
Power Consumption 70 W, 0.5 W (Standby)
Touch Remote No
Refresh Rate (Hz) 60

How to Install USB Bootable Firmware:

Download the required WESTON WEL-5100 USB bootable firmware.
Extract the zip files to get the folder.
Transfer the firmware (CtvUpgrade.bin) file to the empty FAT 32 formatted Pen Drive
Switch OFF the TV from the main power
Insert the pen drive into the USB port of the LED TV
It will start automatically Upgrading the firmware
The installation progress bar will display on the screen
Wait till completion. Done

Note: The following WESTON WEL-5100 firmware is a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
