VTX-V59-YA-1.0-V Firmware Free Download

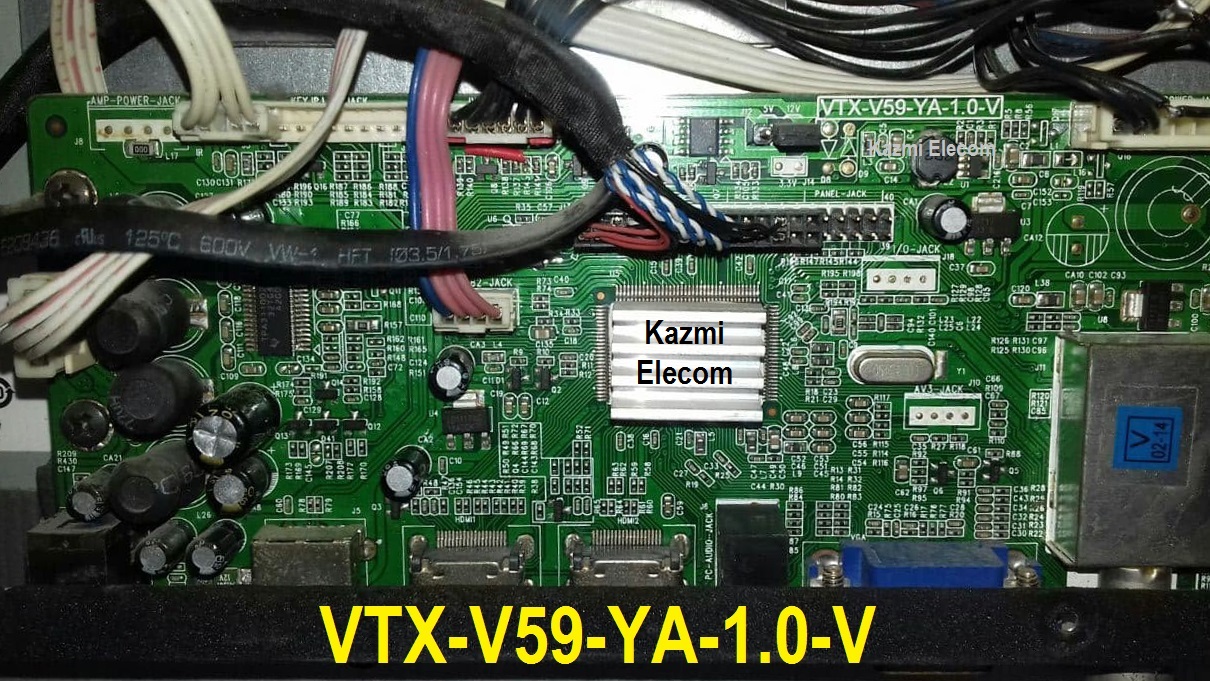

VTX-V59-YA-1.0-V Universal Board

VTX-V59-YA-1.0-V is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support more than 26-inch LCD panels which a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. Its HDMI port support 1.4 and its HDCP support 1.1. VTX.V59-YA-1.0-V is compatible with 24-39 inch screens. VTX-V59-YA-1.0-V1 is widescreen-supported and also has a multi-language option. VTX.V59-YA-1.0-V and VTX-V59-YA-1.0-V1 have their special feature of Dual AV.

General Specifications:

Model: VTX-V59-YA-1.0-V

Main Chipset: TSUMV59XU

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W

Maximum Current for USB: 500mA

Factory Service Mode:

Input 2008

Flash IC: 4MB

Firmware Type: Backup Dump

Note: Following VTX.V59-YA-1.0-V firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download VTX.V59-YA-1.0-V Firmware File:

Download your required file of the following VTX.V59-YA-1.0-V firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

VTX-V59-YA-1.0-V Firmware Collection Free Download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	VTX-V59-YA-1.0-V_1366x768_Beston_Dump	Download
2	VTX-V59-YA-1.0-V_1600x900_Beston_Dump	Download
3	VTX-V59-YA-1.0-V_1600x900_Micromax_Dump	Download
