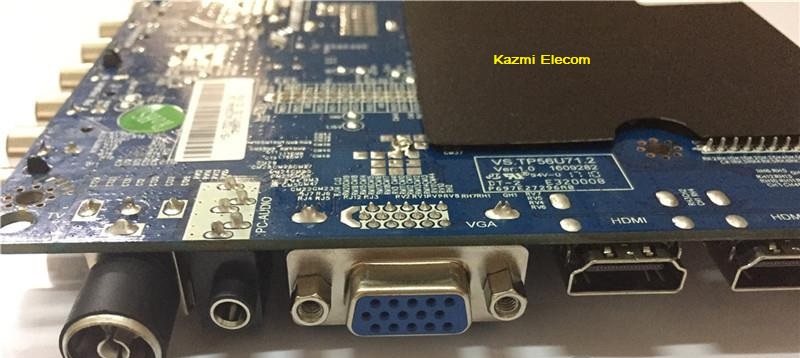

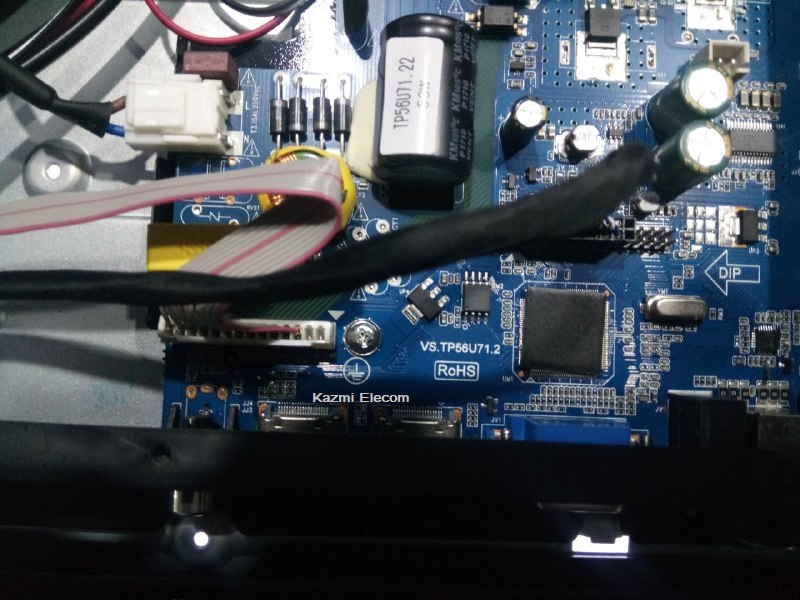

VS.TP56U71.2 LED TV Mainboard

VS.TP56U71.2 is an analog combo LCD/LED driver controller board suitable for 27-32-inch TVs. This new Board is best according to its features like backlight adjustment, Mirroring option, and Logo capture. VS.TP56U71.2 is best suitable for the Asia Pacific and the Middle East as well.

Download Here

TP56U71.2 can support a maximum resolution of 1920×1080 Full HD. TP56U71.2 is a 3 IN 1 TV board with video +Power+LED driver.

General Specifications:

Model Number: VS.Tp56U71.21

Main Chip: TSUMV56RUU-Z1

Screen Supported: 27-32inch

Resolution: up to 1920×1080@60Hz

Audio Output: 6w*2

Video System: PAL, SECAM

Backlight Voltage: 30V-65V

Backlight Current: 210-600mA

Max Output Power: 30W

Mirror Option: Yes

Backlight Adjustment: Yes

Panel Voltage: 12V, 5V

AC Input Power: AC90V-AC264V

Standby Consumption: < 0.5W

Output Power Consumption: 50W

Service Menu:

Input + 208

Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss in result with loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download your required resolution and then extract it you will get the folder. Now copy the bin file to USB. For more Details about the download process watch the video Click Here

TP56U71.2 firmware for all resolutions free download:
