VS.TP56L52.2 Software Free Download

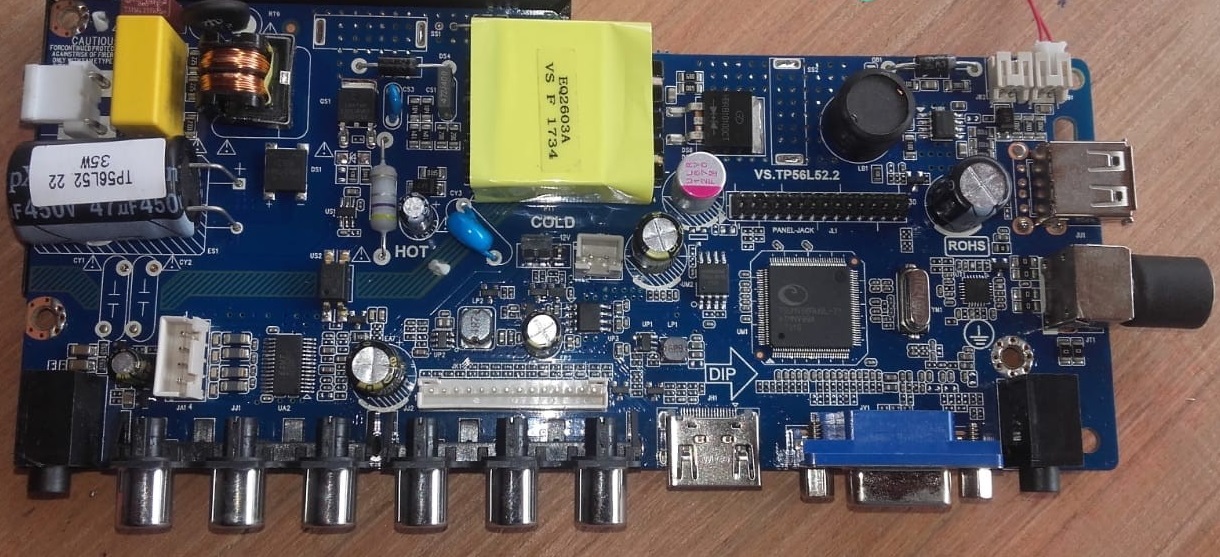

VS.TP56L52.2 LED TV Driver Board

VS.TP56L52.2 is a combo LCD/LED driver controller board suitable for 24 to 32-inch TVs. This new Board is best according to its features like backlight adjustment, Mirroring option, and Logo capture. VS TP56L52.2 is best suitable for the Asia Pacific and the Middle East as well. VS-TP56L52.2 led driver board has all the connectivity interfaces like VGA, HDMI, AM, RF, and USB ports for multimedia and software loading. VS-TP56L52.2 does not need any external backlight driver board or power module that is inbuilt into this board. VS.TP56L52.2 firmware files are given below for the technician’s support.

General Specifications:

Model Number: VS.TP56L52.2

Main Chip: TSUMV56RUUL-Z1

Screen Supported: 24 to 32 inch

Resolution: 1920×1080

Backlight: 35W

Mirror Option: Yes

Backlight Adjustment: Yes

Panel Voltage: 12V

Capture Logo: Yes

Service Menu:

Menu + 1147

Note: Following VS-TP56L52.2 firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download VS.TP56L52.2 Firmware Files:

Download all parts of the following VS-TP56L52.2 firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

VS.TP56L52.2 Firmware for free download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	VS.TP56L52.2_1366x768_Backup_Dump	Download
2	VS.TP56L52.2_1920x1080_Backup_Dump	Download

For video tutorials, visit “Kazmi Elecom” my youtube channel.
