VS.TP53U71.2 Software Free Download

VS.TP53U71.2

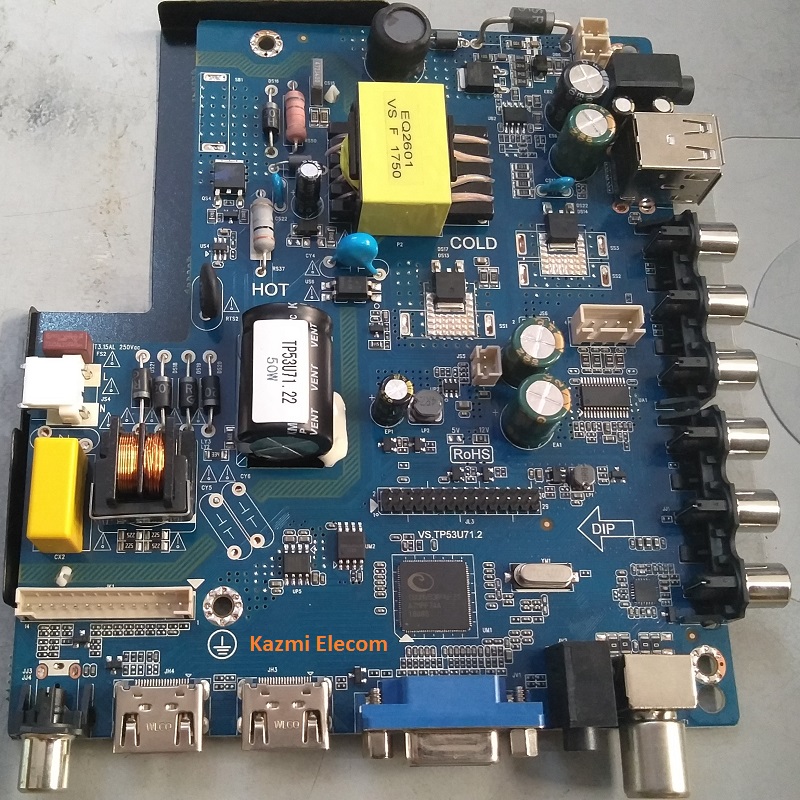

VS.TP53U71.2 is a combo LCD/LED driver controller board suitable for 32-inch TVs. This new Board is best according to its features like backlight adjustment, Mirroring option, and Logo capture. VS-TP53U71.2 is best suitable for the Asia Pacific and the Middle East as well. VS-TP53U71-2 is a three-in-one board with a built-in sound card, ATV TV tuner, main input power supply, and backlight driver module on a single printed circuit board (PCB).

VS.TP53U71.2 is a universal LCD LED motherboard. It has multiple input-output ports such as dual USB input options for connecting external hard disk drives, software upgrades, and other plug-and-play devices. It has dual HDMI input options for connecting Digital devices like Blu-ray players, gaming consoles, STBs, digital cameras, etc. It has a composite input option for analog devices. It has also a VGA interface for computing and laptops. It has a headphone output.

General Specifications:

Model Number: VS.TP53U71.2

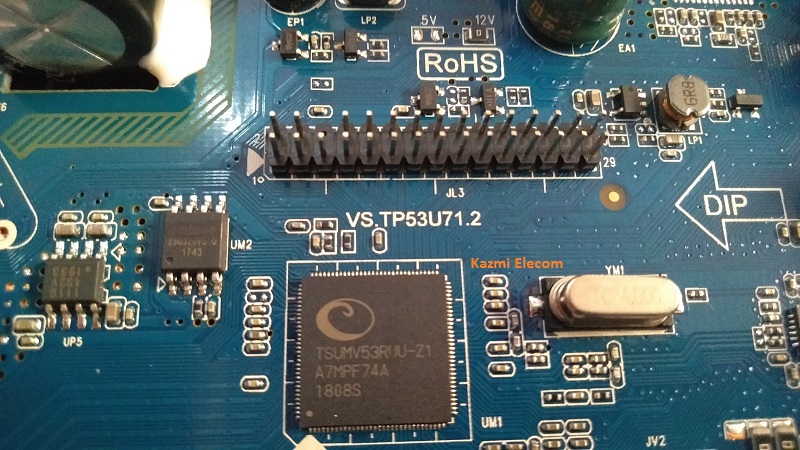

Main Chip: TSUMV53RUU-Z1

Screen Supported: 32 inch

Resolution: 1920×1080

Backlight Current: 450mA

Backlight Capacity: 50W

Mirror Option: Yes

Backlight Adjustment: Yes

Panel Voltage: 12V

Capture Logo: Yes

Service Menu:

Input + 208

Note: The following firmware collection is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. For more details about the download, process watch the video Click Here

VS.TP53U71.2 firmware for all resolution free download:

• VS-TP53U71-2_1366x768_USB
• VS-TP53U71-2_1920x1080_USB
• VS-TP53U71-2_Inbuilt-Panel-Resolution
