VS.T59B-V3.3 Software Free Download

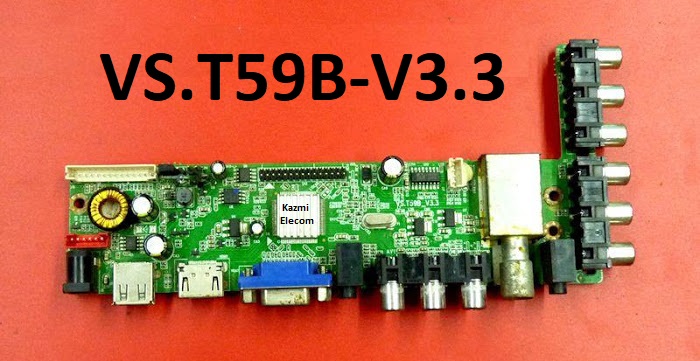

VS.T59B-V3.3 Universal Board

VS.T59B-V3.3 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support more than 26-inch LCD panels with a resolution is up to 1920×1080 Full HD. Its USB interface supports Multimedia Playback and Software Upgrades as well. Its HDMI port support 1.4 and its HDCP support 1.1. VS.T59B V3.3 is compatible with 10-40 inch screens. VS.T59B_V3.3 is wide-screen supported and also has the multi-language option. VS.T59B-V3.3 has the special feature of Multiple AV ports. VS.T59B-V3.3 all resolution firmware files are given below for the help of technicians.

Download Here

General Specifications:

Model: VS.T59B-V3.3

Main Chipset: TSUMV59XU/ TSUMV29LU

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W

Maximum Current for USB: 500mA

How to Upgrade Firmware:

Copy the Required Firmware/software into the FAT32 USB Disk
Plug the U disk into the Mainboard USB port of the LCD/LED TV
Switch ON the power and Wait until even the IR indicator LED stops flashing
Done. Unplug the U-disk (It will take max 1 min to upgrade firmware)

Factory Service Mode:

Input/Source+308

Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

VS.T59B-V3.3 Firmware All resolutions Free Download:
