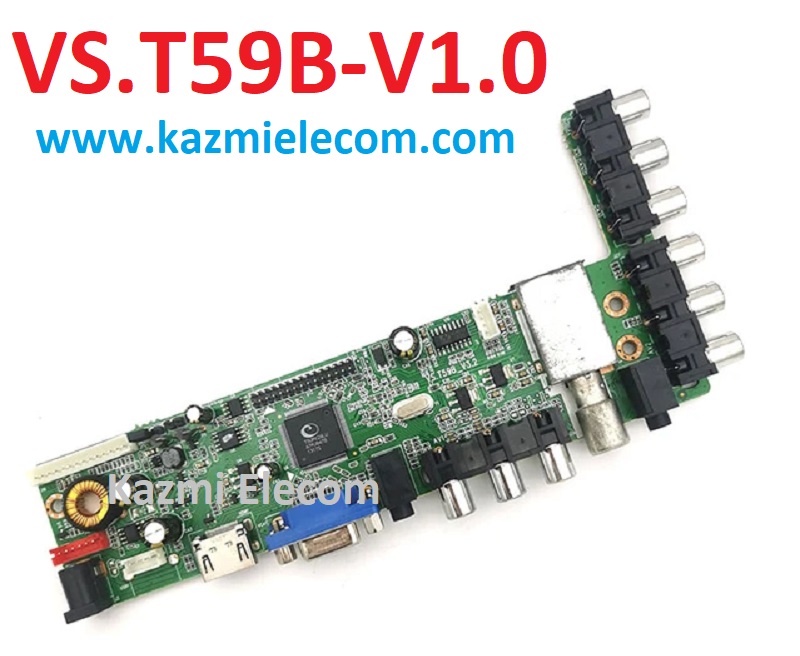

VS.T59B-V1.0 Universal Board
VS.T59B-V1.0 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support more than 26-inch LCD panels with a resolution is up to 1920×1080 Full HD. Its USB interface supports Multimedia Playback and Software Upgrades as well. Its HDMI port support 1.4 and its HDCP support 1.1. VS.T59B V1.0 is compatible with 10-40 inch screens. VS.T59B_V1.0 is wide-screen supported and also has the multi-language option. VS.T59B-V1.0 has the special feature of Multiple AV ports. VS.T59B-V1.0 all resolution firmware files are given below for the help of technicians.
General Specifications:
Model: VS.T59B-V1.0
Main Chipset: TSUMV59XU/ TSUMV29LU
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software into the FAT32 USB Disk
- Plug the U disk into the Mainboard USB port of the LCD/LED TV
- Switch ON the power and Wait until even the IR indicator LED stops flashing
- Done. Unplug the U-disk (It will take max 1 min to upgrade firmware)
Factory Service Mode:
Menu 1147, Input/Source+308
Note: The following firmware file is a backup dump. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
VS.T59B-V1.0 Firmware All resolutions Free Download:
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
