VS.T596_V3.1-8 Software Free Download

VS.T596_V3.1-8 Universal Board

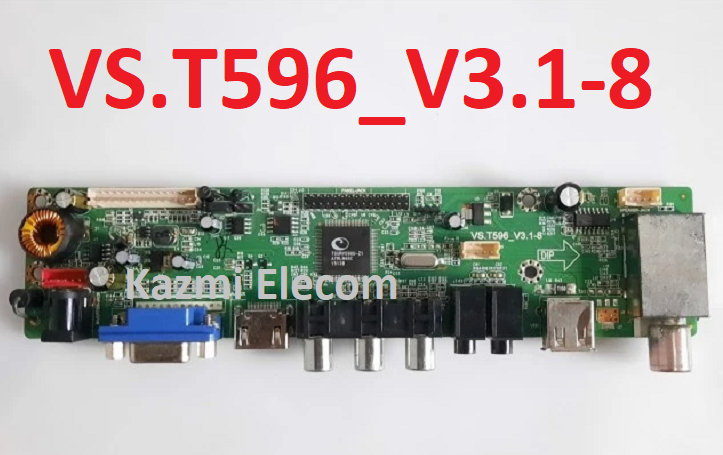

VS.T596_V3.1-8 is a Universal LCD/LED Driver Board.

Basic Info:

Model No. VS.T596_V3.1-8

Main Chipset: TSUMMV29LU/V59

Tuner:

Display Format: up to 1080

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out Jack

Audio O/P Power: 2 x 5 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

1. Copy the Required Firmware/software into the FAT32 USB Disk
2. Plug the U disk into the Mainboard USB port of the LCD/LED TV
3. Switch ON the power and Wait until even the IR indicator LED stops flashing
4. Done. Unplug the U-disk (It will take max 1 min to upgrade firmware)

Factory Service Mode:

INPUT
MENU

Note:

The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

VS.T596_V3.1-8 Firmware All resolutions Free Download :

• VS.T596_V3.1-8

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
