VS.T56U11.2 Universal LCD/LED Board
VS.T56U11.2 is a universal LCD/LED Panel Screens Driver Board.

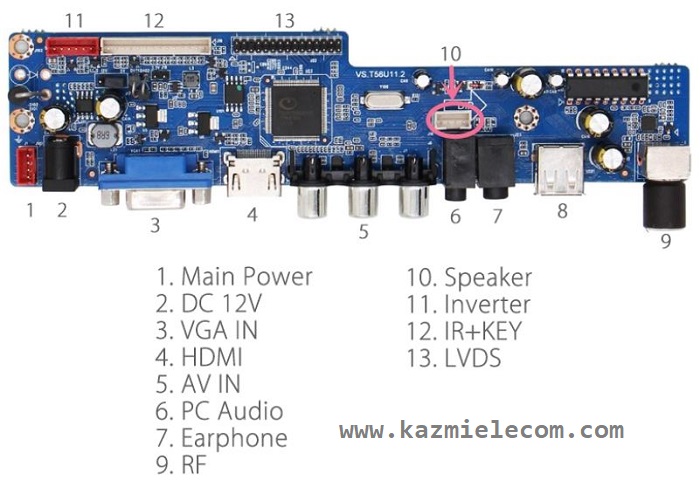

Basic Info:
Model No. VS-T56U11-2
Main Chipset: TSUMV56RUU-Z1
Tuner: R842
Display Format: up to 1920×1200
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Plugin the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the power and Wait even IR indicator led stops flashing
- Done. Unplug the Udisk (It will take a max 1 min to upgrade firmware)
Factory Service Mode:
Input+208
Resolution Code: Click Here

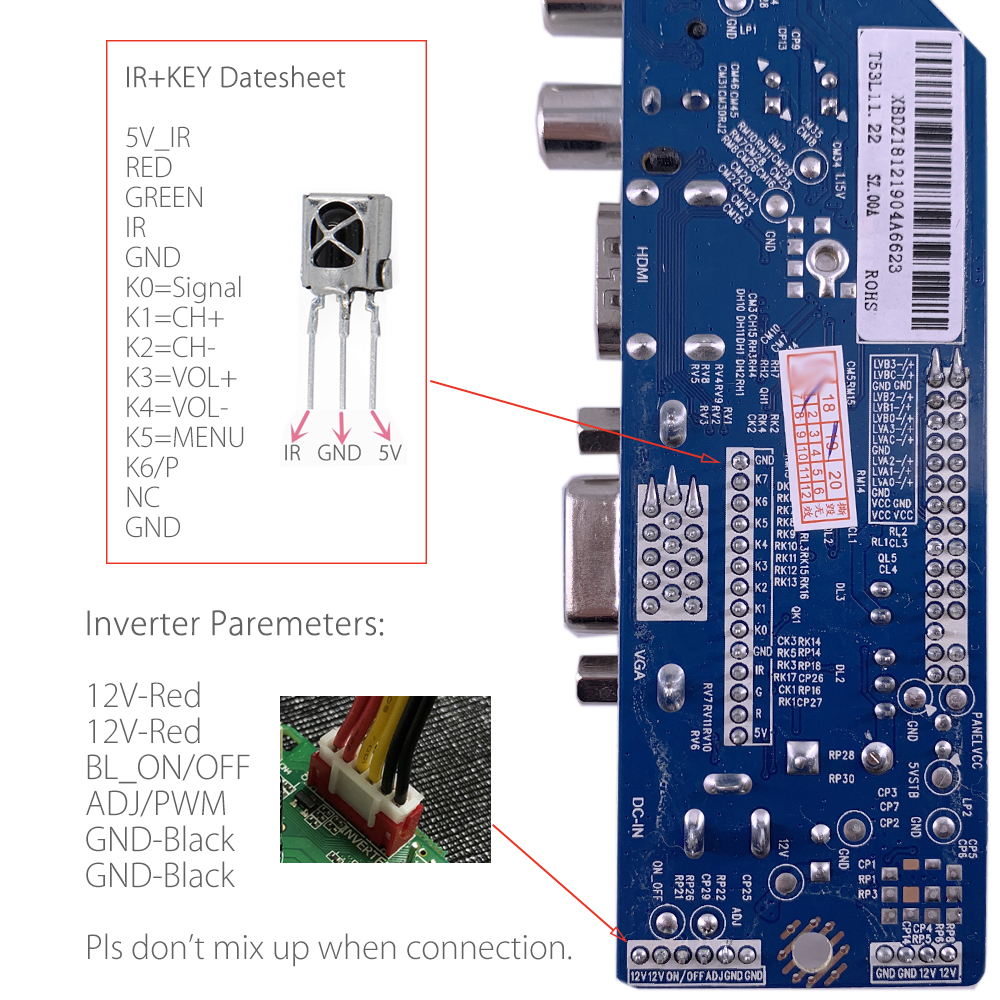

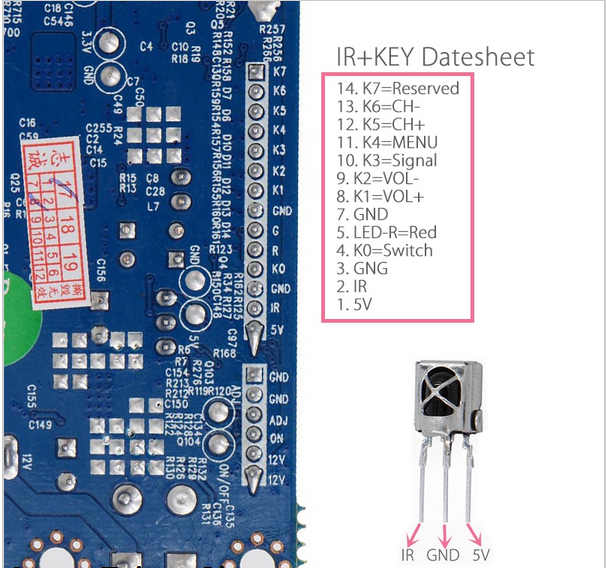

Another IR Connection for Other universal board.
Note:
If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download your required software and then extract it you will get the folder. Now copy the files to USB or load them with the programmer. For More Details about the download process, watch the video Click Here
VS.T56U11.2 Firmware All resolutions Free Download Here :
| S.NO. | RESOLUTION | DOWNLOAD LINK |
|---|---|---|
| 1 | VS.T56U11.2_1024x768_China | Download |
| 2 | VS.T56U11.2_1280x1024_China | Download |
| 3 | VS.T56U11.2_1366x768_China | Download |
| 4 | VS.T56U11.2_1440x900_China | Download |
| 5 | VS.T56U11.2_1600x900_China | Download |
| 6 | VS.T56U11.2_1680x1050_China | Download |
| 7 | VS.T56U11.2_1920x1080_China | Download |
| 8 | VS.T56U11.2_1920x1200_China | Download |
| 9 | VS.T56U11.2_640x480_LG | Download |
| 10 | VS.T56U11.2_800x600_LG | Download |
| 11 | VS.T56U11.2_1024x768_LG | Download |
| 12 | VS.T56U11.2_1280x768_LG | Download |
| 13 | VS.T56U11.2_1280x800_LG | Download |
| 14 | VS.T56U11.2_1280x1024_LG | Download |
| 15 | VS.T56U11.2_1366x768_LG | Download |
| 16 | VS.T56U11.2_1400x1050_LG | Download |
| 17 | VS.T56U11.2_1440x900_LG | Download |
| 18 | VS.T56U11.2_1600x900_LG | Download |
| 19 | VS.T56U11.2_1600x1200_LG | Download |
| 20 | VS.T56U11.2_1680x1050_LG | Download |
| 21 | VS.T56U11.2_1920x1080_LG | Download |
| 22 | VS.T56U11.2_1920x1200_LG | Download |
| 23 | VS.T56U11.2_640x480_Samsung | Download |
| 24 | VS.T56U11.2_800x600_Samsung | Download |
| 25 | VS.T56U11.2_1024x768_Samsung | Download |
| 26 | VS.T56U11.2_1280x768_Samsung | Download |
| 27 | VS.T56U11.2_1280x800_Samsung | Download |
| 28 | VS.T56U11.2_1280x1024_Samsung | Download |
| 29 | VS.T56U11.2_1366x768_Samsung | Download |
| 30 | VS.T56U11.2_1400x1050_Samsung | Download |
| 31 | VS.T56U11.2_1440x900_Samsung | Download |
| 32 | VS.T56U11.2_1600x900_Samsung | Download |
| 33 | VS.T56U11.2_1600x1200_Samsung | Download |
| 34 | VS.T56U11.2_1680x1050_Samsung | Download |
| 35 | VS.T56U11.2_1920x1080_Samsung | Download |
| 36 | VS.T56U11.2_1920x1200_Samsung | Download |
| 37 | VS.T56U11.2_640x480_Sony | Download |
| 38 | VS.T56U11.2_800x600_Sony | Download |
| 39 | VS.T56U11.2_1024x768_Sony | Download |
| 40 | VS.T56U11.2_1280x768_Sony | Download |
| 41 | VS.T56U11.2_1280x800_Sony | Download |
| 42 | VS.T56U11.2_1280x1024_Sony | Download |
| 43 | VS.T56U11.2_1366x768_Sony | Download |
| 44 | VS.T56U11.2_1400x1050_Sony | Download |
| 45 | VS.T56U11.2_1440x900_Sony | Download |
| 46 | VS.T56U11.2_1600x900_Sony | Download |
| 47 | VS.T56U11.2_1600x1200_Sony | Download |
| 48 | VS.T56U11.2_1680x1050_Sony | Download |
| 49 | VS.T56U11.2_1920x1080_Sony | Download |
| 50 | VS.T56U11.2_1920x1200_Sony | Download |
| 51 | T56U11.2 Multi Resolution Software | Download |
| 52 | T56U11_100Hz_HD_LG | Download |
| 53 | T56U11_100Hz_HD_Samsung | Download |
| 54 | T56U11_100Hz_HD_Sony | Download |
| 55 | T56U11_CLAA150XG_XGA_LG | Download |
| 56 | T56U11_CLAA150XG_XGA_Samsung | Download |
| 57 | T56U11_CLAA150XG_XGA_Sony | Download |
