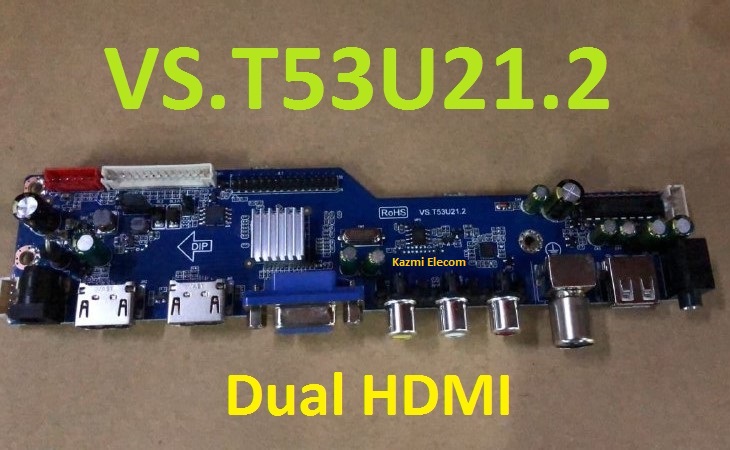

VS.T53U21.2 Universal LCD/LED Controller Board
VS.T53U21.2 New Universal LCD/LED Driver Board with Dual HDMI Input interface and Inbuild Logo and Software.
Basic Info:
Model No. VS.T53U21.2
Main Chipset: TSUMV53RUU-Z1
Tuner: R842
Display Format: up to 1920×1200
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: Dual HDMI, VGA, AV, USB, RF TV interface and Earphone Out Jack
Audio O/P Power: 2 x 5 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software into the FAT32 USB Disk
- Plug the U disk into the Mainboard USB port of the LCD/LED TV
- Switch ON the power and Wait until even the IR indicator led stops flashing
- Done. Unplug the U-disk (It will take max 1 min to upgrade firmware)
How to Capture New Logo:
1. Select USB
2. Select the image you want to capture
3. pause the image
4. press “2008” on the Remote Control
5. Select the Option “Capture LOGO”
6. Select “Yes Capture”
Factory Service Mode:
INPUT 2580
MENU 1147
Resolution Code: Click Here
Note:
If you are new and do not have enough knowledge of loading or installing software/firmware or dumping files then read here first.
How to Download:
Download your required software and then extract it you will get the folder. Now copy the files to USB or load them with Programmer. For More Detail about the download process, watch the video Click Here
VS.T53U21.2 Firmware All resolutions Free Download :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | VS.T53U21.2_1366x768_LG | Download |
| 2 | VS.T53U21.2_1366x768_Samsung | Download |
| 3 | VS.T53U21.2_1366x768_Sony | Download |
| 4 | VS.T53U21.2_1920x1080_LG | Download |
| 5 | VS.T53U21.2_1920x1080_Samsung | Download |
| 6 | VS.T53U21.2_1920x1080_Sony | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
