VS.SP35822.2 Firmware Free Download

VS.SP35822.2 Android Smart Board

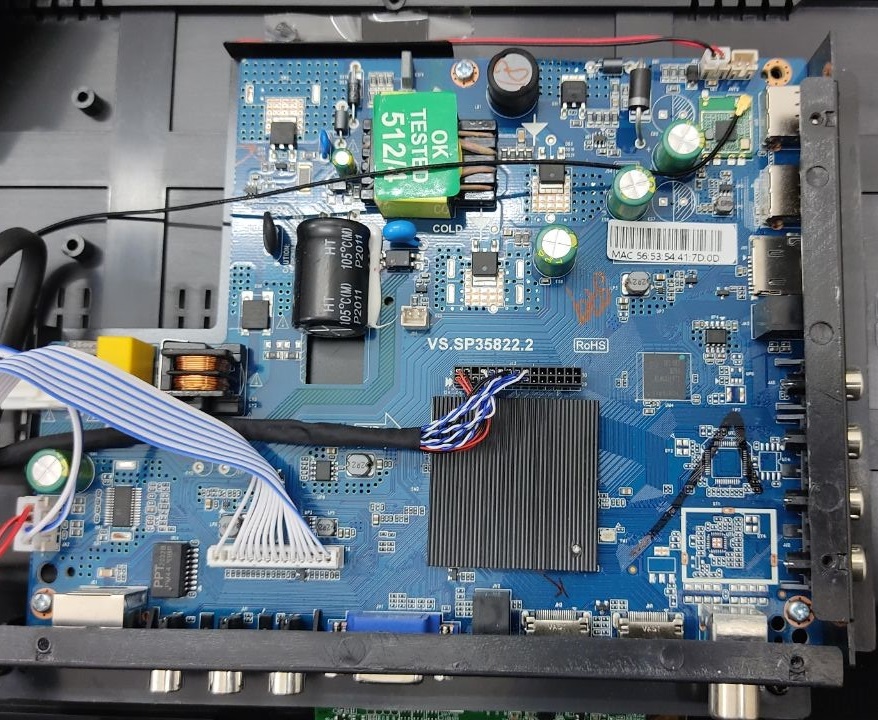

VS.SP35822.2 is an intelligent  Network Smart TV Driver Board specially designed as a Universal LCD LED Controller Board For Android WI-FI ATV functions. This is suitable for all HD LCD/LED panels. This Intelligent Network TV board has a special feature of Android and ROM storage capacity. VS-SP35822-2 Supports RJ45 network signal, USB 2.0, HDMI 1.4, and TV.VGA, AV input, and earphone output. VS_SP35822_2 Built a full-featured browser and support for HTML5 web page format, providing the fun of browsing the web and watching a video at random.

It also supports surfing the internet with a wireless mouse and keyboard. VS.SP35822.2 is a three-in-one driver motherboard which is also called the combo board. VS.SP35822.2 firmware file is given below for the technician’s support.

General Specifications:

Brand/Mark: Video Space

Main Board Model: VS.SP35822.2

Main Chip: MSD6A358AT

OSD Language: Chinese, English, Espoal, French, Vietnamese

TV Signal: ATV

Input Interface: PC / VGA / HDMI / TV / Network / USB / TF / Dual AV

Panel Voltage: 5V/12V

Screen Supported: 32-65 inch

Resolution Supported: 1920×1080

OS: Android 8.0

CPU: 1.5GHz (ARM Cortex A7 double Core CPU)

GPU: Multi-core Mali -400MP2

Backlight: 65-100v 45W-65W

Ram: 512M/1Gb

Rom: 4Gb/8Gb eMMC

Flip/Mirror Mode: Yes

Display/Boot Logo: Yes

Power Input: 220v AC

Power Rating: 12V/4Amp DC

Service Code:

Input/Source 208

Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download:

Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

How to Load Software:

1. Transfer the required resolution file to the USB Disk
2. Plugin the USB Disk into the Main Board
3. Power on the board
4. Wait until the red light starts flashing
5. Note: Do Not Cut the power during the Flash burning process

VS.SP35822.2 firmware below for free download:

• VS-SP35822-2_1366x768_512M_MSD6A358AT.part1
• VS-SP35822-2_1366x768_512M_MSD6A358AT.part2
