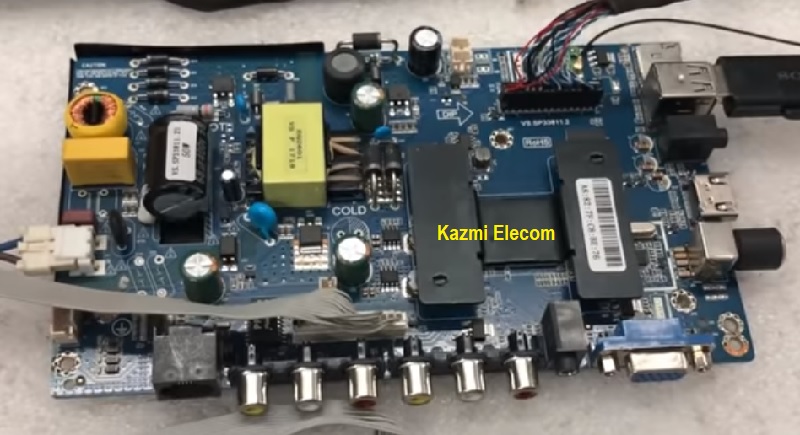

VS.SP33811.2 Android Bluetooth Board
VS.SP33811.2 is a Smart Wireless Network TV Driver Board specially designed as a Universal LCD LED Controller Board For Android WI-FI ATV functions with Bluetooth feature. This is suitable for all HD LCD/LED panels. This Intelligent Network TV board has a special feature of Android and ROM storage capacity. VS-SP33811-2 Supports RJ45 network signal, USB 2.0, HDMI 1.4, and TV.VGA, AV input, and earphone output.
VS_SP33811_2 Built a full-featured browser and support for HTML5 web page format, providing the fun of browsing the web and watching a video at random. It also supports surfing the internet with a wireless mouse and keyboard.
General Specifications:
Brand/Mark: LED TV Main Board (Bluetooth Android WIFI Network Drive Board)
Main Board Model: VS.SP33811.2
OSD Language: Chinese, English, Espoal, French, Vietnamese
TV Signal: ATV
Input Interface: PC / VGA / HDMI / TV / Network / USB / TF / Dual AV
Panel Voltage: 5V/12V
Screen Supported: 17-65 inch
Resolution Supported: 1920×1080
OS: Android 4.4
CPU: 1.5GHz (ARM Cortex A7 double Core CPU)
GPU: Multi-core Mali -400MP2
Ram: 512Mb/1Gb
Rom: 4 Gb eMMC
Flip/Mirror Mode: Yes
Bluetooth: Yes
Display/Boot Logo: Yes
Power Input: 220v AC
Power Rating: 12V/4Amp DC
Service Code:
Input/Source 208
How to Load Software:
- Transfer the required resolution file into USB Disk
- Plugin the USB Disk into Main Board
- Power on the board
- Wait until the red light starts flashing
- Note: Do Not Cut the power during Flash burning process
Note: The following VS.SP33811.2 software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download VS.SP33811.2 Firmware File:
Download all parts of the following VS.SP33811.2 firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
VS.SP33811.2 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | VS.SP33811.2_1366x768_USB.part01 | Download |
| VS.SP33811.2_1366x768_USB.part02 | Download | |
| VS.SP33811.2_1366x768_USB.part03 | Download | |
| VS.SP33811.2_1366x768_USB.part04 | Download | |
| VS.SP33811.2_1366x768_USB.part05 | Download | |
| 2 | VS.SP33811.2_1920x1080_USB.part01 | Download |
| VS.SP33811.2_1920x1080_USB.part02 | Download | |
| VS.SP33811.2_1920x1080_USB.part03 | Download | |
| VS.SP33811.2_1920x1080_USB.part04 | Download | |
| VS.SP33811.2_1920x1080_USB.part05 | Download |
