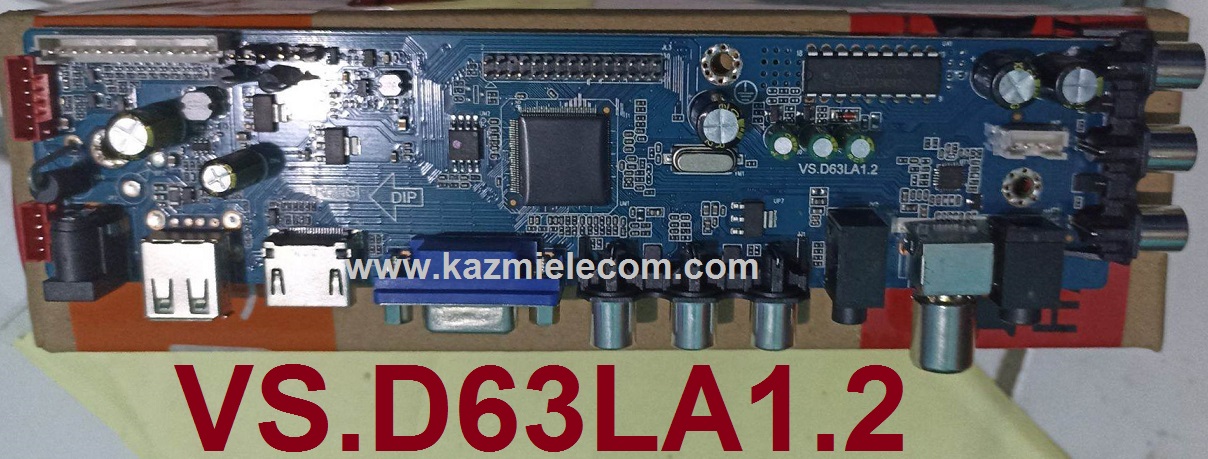

VS.D63LA1.2 Universal DTV Board
VS.D63LA1.2 is a universal LCD/LED Panel Screens Driver Board. It can support 14-32″ panel screens. It is DVB-T/DVB-T2 Led TV Board.
Basic Info:
Model No. VS-D63LA1-2
Main Chipset: MSD3663
Firmware Name: VS_3463T_64M.bin
Display Format: up to 1080
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.25W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software into FAT32 USB Disk
- Plugin the U disk into the Mainboard USB port of the LCD/LED TV
- Switch ON the power and Wait until even the IR indicator led stops flashing
- Done. Unplug the U-disk (It will take a max 1 min to upgrade firmware)
Factory Service Mode:
Input+
Note:
The following given firmware files are USB bootable. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download your required software and then extract it you will get the folder. Now copy the files to USB or load them with Programmer. For More Detail about the download process, watch the video Click Here
