VS.D63L11.2 Firmware Free Download

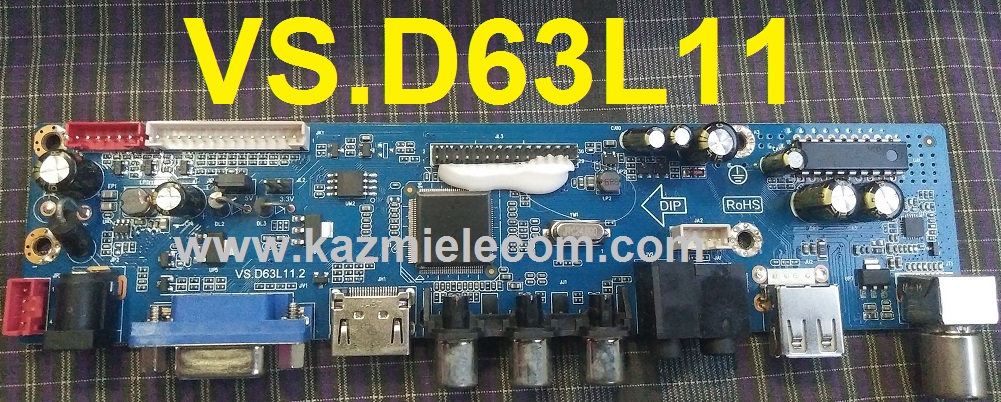

VS.D63L11.2 Universal DTV Board

VS.D63L11.2 is a universal LCD/LED Panel Screens Driver Board. It can support 14-32″ panel screens. It is DVB-T/DVB-T2 Led TV Board.

Download Here

Basic Info:

Model No. VS-D63L11-2

Main Chipset: MSD3663LUA-Z1

Firmware Name: VS_3463T_64M.bin

Display Format: up to 1080

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.25W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

Copy the Required Firmware/software into FAT32 USB Disk
Plugin the U disk into the Mainboard USB port of the LCD/LED TV
Switch ON the power and Wait until even the IR indicator led stops flashing
Done. Unplug the U-disk (It will take a max 1 min to upgrade firmware)

Factory Service Mode:

Input+

Note:

The following given firmware files are USB bootable. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download your required software and then extract it you will get the folder. Now copy the files to USB or load them with Programmer. For More details about the download process, watch the video Click Here

VS.D63L11.2 Firmware Free Download:
