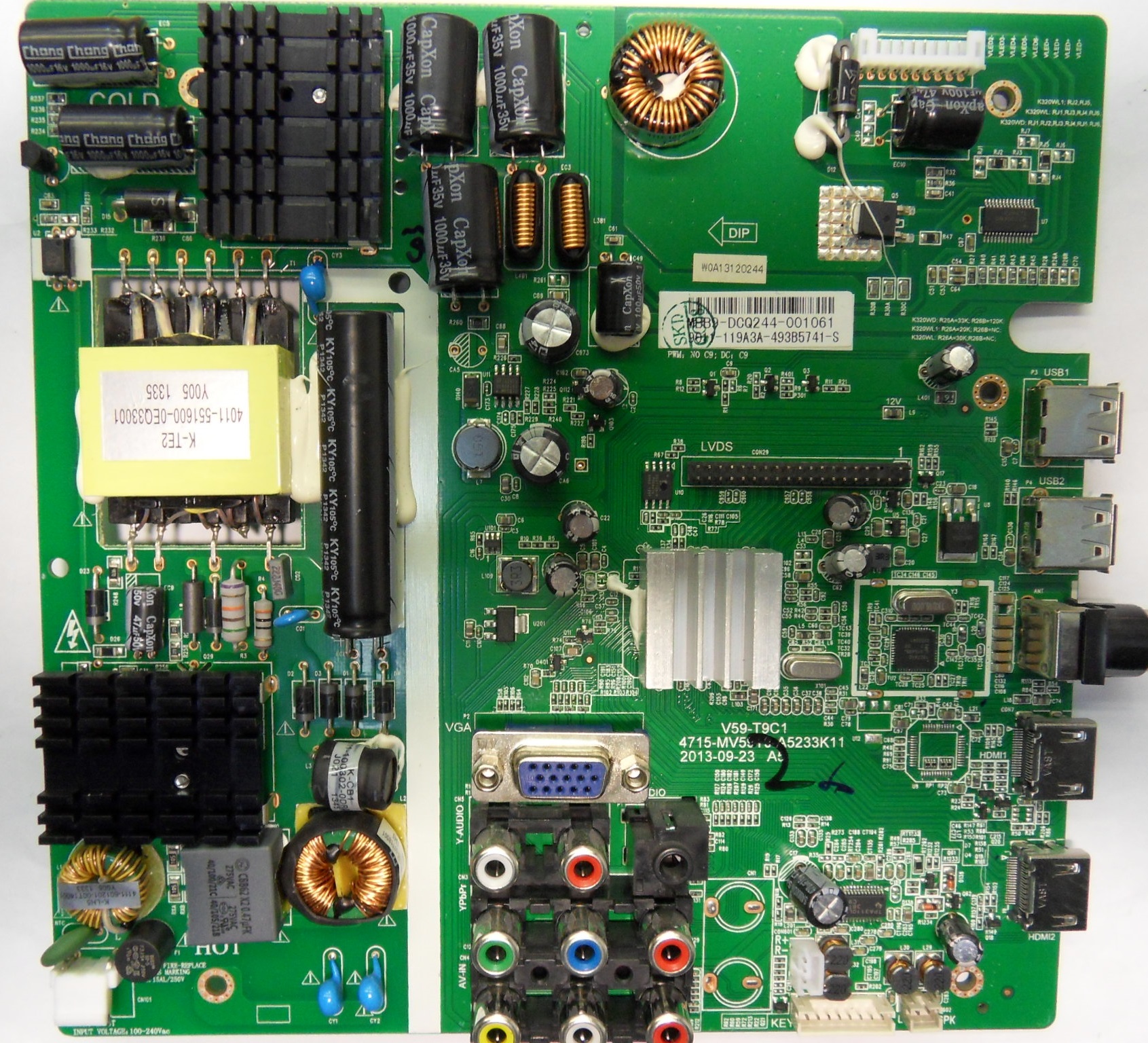

V59-T9C1 LED TV Driver Board
V59-T9C1 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 24-inch to 42-Inches LED panels which a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. TUSMV59.T9C1 has multiple HDMI ports that support 1.4 and its HDCP support 1.1. TSUMV59_T4C1 is compatible with Non-HD and FHD LCD/LED panel screens. V59.T9C1 is widescreen-supported and also has a multi-language option. V59 T9C1 has its special feature of Dual AV extendable.V59-T9C1 software collection is given below for free download.
General Specifications:
Board Make: China
Board Model: V59-T9C1
Main Chipset: TSUMV59
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V DC (Default 12V)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC220 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump
Note: Following the V59.T9C1 firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download V59-T9C1 Firmware File:
Download your required file of the following V59.T9C1 firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
V59-T9C1 Firmware Collection Free Download Here :
S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
---|---|---|
1 | V59-T9C1_1366x768_Changhong_Backup_Dump | Download |
2 | V59-T9C1_1366x768_Croma_Backup_Dump | Download |
3 | V59-T9C1_1366x768_Ecostar_Backup_Dump | Download |
4 | V59-T9C1_1366x768_Haier_Backup_Dump | Download |
5 | V59-T9C1_1366x768_Maxipower_Backup_Dump | Download |
6 | V59-T9C1_1366x768_Philips_Backup_Dump | Download |
7 | V59-T9C1_1366x768_TCL_Backup_Dump | Download |
8 | V59-T9C1_1366x768_Telefunken_Backup_Dump | Download |
9 | V59-T9C1_1366x768_Thomson_Backup_Dump | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
por favor tendra un firmware para v59-t9c1 4715-mv59t9-a5233k11 p/n:k320wd6 con idioma español
no idea about the language. check it by installing firmware
