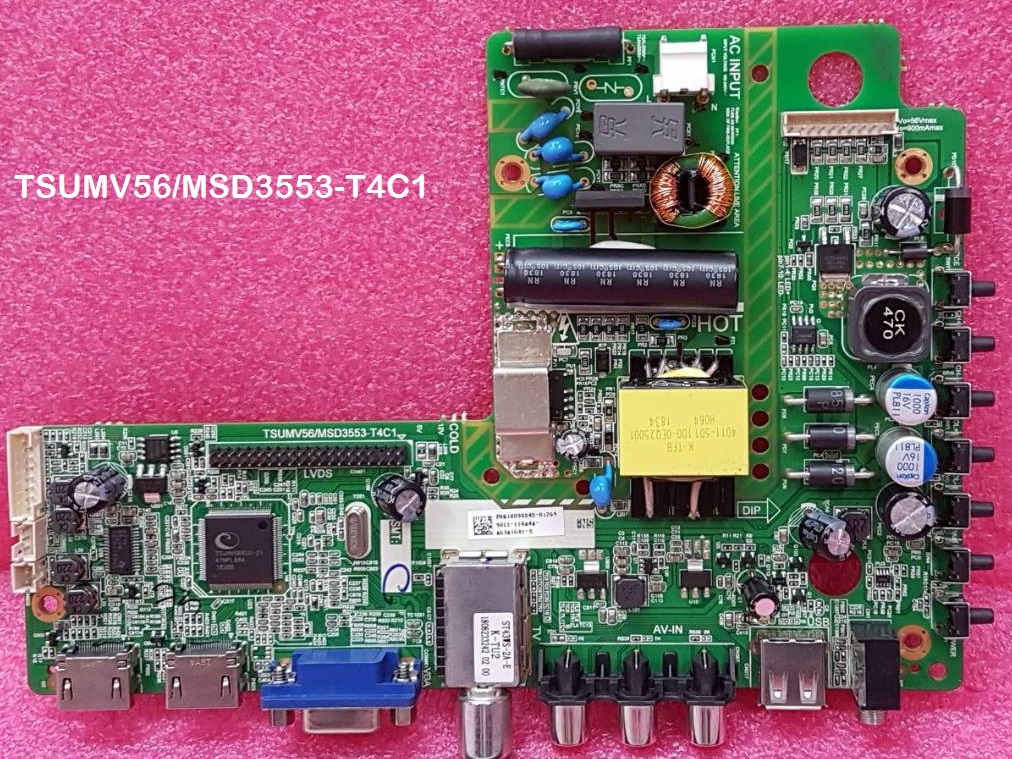

TSUMV56/MSD3553-T4C1 LED TV Board
TSUMV56-MSD3553-T4C1 is a universal analog LED TV driver board that is suitable for multiple LCD/LED screen panels. It can support 24-inch to 42-Inches LED panels which have a resolution is up to 1920×1080. The software can be upgraded by its USB interface and users can also play Multimedia files. TUSMV59.T8C1 has multiple HDMI ports support 1.4 and its HDCP support 1.1. TSUMV56_MSD3553_T4C1 is compatible with Non-HD and FHD LCD/LED panel screens.
TSUMV56/MSD3553-T4C1 is widescreen supported and also has a multi-language option. TSUMV56-MSD3553-T4C1 has its special feature of AV. The TSUMV56-MSD3553-T4C1 firmware, software, and bin file collection are shared below for repairing LED TVs by technicians.
General Specifications:
Board Make: China

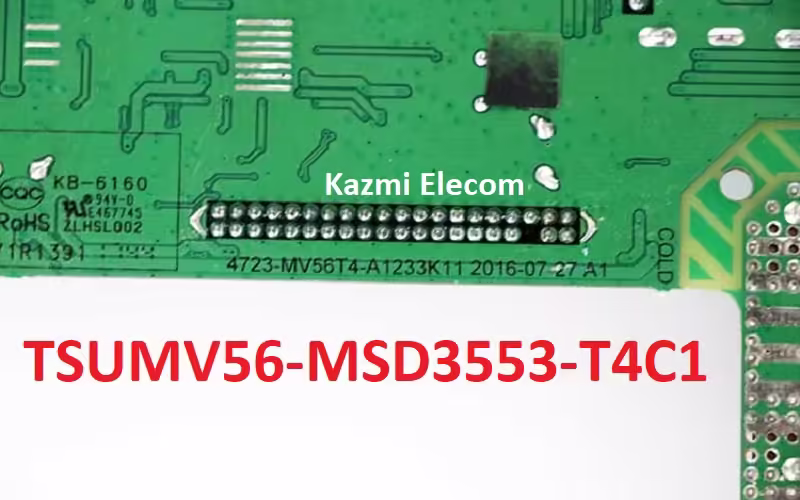

Board Model: TSUMV56/MSD3553-T4C1, 4723-MV56T4-A1233K11
Main Chipset: TSUMV56
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V DC (Default 12V)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC220 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump
Caution:
All the pictures and specification details related to TSUMV56-MSD3553-T4C1 in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.
Pros:
There are many advantages to installing the given TSUMV56-MSD3553-T4C1 USB software or backup dump file. A few benefits are described below:
- The dead board can be recovered and operational by loading the given software backup file
- Remote and Logo may change at your own choice to satisfy the customer
- Money saving instead of changing the mainboard
- Time-saving instead of arranging a new board
- Customer satisfaction to do an urgent job
- Skill and confidence improvement
Cons:
There may be some disadvantages to installing the given TSUMV56-MSD3553-T4C1 USB software or a backup dump file. But it depends on the technician or user as per his understanding. A few drawbacks are described below:
- The working board may go to the standby position
- Remote Control may not work and the Logo may change by writing the given software
- Panel screen parameters may be changed
TSUMV56-MSD3553-T4C1 Version Upgrade:
Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software is malfunctioning due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.
TSUMV56-MSD3553-T4C1 Board Replacement:
If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.
Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download TSUMV56-MSD3553-T4C1 Firmware File:
Download your required file of the following TSUMV56-MSD3553-T4C1 firmware and then extract it you will get the folder. Now you can write the file with a programming tool. For more details about the download, process watch the video Click Here
TSUMV56-MSD3553-T4C1 Firmware Collection Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TSUMV56-MSD3553-T4C1_1366x768_Ecostar_Dump | Download |
| 2 | TSUMV56-MSD3553-T4C1_1366x768_Orient_Dump | Download |
| 3 | TSUMV56-MSD3553-T4C1_1366x768_Toshiba_Dump | Download |
| 4 | TSUMV56-MSD3553-T4C1_1920x1080_Ecostar_Dump | Download |
| 5 | TSUMV56-MSD3553-T4C1_1920x1080_Geant_Dump | Download |
| 6 | TSUMV56-MSD3553-T4C1_1366X768_Mirror_Dump | Download |
| 7 | TSUMV56-MSD3553-T4C1_1366X768_Normal_Dump | Download |
