TPD.T960X.PC792 Firmware Free Download

TPD.T960X.PC792 Smart LED TV Board

TPD.T960X.PC792 is an Ultra High Definition Android Smart LED TV board. Its maximum supported resolution is 4K (3840×2160) 2160 Pixels Ultra HD. This board is a three-in-one board that is also called a combo board. The main input power supply (100-240V 50/60Hz) circuit module is built with a cable TV tuner and LED backlight inverter driver circuit on a single piece of printed circuit board (PCB). AmLogic makes the main processor (64-bit Quad-Core CPU) used in this mainboard. The RAM capacity of this board is 1/2 GB and the ROM capacity is 8 GB (EMMC Flash). This board is suitable for 43-inch UHD screen panels. The refresh rate is 60 HZ.

Download Here

TPD.T960X.PC792 board has multiple ports such as an Ethernet port (RJ45) for wired internet connectivity to get smooth and fast internet response. It has SPDIF and Headphones Output ports. This board has three (triple) HDMI input interface ports for the user’s convenience to connect multiple full HD digital devices with this board at the same time such as gaming consoles, Set-top boxes, Blu-ray media players, etc. It has also dual USB input ports for connecting external hard disk drives and playing multimedia files. This board has a component input interface to connect analog devices. Total Sound output power is 20 watts with dual speaker.

The special features embedded into the software of this board are integrated WiFi, Bluetooth 4.2 connectivity, Google Voice Assistant, Kids Mode With Parental Lock, Universal Search, Language Universe, User Centre, Built-In Speaker, Chromecast, etc.

TPD.T960X.PC792 General Information:

Board Model: TPD.T960X.PC792

Main Chipset: AMLOGIC T960

CPU: Quad-Core ARM Cortex-A53 64-bit

GPU: Mali-450 MP3

Android Version: Android 9.0

Resolution: 3840×2160

Audio Power: 2x10W (20 watt 8 ohm)

Backlight Volt: 90-102V

Backlight Current: 570mA

Backlight Power: 180W2

USB Ports: 2

HDMI Ports: 3

CI: No

Component: Yes

RJ45: Yes

Tuner: NTSC/PAL

Wifi: Yes

Mira-Cast: Yes

Memory (RAM): 1/2GB DRAM

Storage (ROM): 8 GB EMMC Flash

Power Rating: 100V~240V 50Hz

Power Consumption: 105Watt

Firmware Name:

Firmware Type: EMMC Backup Dump

Product User: MI

TPD.T960X.PC792 Technical Specifications:

Resolution 4K UHD 2160P 3840×2160
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound there is / there is
Matrix type LED
Refresh rate 60 Hz
Processor frame 64-bit ARM Cortex-A53 Quad-Core
GPU Mali-450 MP3
OS version Android 9.0
RAM (DRAM) 1GB
ROM (Flash) 8GB
WIFI 2.4GHz / 5GHz
HDMI 2.0 (HDCP 2.2) 2
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
Game mode Yes
Bluetooth SBC / 4.2
Sleep Timer Yes
HDMI quick switch Yes
DLNA 1.5 Yes
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV PAL/NTSC
Sound power 10w+10w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Remote control t
Social Yes
Web browser Yes
Processor Quad Core
Smart Home TCL Home, Google Home
WiFi sharing Chromecast & T-cast
AI Google Assistant Google Assistant Ready
SmartTV AndroidTV
HbbTV 2.0.2

How to Write TPD.T960X.PC792 EMMC Backup:

Download the given TPD.T960X.PC792 EMMC backup is shared in this post below

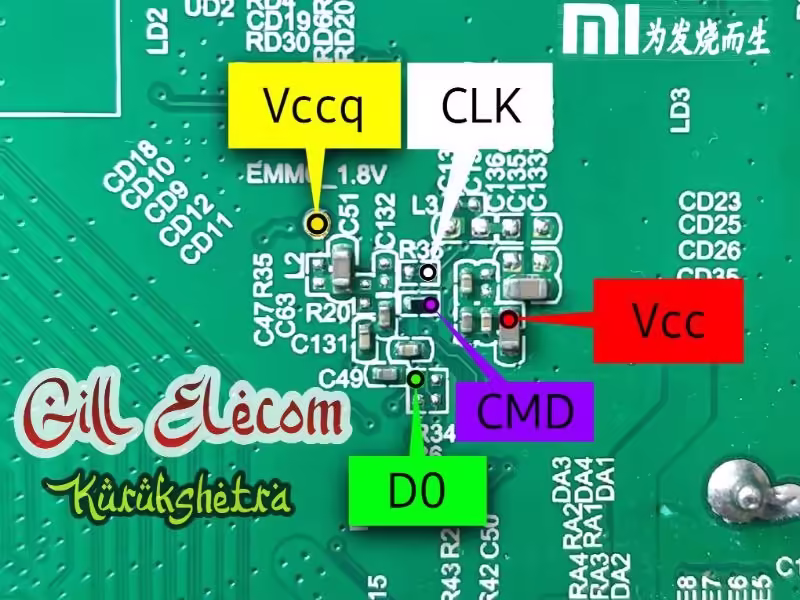

Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following TPD.T960X.PC792 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
