TPD.RT2841.PB775 Firmware Free Download

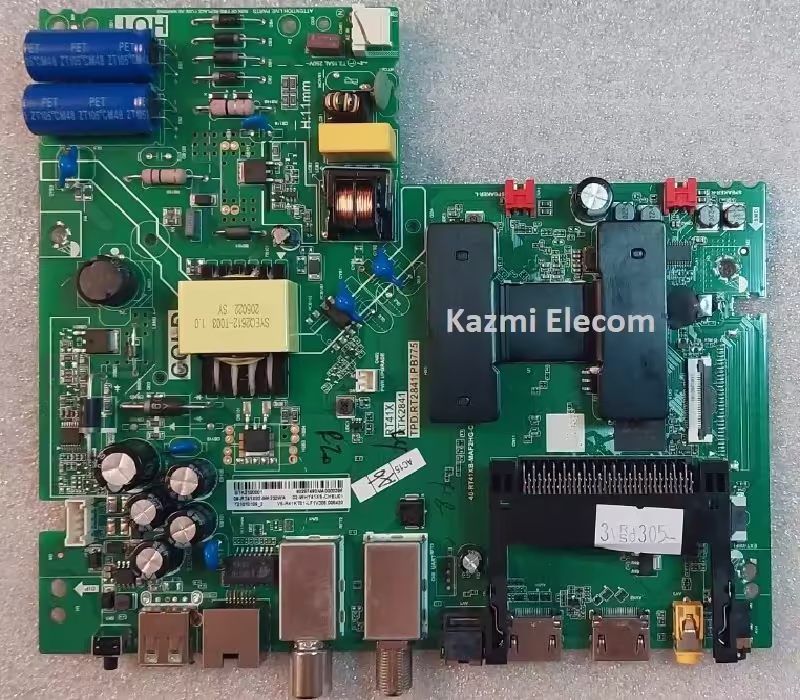

TPD.RT2841.PB775 Smart LED TV Board

TPD.RT2841.PB775 is a smart android FHD motherboard for LCD and LED TVs. Its maximum supported screen resolution is 1920×1080 Full High Definition 1080 Pixels. This is a Combo three-in-one motherboard that is built with the main power input circuit and the backlight inverter driver circuit with a cable TV tuner on a single piece of printed circuit board (PCB). This board has 8GB storage Nand Flash memory (EMMC). Its processing speed is very fast and its response time is excellent. The graphics quality is awesome and the sound quality is very good with a dual stereo speaker system of 16 watts (8*2).

Download Here

TPD.RT2841.PB775 has a Linux-based operating system. This board is smart and Android. The refresh rate of this board is 60 Hz. This board has a dual TV reception system. One is an Analog TV signal reception (PAL/SECAM/NTSC) and the other is a Digital TV signal (DVB-T2/C/S2) reception system. This board has some featured apps built into its software such as Netflix, YouTube, Google Play, Google Assistant, etc. It can also support the Voice function by remote control. For user convenience, this board has all the connectivity interfaces such as HDMI, USB, SPDIF, Ethernet (RJ45), Composite, etc.

TPD.RT2841.PB775 General Information:

Board Model: RT41X RTK2841 TPD.RT2841.PB775

Main Chipset: Realtek

CPU: Quad-Core ARM Cortex-A53

GPU: Dual-Core G52MP2

Android Version:

Resolution: 1920×1080

Audio Power: 2x8W (16 watt 8 ohm)

Backlight Current: NA

Backlight Power: NA

USB Ports: 1

HDMI Ports: 2

CI: Yes

Component: Yes

RJ45: Yes

Analog Tuner: PAL/SECAM/NTSC (AV) BG/DK/I/LL

Digital Tuner: DVB-T2/C/S2

Wifi: Yes

Mira-Cast: Yes

Memory (RAM): 1GB DRAM

Storage (ROM): 8 GB EMMC Flash

Power Rating: 220V~240V 50Hz

Power Consumption: 75Watt

Firmware Name:

Firmware Type: EMMC Backup Dump

Product User: TCL

TPD.RT2841.PB775 Technical Specifications:

Resolution 1920×1080 Full HD
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound there is / there is
Matrix type LED
Refresh rate 60 Hz
Processor frame ARM Cortex-A53/1, 5GHz/Quad core
GPU G52MP2/Dual core
OS version Android
RAM (DRAM) 1GB
ROM (Flash) 8GB
WIFI 2T2R
HDMI 2.0 (HDCP 2.2) 2
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
Game mode Yes
Bluetooth SBC / 5.0
Sleep Timer Yes
HDMI quick switch Yes
DLNA 1.5 Yes
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV PAL/SECAM/NTSC (AV) BG/DK/I/LL
DTV DVB-T2/C/S2
Sound power 8w+8w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Remote control type RC802NU1
Social Yes
Web browser Yes
Processor Quad Core
Smart Home TCL Home, Google Home
WiFi sharing Chromecast & T-cast
AI Google Assistant Google Assistant Ready
SmartTV AndroidTV (29 languages)
HbbTV 2.0.2

How to Write TPD.RT2841.PB775 EMMC Backup:

Download the given TPD.RT2841.PB775 EMMC backup shared in this post below
Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following TPD.RT2841.PB775 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
