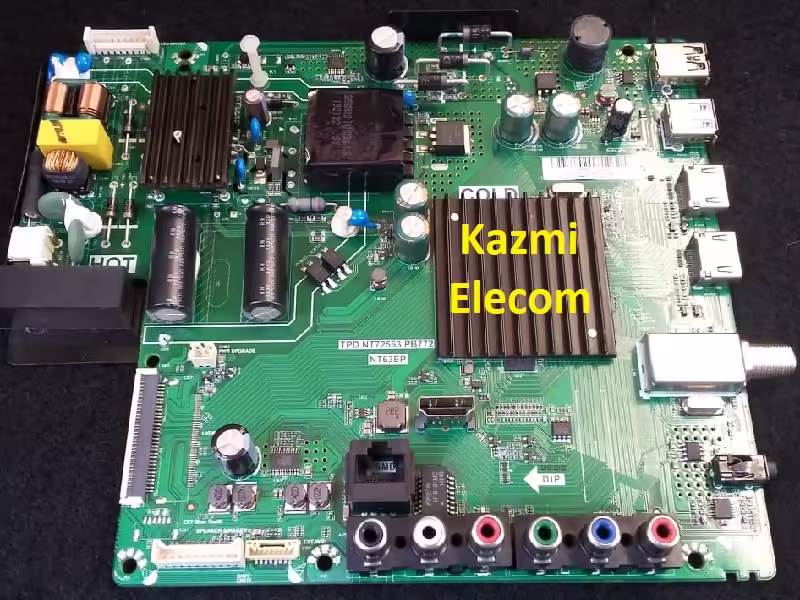

TPD.NT72563.PB772 LED TV Board

TPD.NT72563.PB772 is a smart Android LED TV board. Its maximum supported screen resolution is 1920×1080 Full HD 1080P. It has several input-output user connectivity interfaces such as a Headphones output jack of 3.5mm to amplify the audio output. For connecting Analog devices, it has an RCA (Component) input interface. For connecting digital Full HD devices it has three HDMI ports by which users can connect several full HD devices such as Blu-ray players, Playstations, Gaming consoles, Media Players, etc. It has a dual USB input interface for connecting hard disk drives, and other USB devices and for upgrading software purposes.

Download Here

TPD.NT72563.PB772 is a three-in-one Android smart LED TV motherboard. It is also called a Combo network LCD LED TV driver board. It is built with three major parts on a single PCB: the cable TV tuner, the LED backlight inverter driver controller circuit module, and the main power input supply module. This board has a 48-pin LVDS connector interface for LCD LED TV Screen Panels. It has 4 GB storage memory capacity. The main processor is a quad-core made by Novatek (NT72563MBG-TL). The graphics and sound quality of this board is very excellent.

TPD.NT72563.PB772 General Information:

Board Model: TPD.NT72563.PB772

Main Chipset: NOVATEK NT72563MBG-TL

CPU: Quad-Core ARM Cortex-A53

GPU: Dual-Core G52MP2

Android Version:

Resolution: 1920×1080

Audio Power: 2x8W (16 watt 8 ohm)

Backlight Current: NA

Backlight Power: NA

USB Ports: 2

HDMI Ports: 3

CI: No

Component: Yes

RJ45: Yes

Analog Tuner: PAL/SECAM/NTSC (AV) BG/DK/I/LL

Digital Tuner: DVB-T2/C/S2

Wifi: Yes

Mira-Cast: Yes

Memory (RAM): 4GB DRAM

Storage (ROM): 4 GB EMMC Flash

Power Rating: 220V~240V 50Hz

Power Consumption: 75Watt

Firmware Name: Update.img

Firmware Type: EMMC Backup Dump

Product User: TCL

TPD.NT72563.PB772 Technical Specifications:

Resolution 1920×1080 Full HD
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound there is / there is
Matrix type LED
Refresh rate 60 Hz
Processor frame ARM Cortex-A53/1, 5GHz/Quad core
GPU G52MP2/Dual core
OS version Android 9
RAM (DRAM) 4GB
ROM (Flash) 4GB
WIFI 2T2R
HDMI 2.0 (HDCP 2.2) 3
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
Game mode Yes
Bluetooth SBC / 5.0
Sleep Timer Yes
HDMI quick switch Yes
DLNA 1.5 Yes
USB Multimedia Browser Video up to 1080P: AVI, WMV, MP4, MPG, TS, MKV, OGM, Audio: WMA, MP3, Pictures: JPG, PNG, BMP, Text subtitles
OSD Languages 29 Albanian, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Macedonian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV PAL/SECAM/NTSC (AV) BG/DK/I/LL
DTV DVB-T2/C/S2
Sound power 8w+8w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Remote control type RC802NU1
Social Yes
Web browser Yes
Processor Quad Core
Smart Home TCL Home, Google Home
WiFi sharing Chromecast & T-cast
AI Google Assistant Google Assistant Ready
SmartTV AndroidTV (29 languages)
HbbTV 2.0.2

How to Write TPD.NT72563.PB772 EMMC Backup:

Download the given TPD.NT72563.PB772 EMMC backup shared in this post below
Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

How to Install USB Bootable Firmware:

Download the required TPD.NT72563.PB772 USB bootable firmware.
Extract the zip files to get the folder.
Transfer the firmware (Update.zip) file to the empty FAT 32 formatted USB disk
Switch OFF the TV/Board from the main power
Insert the pen drive into the USB port 1 of the board
Keep pressing the power button (Touch button) of keypad and switch on the TV
The installation progress bar will display on the screen. Now release the power button
Wait till completion. Done

Note: The following TPD.NT72563.PB772 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
