TPD.MT9216.PB766 Software Free Download

TPD.MT9216.PB766 Smart Android Board

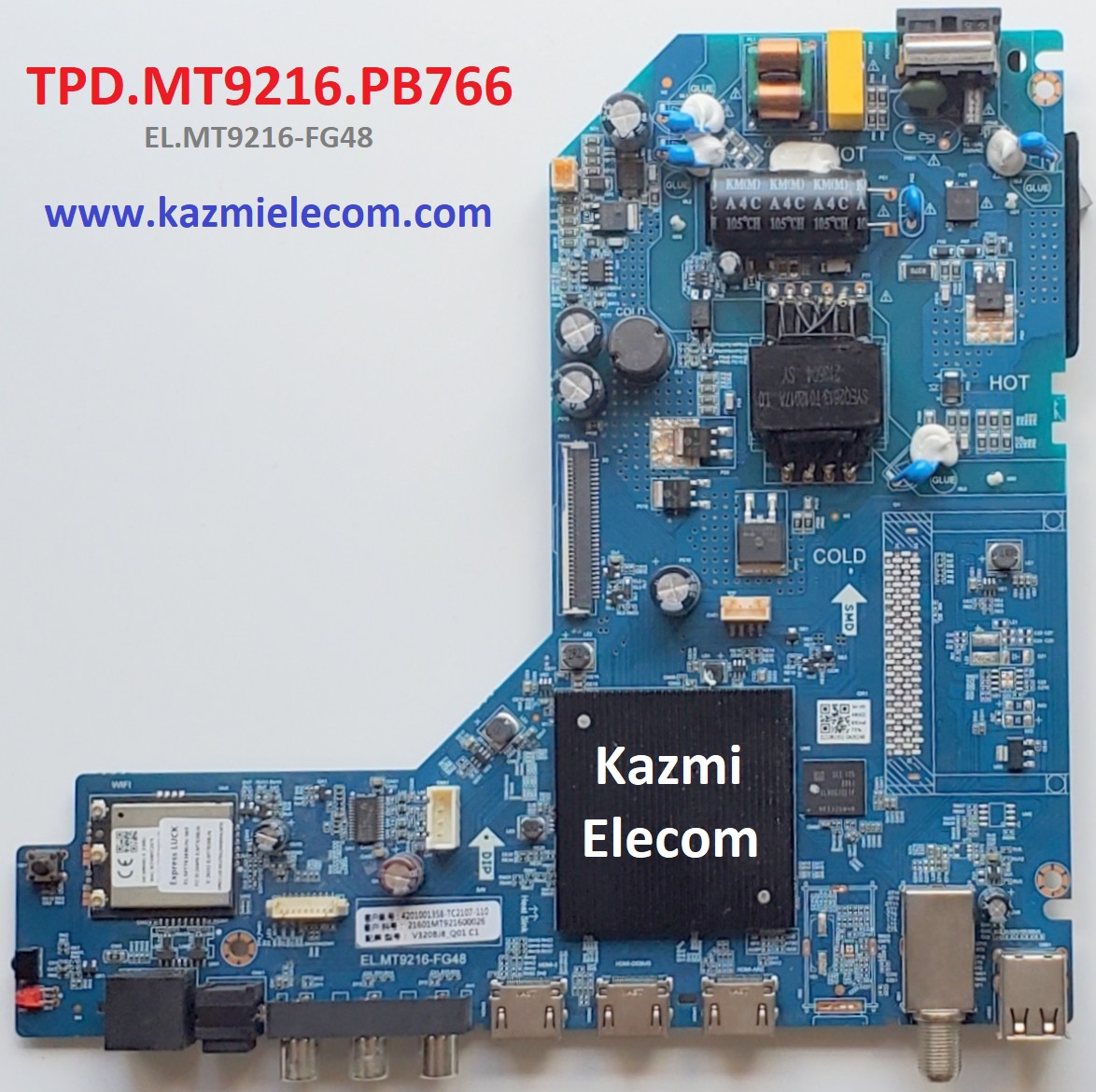

TPD.MT9216.PB766 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. TPD_MT9216_PB766 has a powerful Wi-Fi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TPD MT9216 PB766 Smart Board has multiple ports of A/V, SCART, USB interface Port, and Dual HDMI ports as well. TPD-MT9216-PB766 has a LAN/RJ45 Connector interface port also for the wired internet network.

TPD.MT9216.PB766 is a Combo Network Triple play board. The Graphics and Sound quality of the TPD-MT9216-PB766 Android board are very good and the Response rate is very efficient. TPD_MT9216-PB766 China’s smart network board can support up to 32-inch to 43-inch LED Panels. TPD.MT9216.PB766 firmware file is available for the technician’s support.

General Specifications:

Brand/Mark: Main Board (Android WIFI Network Drive Smart Board)

Main Board: TPD.MT9216.PB766 (T)/EL.MT9216-FG48

Main Chipset: MT9216/MT9256

Operating System: Android 11.0

CPU: ARM Cortex-A53 quad-core 804MHz

GPU: Mali-450 Dual-Core 432MHZ

RAM: 1Gb

ROM: 8Gb

Back Light: 48w 600mA

Resolution: up to 1920×1080

Screen Size supported: 32 to 43 Inch

Audio Output power: 2x8W

Video System: PAL, SECAM, NTSC

DTV Transmission: DVB-T/C/T2/S/S2

Input Voltage: 100-240V AC

Firmware Name: allupgrade516_8GB_1GB_ref75.bin

Firmware Type: USB Updateable Firmware

Product User: Magic

Note: The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware Files:

Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

TPD.MT9216.PB756 firmware file for free download:

• TPD-MT9216-PB766 1366×768-1G-8G-MAGIC.part1
• TPD-MT9216-PB766 1366×768-1G-8G-MAGIC.part2
• TPD-MT9216-PB766 1366×768-1G-8G-MAGIC.part3

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
