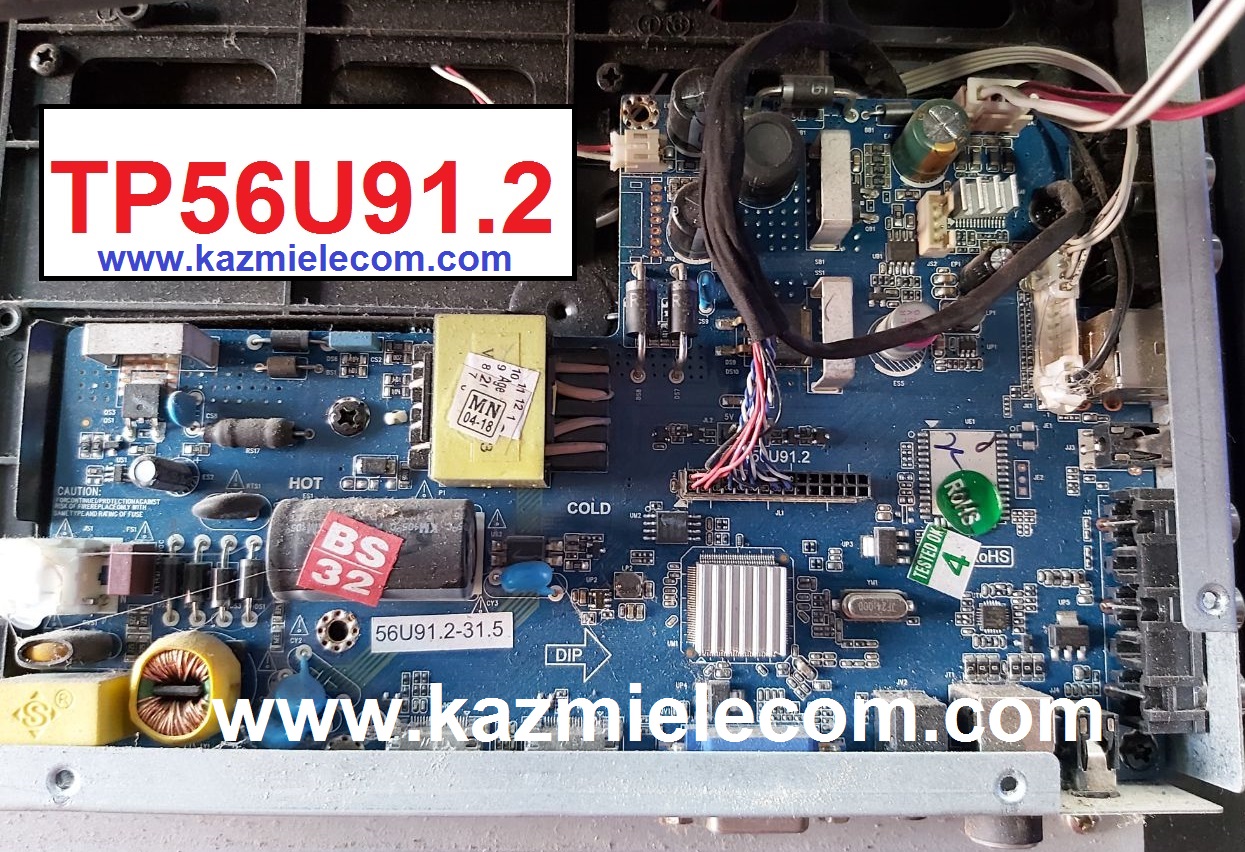

TP56U91.2 LED TV Board
TP56U91.2 is an analog combo LCD/LED driver controller board suitable for 18.5 to 24 inches TVs. This new Board is best according to its features like backlight adjustment, Mirroring option, and Logo capture. TP56U91_2 is best suitable for the Asia Pacific and the Middle East as well. TP56U91-2 can support a maximum resolution of 1920×1080 Full HD. TP56U91.2 is a 3 IN 1 TV board with video +Power+LED driver.
General Specifications:
Model Number: TP56U91.2
Main Chip: TSUMV56
Screen Supported: 18.5-24 inch
Resolution: 1920×1080
Backlight Voltage:
Backlight Current:
Max Output Power: 50W
Mirror Option: Yes
Backlight Adjustment: Yes
Panel Voltage: 12V, 5V
AC Input Power: AC150V-AC264V
Standby Consumption: < 0.5W
Output Power Consumption: 50W
Service Menu:
Input + 2580, 8869, 8893, 1147, 6964
Note: Following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download your required resolution and then extract it you will get the folder. Now copy the bin file to USB. for More Detail about the download process watch the video Click Here
Here are below TP56U91.2 firmware for all resolution free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP56U91.2_1366x768_BESTON_DUMP | Download |
| 2 | TP56U91.2_1366x768_DRKTRON_DUMP | Download |
| 3 | TP56U91.2_1366x768_F&D_DUMP | Download |
| 4 | TP56U91.2_1366x768_TEXLA VISION_DUMP | Download |
| 5 | TP56U91.2_1366x768_VTONE_DUMP | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
