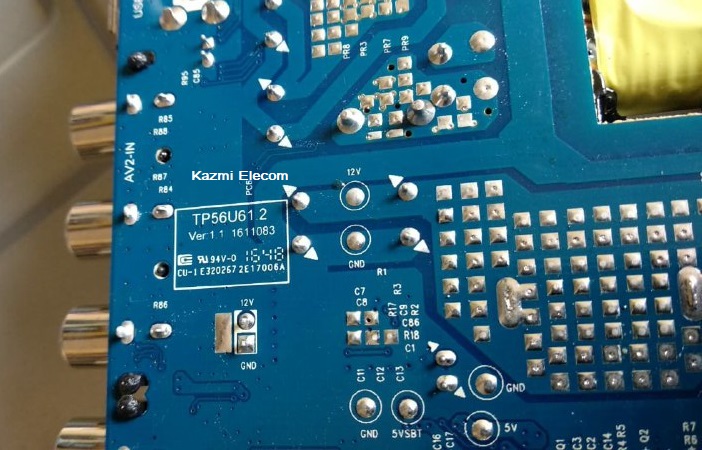

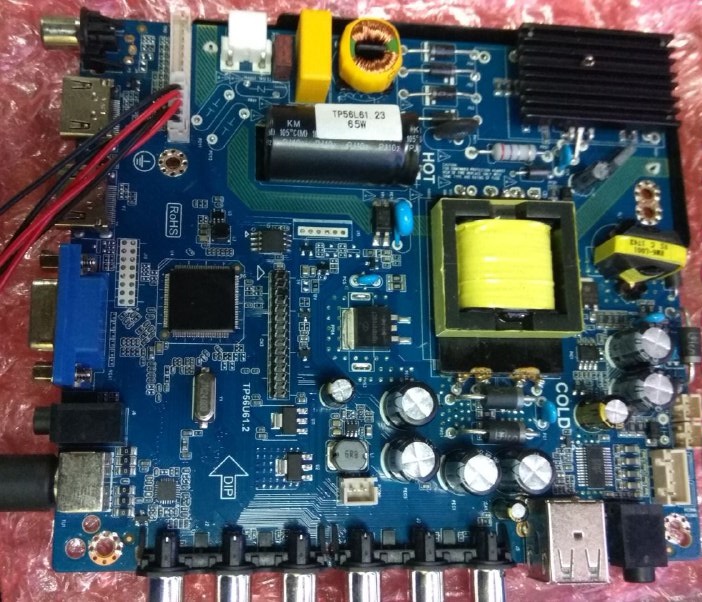

TP56U61.2 LED TV Mainboard
TP56U61.2 is an analog combo LCD/LED driver controller board suitable for 23.6 38.5-inch TVs. This new Board is best according to its features like backlight adjustment, Mirroring option, and Logo capture. TP56U61_2 is best suitable for the Asia Pacific and the Middle East as well. TP56U61-2 can support a maximum resolution of 1920×1080 Full HD. TP56U61.2 is a 3 IN 1 TV board with video +Power+LED driver.
General Specifications:
Model Number: VS.TP56U61.22
Main Chip: TSUMV56RUU-Z1
Screen Supported: 23.6-38.5 inch
Resolution: 1920×1080
Backlight Voltage: 65V-100V
Backlight Current: 300-700mA
Max Output Power: 45W
Mirror Option: Yes
Backlight Adjustment: Yes
Panel Voltage: 12V, 5V
AC Input Power: AC150V-AC264V
Standby Consumption: < 0.5W
Output Power Consumption: 75W
Service Menu:
Input + 2580
Note: Following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download your required resolution and then extract it you will get the folder. Now copy the bin file to USB. for More Detail about the download process watch the video Click Here
TP56U61.2 firmware for all resolution free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP56U61.22_480mA_1366X768_LGIR_USB | Download |
| 2 | TP56U61.22_480mA_1366X768_SAMSUNGIR_USB | Download |
| 3 | TP56U61.22_480mA_1366X768_SONYIR_USB | Download |
| 4 | TP56U61.22_480mA_1920X1080_LGIR_USB | Download |
| 5 | TP56U61.22_480mA_1920X1080_SAMSUNGIR_USB | Download |
| 6 | TP56U61.22_480mA_1920X1080_SONYIR_USB | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
Dear Sir. I NEED SOFTWARE OF BOARD TP56U61.2.
ACTUALLY I DOWNLOADED THE SAME SOFTWARE BUT I WAS NOT WORKING. I NEED FILE OF TP56L61.24.
try some other file. these are factory files
