TP53L52.5 Software Free Download

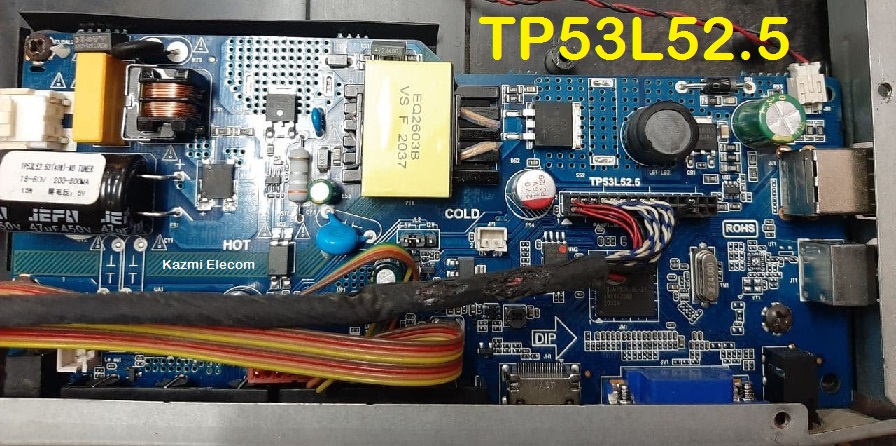

TP53L52.5 Multi-Resolution Multi Logo Board

TP53L52.5 is a combo LCD/LED driver controller board suitable for 24 to 32-inch TVs. This new Board is best according to its features like backlight adjustment, Mirroring option, and inbuilt Logos. TP53L52_5 is best suitable for the Asia Pacific and the Middle East as well. TP53L52-2 supports a Full HD Resolution of 1920×1080 and inbuilt software for HD and FHD resolution. The TP53L52.5 firmware file is given below for the technician’s support.

Download Here

General Specifications:

Model Number: TP53L52.5

Main Chip: TSUMV53RUU-Z1

Screen Supported: 18 to 32 inch

Resolution: 1920×1080

Backlight: 18-50V 200-500mA

Mirror Option: Yes

Backlight Adjustment: Yes

Panel Voltage: 5v, 12V

Multi Logo: Yes

Multi-Resolution: Yes

Multi Remote: Yes

Service Menu:

Input 815, Menu 1147

Resolution Setting:

INPUT+5NOS
1366×768 INPUT+31181, 03772
1920×1080 INPUT+31182, 03771

Logo Change:

Input 815 Then open Special Set

Logo Details:

LG
Videocon
Micromax
Philips
Samsung
Sony
Toshiba
Panasonic

Remote Change:

Press CH+ and CH-

Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware Files:

Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

TP53L52.5 firmware for all resolutions free download:
