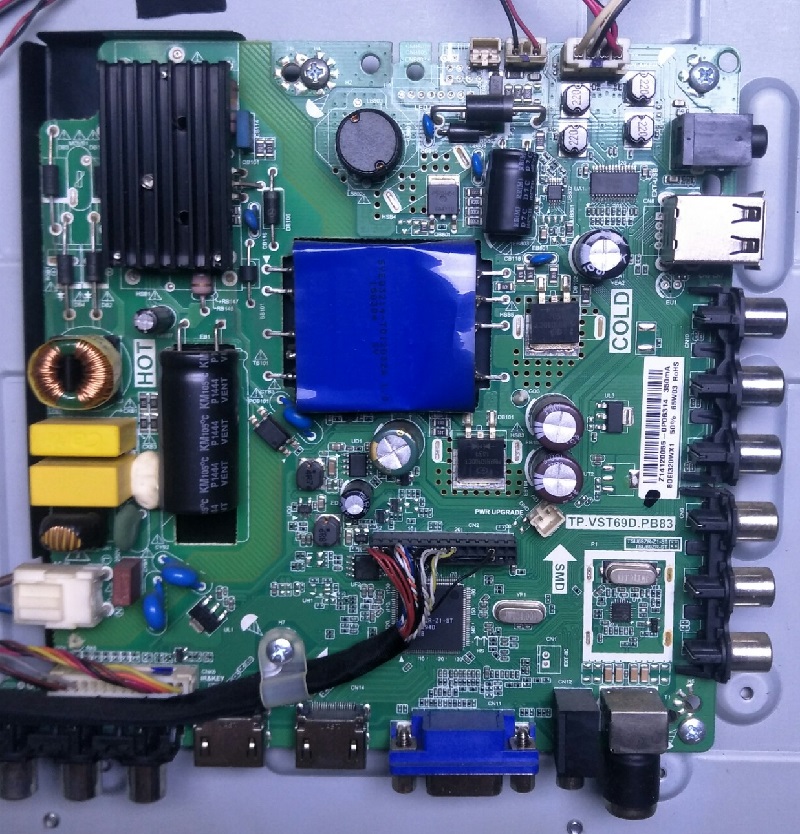

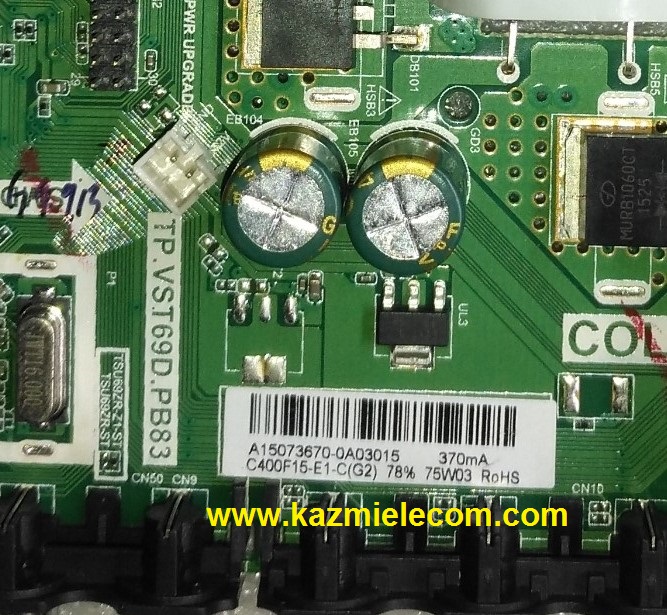

TP.VST69D.PB83 LED TV Board
TP.VST69D.PB83 is an analog universal LCD/LED Tv motherboard that is designed for the Asian market. TP-VST69D-PB83 can support up to Full HD resolution of 1920×1080. TP_VST69D_PB83 board has multiple dual-input interface ports as Dual HDMI, Dual AV, Dual USB, VGA interface, RF input, Headphone Jack, etc. TP VST69D PB83 is compatible with 32 to 46-inch screen panels. Its USB interface can play multimedia and also we can load software. TP.VST69D.PB83 is a three-in-one board that is also called combo board.
General Specifications:
Model No: TP.VST69D.PB83
Main Chipset: TSU69ZR-Z1-ST
Supported Resolution: 1920×1080 FHD
Supported Screen: 32 to 46-inch
Panel Voltage: 12V
Backlight: 300mA-540mA 45W-75W
Speaker Output: 2x5W (8ohm)
Power Input: 220V AC
Note: The following firmware is a USB Boot/dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.VST69D.PB83 firmware free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST69D.PB83_Haier LD32U3100_Backup Dump | Download |
| 2 | TP.VST69D.PB83_Haier LE39B3300W_USB_Firmware | Download |
| 3 | TP.VST69D.PB83_Haier LED32E3100_USB_Firmware | Download |
| 4 | TP.VST69D.PB83_Haier_1920x1080_USB_Firmware | Download |
| 5 | TP.VST69D.PB83_Helmo 39A3_Backup Dump | Download |
| 6 | TP.VST69D.PB83_Konka LED40F1500C_Backup Dump | Download |
| 7 | TP.VST69D.PB83_Konka LED42E3300CE_Firmware | Download |
| 8 | TP.VST69D.PB83_Konka LED42F1500C_Backup Dump | Download |
| 9 | TP.VST69D.PB83_Panda LE39D39_Backup Dump | Download |
| 10 | TP.VST69D.PB83_Philips LED_Backup Dump | Download |
| 11 | TP.VST69D.PB83_Pioneer LED-32B900V_Backup Dump | Download |
| 12 | TP.VST69D.PB83_Pioneer LED-39B350_Backup Dump | Download |
| 13 | TP.VST69D.PB83_Pioneer LED-40B960_Backup Dump | Download |
| 14 | TP.VST69D.PB83_Pioneer LED-42B900_Backup Dump | Download |
| 15 | TP.VST69D.PB83_Pioneer LED-43B550_Backup Dump | Download |
| 16 | TP.VST69D.PB83_Sanyo 32CE561LED_Backup Dump | Download |
Sir ji to. Vsd69. Pb83 ke ye software sab full hd h ya hd ready h please sir tell me
jo mere pas collection the sab upload kar di hen ap check kar len
FIRMWARE FOR TP.VST69D.PB83 1366×768 PLEASE UPLOAD. AAPKE COLLECTION ME NAHI MIL RAHA AND JO H WO ” THIS PAGE IS NOT WORKING” KA MASSAGE AATA H.
mostly 32inch software are 1366
Please send firmware for TP.VST69D.PB83_Sanyo 42CE5100
Tp.v56.pb832 Service Menu Codes and software samsung remote \
tp.vst69d.pb83 firmware 1920×1080 not dowwnload sir
