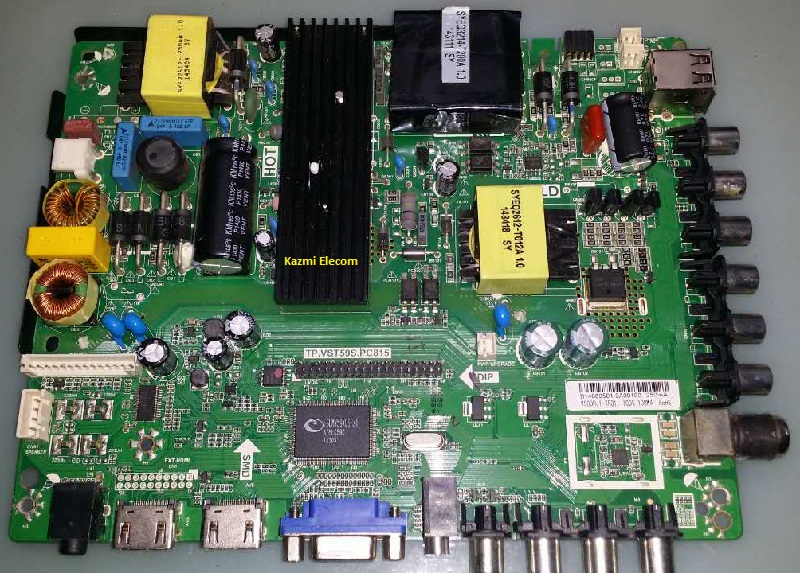

TP.VST59S.PC815 HD LED TV Board
TP.VST59S.PC815 is designed for an LCD/LED HD TV Board that supports the screen size of 42″ to 65″. This is three in one motherboard that has the main power module and an Inverter module in a single piece of a motherboard. It is best with its interfaces like Dual AV, Dual HDMI input, Dual USB interface, PC Input with audio, and Headphone jack. It has 40 pins LVDS Connector screen cable and has 4MB of program storage memory.
General Specifications:
Brand/Mark: Leory China Universal HD Three in One Board
Model: TP.VST59S.PC815
Product: LED TV
LED Backlight Current: 480MA, 720MA, 900 MA
100 HZ Supported: Yes
Flash IC: 4Mb
Screen supported: 42-65 inch
Resolution: Upto 1920×1080
Panel Voltage: 12V
Power Input: 220V AC
Service Code:
Menu+1147
How to Program:
- Format the USB Disk with FAT32 System
- Transfer the required resolution file into USB
- Insert the USB into TV Motherboard USB interface
- Connect the Keyboard&IR
- Power on the Main Board and wait until LED light Start Flashing
- Keep watching while the LED light stops flashing. Its Done
Note: The following firmware is a USB Boot/dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.VST59S.PC815 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59S.PC815_720MA_1366x768_Normal | Download |
| 2 | TP.VST59S.PC815_720MA_1366x768_Mirror | Download |
| 3 | TP.VST59S.PC815_720MA_1920x1080_Normal | Download |
| 4 | TP.VST59S.PC815_720MA_1920x1080_Mirror | Download |
| 5 | TP.VST59S.PC815_720MA_1920x1080_3D | Download |
| 6 | TP.VST59S.PC815_720MA_100HZ_Normal | Download |
| 7 | TP.VST59S.PC815_900MA_1920x1080_Normal | Download |
| 8 | TP.VST59S.PC815_900MA_1920x1080_Mirror | Download |
| 9 | TP.VST59S.PC815_900MA_1920x1080_Logo | Download |
| 10 | TP.VST59S.PC815_900MA_1920x1080_3D | Download |
| 11 | TP.VST59S.PC815_900MA_100HZ_Normal | Download |
| 12 | TP.VST59S.PC815_900MA_100HZ_Mirror | Download |
| 13 | TP.VST59S.PC815_1920x1080_Sony | Download |
sir gee salam….aap ka yeh post baree mushkel sya mela…Allah aap ko khosh raky….mera masala yeh hay ke mery pass 32 inch led tv hay chinese…samsung…magar mere tv ka led light red aor green blink kar raha hay…may nay kol kar dheka to andar yeh kit tha…TP.VST59S.816PB isky leay keya karoon.plzzzzz
Dear i will try to upload soon for this board
Hello Sir/Madam I am a technician and I am working on a Samsung 55 ” tv Model # UA55HU6000XXZ Version # TS01 the board #TP.VST59S.P.C815 the TV has no sound but perfect video. The speakers r reading good so I am wondering if this is a board issue or a software problem please advice
Sound ic may be faulty
I can’t play .mkv file on my TV (board #tp.vst59s.pc815). Is there a software update or software that can fix this problem?
No way dear. some board did not support this format
Service code not opening in pc 815 board
TP.VST59S.PC815 panel AOU T550HVN06
1920×1080 download
Good day! What is the ideal software that should i download for mainboard: tp.vst59s.pc815 , model:48L15, resolution:1920×1080 . please advise me.thank you!
you can install/load from the given software. no issue
You, Sir, I have flashed, but the control does not work until I enter the secret menu to flip the image and modify them
try universal remote
Hello, Mr. Kazemi, please, I have two weeks and I am stuck looking for this remote control for flash after I need to log in to Service Menio and modify the vanel to clarify the picture. Please tell me.
try universal remote
How do I copy the remote with TV directly and does it fit with these for the board
No idea
Is there a new update for this motherboard or converted for example because the screen after using the hand of the global control as you have told me have corrected Thank you looking for now to update the screen resolution to become more Hurghada with the knowledge of my lord when I entered the service menu I did not find a property panel setting
No new update
i have a TV “Masimo LE-50FS” that uses VST59S.PC815.
the problem is that i don’t know how to flash…
do i need to flash somthing to get it work and responde to my remote control?
its a full HD model.
Why you want to flash??
i need software masimo tv codes le-50fs
not available for this brand
Tp.vst59s.pc815
backlight volt slowely down why?
As59M,ic problem
check inverter circuit or backlights
Tp.vst59s.pc815 similer another board
Backlight ok
Hello. I have Innova MC-480F brand with TP.VST95S.PC815 board. How do I grab the firmware into a BIN file from my old board to transfer it to my new one?
replace the flash ic
Is this mainboard support DVB-C ?
search google
