TP.VST59S.PB816

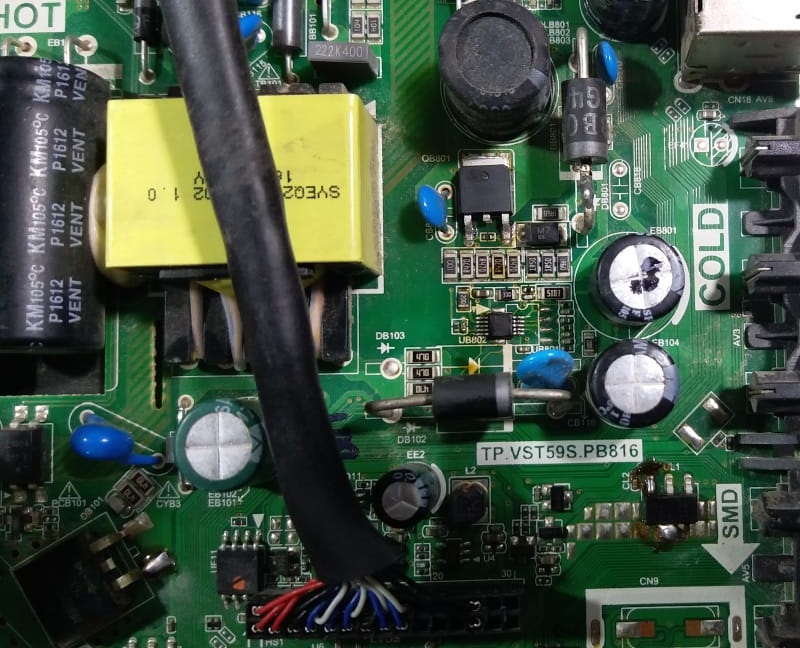

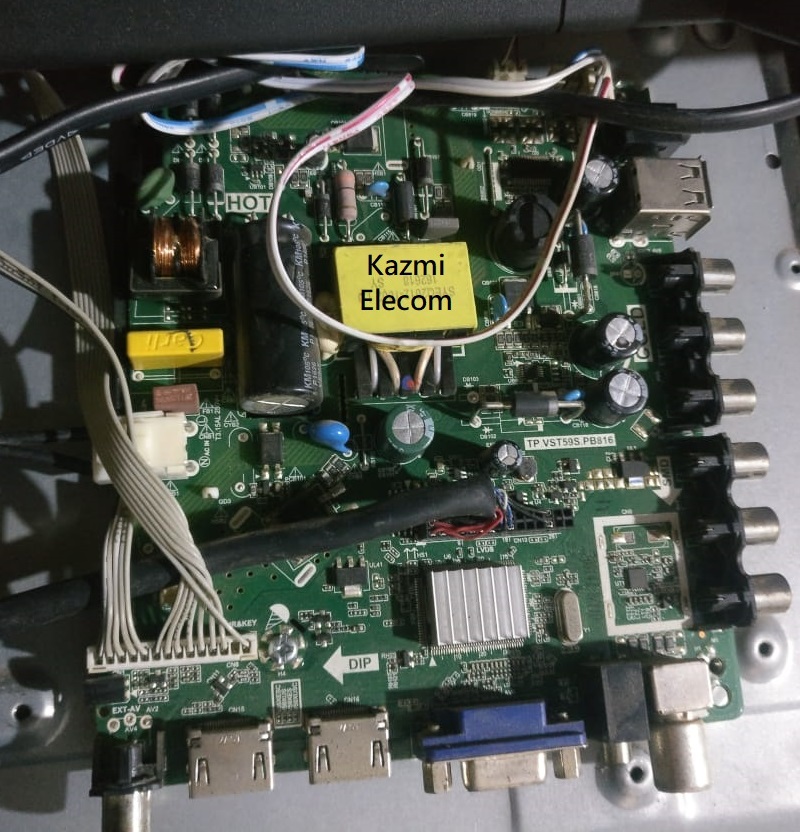

TP.VST59S.PB816 is a Three-In-One LCD/LED TV Motherboard that is designed for especially 32-inch screens. TP_VST59S_PB816 is a combo board which is three modules builtin into a single part of PCB.
General Basic Info:
Brand/Mark: China Universal OEM
Model: TP.VST59S.PB816
TV System: PAL\SECAM\NTSC PLAYBACK
Product: LED TV
Input Voltage: 220V AC
MAX Backlight Watt: 25W
Backlight voltage: 45-63V
Size : 146*128mm
Resolution: 30-39 ” GLASS PANEL
Service Menu:
Menu 1147
USB Upgrade:
- Format the U Disk into a FAT32 file system. It should be Empty
- Copy the required resolution software/firmware bin file with text file into USB Disk
- Insert the USB disk into USB port of mainboard
- Now Turn on the Power Supply the standby light will flash on/off. wait for the led light to stop. Done
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
Here are below some TP.VST59S.PB816 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59S.PB816_1366x768_Samsung_32H6000_Mirror_Dump | Download |
| 2 | TP.VST59S.PB816_1366x768_Samsung_32H6100_Normal_Dump | Download |
| 3 | TP.VST59S.PB816_1366x768_Samsung_Mirror-Flip_USB | Download |
| 4 | TP.VST59S.PB816_1366x768_Samsung_Normal_Dump | Download |
| 5 | TP.VST59S.PB816_1366x768_Samsung_USB | Download |
| 6 | TP.VST59S.PB816_1366x768_Sony_Dump | Download |
| 7 | TP.VST59S.PB816_1366x768_Sony_Mirror-Flip_Dump | Download |
| 8 | TP.VST59S.PB816_1366x768_Sony_USB | Download |
| 9 | TP.VST59S.PB816_Aiwa-32K3200_Backup Dump | Download |
| 10 | TP.VST59S.PB816_Nobel-32DN6_Backup Dump | Download |
| 11 | TP.VST59S.PB816_1920x1080_Samsung_Mirror_Dump | Download |
| 12 | TP.VST59S.PB816_1920x1080_Samsung_Normal_Dump | Download |
| 13 | TP.VST59S.PB816_Condor N40D36PB_Mirror_Dump | Download |
| 14 | TP.VST59S.PB816_EG EFLED-32D1_Normal_Dump | Download |
| 15 | TP.VST59S.PB816_Eurostar LED-42_Mirror_Dump | Download |
| 16 | TP.VST59S.PB816_General Delux LD3216_Normal_Dump | Download |
| 17 | TP.VST59S.PB816_General Delux_LED-32_Mirror_Dump | Download |
| 18 | TP.VST59S.PB816_Hisense LED-32_Mirror_Dump | Download |
| 19 | TP.VST59S.PB816_JAC NGLD-42AS_Normal_Dump | Download |
| 20 | TP.VST59S.PB816_Shownic LED-42_Normal_Dump | Download |
| 21 | TP.VST59S.PB816_Star-x 32LB550A_Mirror_Dump | Download |
How to downlode free led software
all are free
Sorry bhi Jan softwear download nahen how raja hy err arahahy
all links are updated
es buena pagina
me gusta para el trabajo
Hello, My motherboard is to.vst59s.pb816 .. but I want to update its Android version.. currently its Android version is 4.0.4 and because of that my YouTube is not working.. please reply a solution
the mentioned board is not android. you can upgrade by changing board
My LED Screen is around 46 Inch
Asalamualaikum brother TP.VST59S.PB816 mirror usb firmware 1366*768 usb samsung file is not working I have updated via USB but screen display has no effect it is still in previous position and after updating with this mirror firmware remote stops working led tv name is samsung assembled model and panel is auo I have also updated with normal usb bin file but no change in display panel please suggest any solution
w.salam dear V59 board not have the mirror option. so, check one by one and for screen adjustments go to service menu setting
Please add sony 1366*768 mirror usb
