TP.VST59S.PB813

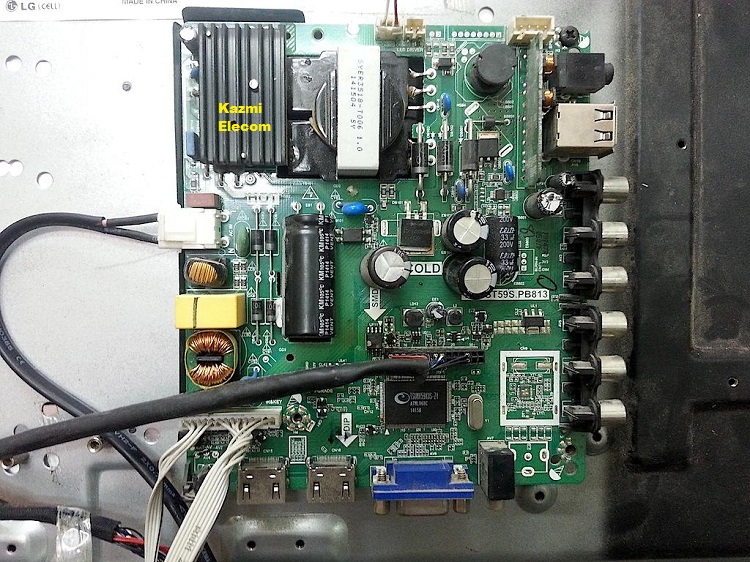

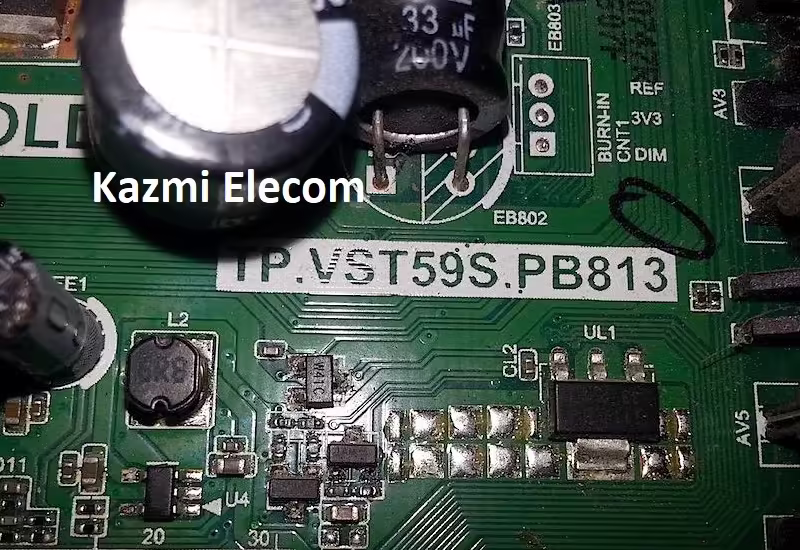

TP.VST59S.PB813 is a simple ATV Driver Motherboard intended for LCD/LED TVs. It can support universal HD and Full HD screen panels. This board is suitable for the Asia Pacific and the Middle East markets. This is a three-in-one Combo Board. The TV tuner, LED backlight driver module, and the power input circuit are built on a single PCB motherboard. This board has all the features and connectivity ports as per the latest user requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart(optional).
Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. TP.VST59S.PB813 is a Full HD-supported LCD LED TV controller board with a maximum resolution of 1920×1080. It can be fit in 32-inch to 42-inch HD and FHD LED TVs. The main processor is made by Mstar and its graphics are also good. TP.VST59S.PB813 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: China Universal
Model: TP-VST59S-PB813
Product: LED TV
Resolution: Up to 1920×1080
Panel: CMO, Universal, CX315DLEDM
Service Code: Menu+1147
Caution:
All the pictures and specification details related to TP.VST59S.PB813 in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.
Pros:
There are many advantages to installing the given TP.VST59S.PB813 USB software or backup dump file. A few benefits are described below:
- The dead board can be recovered and operational by loading the given software backup file
- Remote and Logo may change at your own choice to satisfy the customer
- Money saving instead of changing the mainboard
- Time-saving instead of arranging a new board
- Customer satisfaction to do an urgent job
- Skill and confidence improvement
Cons:
There may be some disadvantages to installing the given TP.VST59S.PB813 USB software or backup dump file. But it depends on the technician or user as per his understanding. A few drawbacks are described below:
- The working board may go to the standby position
- Remote Control may not work and the Logo may change by writing the given software
- Panel screen parameters may be changed
TP.VST59S.PB813 Version Upgrade:
Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software is malfunctioning due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.
TP.VST59S.PB813 Board Replacement:
If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.
Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. Always keep a backup before writing the flash. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download Firmware Files:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Details about the download, process watch the video Click Here
TP.VST59S.PB813 firmware free download:
| S.NO | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59S.PB813_General_1366x768 | Download |
| 2 | TP.VST59S.PB813_General_1920x1080 | Download |
| 3 | TP.VST59S.PB813_1366x768_Sony | Download |
| 4 | TP.VST59S.PB813_32_Samsung | Download |
| 5 | TP.VST59S.PB813_32_Sony | Download |
| 6 | TP.VST59S.PB813_32'' NONHD_Tuner840 | Download |
| 7 | TP.VST59S.PB813_EUROSTAR_1366x768 | Download |
| 8 | TP.VST59S.PB813_Haier LD32U3100 | Download |
| 9 | TP.VST59S.PB813_LED42A01B_Panel-LC420DUG | Download |
| 10 | TP.VST59S.PB813_Mystery MTV-3217LW | Download |
| 11 | TP.VST59S.PB813_PAKISTAN_32HD_irSAMSUNG_SiR840_TK_REF46 | Download |
| 12 | TP.VST59S.PB813_Panel_ HV320WXC-200-PCB-X0.0 | Download |
| 13 | TP.VST59S.PB813_Panel_CX32U535 | Download |
| 14 | TP.VST59S.PB813_Panel_CX315DLEDM | Download |
| 15 | TP.VST59S.PB813_PANEL_LC320EXJ-SEE1_EGLED-32D1 | Download |
| 16 | TP.VST59S.PB813_Panel_LC420EUS_1920x1080 | Download |
| 17 | TP.VST59S.PB813_Panel_LTF460HF08_1920x1080 | Download |
| 18 | TP.VST59S.PB813_Panel_Mt3151a04-1_1366x768 | Download |
| 19 | TP.VST59S.PB813_Panel_PT-131101-2461-M | Download |
| 20 | TP.VST59S.PB813_Panel_T315XW02VL_1366x768 | Download |
| 21 | TP.VST59S.PB813_Panel_V320BK1_1366x768 | Download |
| 22 | TP.VST59S.PB813_Panel-ST315A05_1366x768_M90_840 | Download |
| 23 | TP.VST59S.PB813_Panel-ST2751A01-3 VER2.2 | Download |
| 24 | TP.VST59S.PB813_SAMSUNG_32_Seedha | Download |
| 25 | TP.VST59S.PB813_SAMSUNG_32_ULTA_DATA10 | Download |
| 26 | TP.VST59S.PB813_SAMSUNG_42_20 Data | Download |
| 27 | TP.VST59S.PB813_SUPRA STV-LC28500WL(V1N07) | Download |
| 28 | TP.VST59S.PB813_T.Con_mt3151a05-3-xc-1 | Download |
| 29 | TP.VST59S.PB813_T390XVN01_0_irCX509SONY_SiR840_MO_REF92 | Download |
| 30 | TP.VST59S.PB813_Haier LE32B9000 | Download |
| 31 | TP.VST59S.PB813_SONY_32_KDL32W600A_Ulta | Download |
| 32 | TP.VST59S.PB813_1920x1080_Sony | Download |
| 33 | TP.VST59S.PB813_1366x768_Electa_Flip_Tested | Download |
| 34 | TP.VST59S.PB813_1366x768_Samsung IR_Normal_Seedha_Tested | Download |
| 35 | TP.VST59S.PB813_1920X1080_Samsung_Seedha_Tested | Download |
| 36 | TP.VST59.P83_1920x1080_Sony_Flip_Tested | Download |
| 37 | TP.VST59S.PB813_Dansat DTD40BF_Tested | Download |
| 38 | TP.VST59S.PB813_Haier-LE43B7000_Tested | Download |
