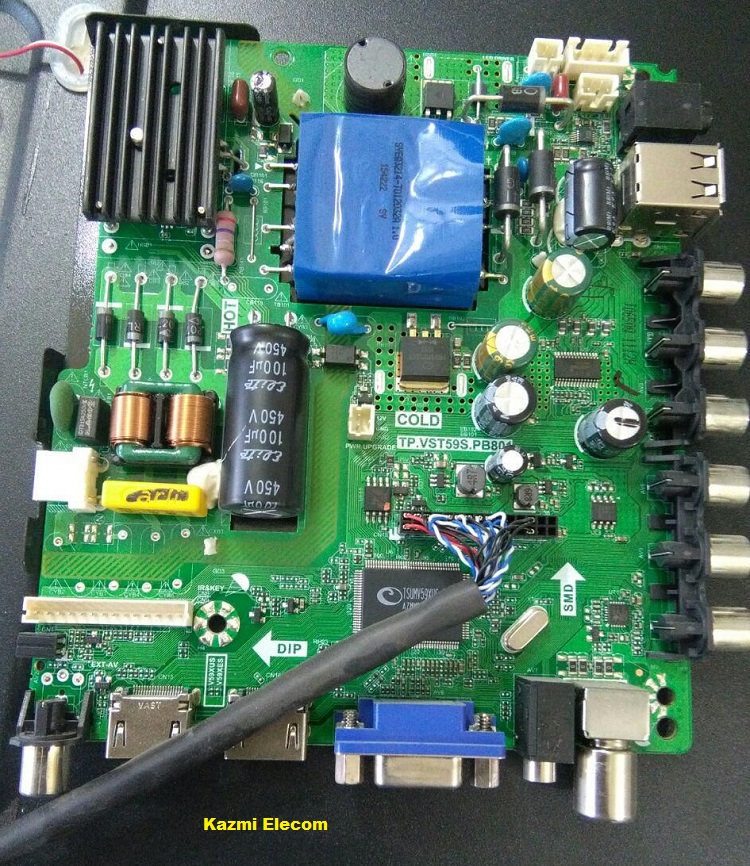

TP.VST59S.PB801
TP.VST59S.PB801 is a universal non-smart FHD LCD LED TV driver controller motherboard. Its maximum supported resolution is 1920×1080 Full High Definition 1080 Pixels. It can support 29-inch to 43-inch LCD LED TV screen panels. TP.VST59S.PB801 software is shared in this post. TP-VST59S-PB801 is a three-in-one combo board. A 40-watt LED backlight inverter module, an AC 220V main input power circuit module, and a cable TV tuner are built into a single piece of printed circuit board (PCB).
TP.VST59S.PB801 has multiple input/output connectivity interface ports for the user. This board has Dual HDMI input ports for connecting Digital devices such as Gaming consoles, STBs, etc. It has also dual USB inputs for connecting external hard disk drives and USB multimedia playback. Users can also upgrade software with these USB ports. Other useful ports are VGA for connecting computers, RCA inputs for connecting analog devices, and headphones output jack.
Basic Info:
Brand/Mark: China Universal
Model: TP-VST59S-PB801
Chipset: TSUMV59XES
Product: LED TV
Backlight Info: 45V-63V/40Watt
Supported Resolution: 1920×1080
Service Code: Menu + 1147
SPI Flash Size: 4 MB
Firmware Type: USB bootable and Backup Dump
Firmware Files:
- TP-VST59S-PB801_1366X768_Samsung Logo & Remote
- TP-VST59S-PB801_1366X768_Sony Logo & Remote
- TP-VST59S-PB801_LC390TU1A_42Q5F_1366x768_Panda
- TP-VST59S-PB801_USB File_77
- TP-VST59S-PB801_USB File_86
- TP-VST59S-PB801_ LC490DUY
- TP-VST59S-PB801_43 UHD Panel V420DK1-PS1
- TP-VST59S-PB801_1366X768
- TP-VST59S-PB801_1366x768_USB
- TP-VST59S-PB801_1920x1080_Samsung Logo & Remote
- TP-VST59S-PB801_1920x1080_USB_Ref60
- TP-VST59S-PB801_1920x1080_USB_Ref75
- TP-VST59S-PB801_Backup_Dump
- TP-VST59S-PB801_DISCOVERY LED 32_Backup_Dump
- TP-VST59S-PB801_General Delux LD4321_Backup_Dump
- TP-VST59S-PB801_G-Guard GG-43KE_Backup_Dump
- TP-VST59S-PB801_Guard GG-40KE_Backup_Dump
- TP-VST59S-PB801_i-VIEW IV-32KE_Backup_Dump
- TP-VST59S-PB801_LC390TA1A_42Q5F_1366x768_Panda
- TP-VST59S-PB801_LC390TA2A_42Q5F_1366x768_Panda
- TP-VST59S-PB801_LC430DUY
- TP-VST59S-PB801_LED 40D2
- TP-VST59S-PB801_National Nanos NA32P2016_Backup_Dump
- TP-VST59S-PB801_Panel_LC390TA1A
- TP-VST59S-PB801_Panel_LC390TA2A
- TP-VST59S-PB801_Panel_LC390TU1A
- TP-VST59S-PB801_Panel_LC430DUY
- TP-VST59S-PB801_Panel_LSC400HN02
- TP-VST59S-PB801_SAMSUNG LED28A01_Backup_Dump
- TP-VST59S-PB801-HV320WHB_CROWN-K3200
- TP-VST59S-PB801_43FHD_IR_038_LOGO_SAMSUNG
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
TP.VST59S.PB801 firmware for free download:
| S.NO. | ITEM DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.VST59S.PB801_1366X768_Samsung Logo & Remote | Download |
| 2 | T.VST59S.PB801_1366X768_Sony Logo & Remote | Download |
| 3 | T.VST59S.PB801_LC390TU1A_42Q5F_1366x768_Panda | Download |
| 4 | T.VST59S.PB801_USB File_77 | Download |
| 5 | T.VST59S.PB801_USB File_86 | Download |
| 6 | TP.VST59S.PB801_Backup Dump | Download |
| 7 | TP.VST59S.PB801_ LC490DUY | Download |
| 8 | TP.VST59S.PB801_43 UHD Panel V420DK1-PS1 | Download |
| 9 | TP.VST59S.PB801_1366X768 | Download |
| 10 | TP.VST59S.PB801_LC390TA1A_42Q5F_1366x768_Panda | Download |
| 11 | TP.VST59S.PB801_LC390TA2A_42Q5F_1366x768_Panda | Download |
| 12 | TP.VST59S.PB801_LC430DUY | Download |
| 13 | TP.VST59S.PB801_LED 40D2 | Download |
| 14 | TP.VST59S.PB801_Panel_LC390TA1A | Download |
| 15 | TP.VST59S.PB801_Panel_LC390TA2A | Download |
| 16 | TP.VST59S.PB801_Panel_LC390TU1A | Download |
| 17 | TP.VST59S.PB801_Panel_LC430DUY | Download |
| 18 | TP.VST59S.PB801_Panel_LSC400HN02 | Download |
| 19 | TP.VST59S.PB801-HV320WHB_CROWN-K3200 | Download |
| 20 | TP_VST59S_PB801_43FHD_IR_038_LOGO_SAMSUNG | Download |
| 21 | TP.VST59S.PB801_1920x1080_Samsung Logo & Remote | Download |
| 22 | TP.VST59S.PB801_1366x768_USB | Download |
| 23 | TP.VST59S.PB801_1920x1080_USB_Ref60 | Download |
| 24 | TP.VST59S.PB801_1920x1080_USB_Ref75 | Download |
| 25 | TP.VST59S.PB801_DISCOVERY LED 32_Backup_Dump | Download |
| 26 | TP.VST59S.PB801_General Delux LD4321_Backup_Dump | Download |
| 27 | TP.VST59S.PB801_G-Guard GG-43KE_Backup_Dump | Download |
| 28 | TP.VST59S.PB801_Guard GG-40KE_Backup_Dump | Download |
| 29 | TP.VST59S.PB801_i-VIEW IV-32KE_Backup_Dump | Download |
| 30 | TP.VST59S.PB801_National Nanos NA32P2016_Backup_Dump | Download |
| 31 | TP.VST59S.PB801_SAMSUNG LED28A01_Backup_Dump | Download |
thank you very much bhai mujhe iss cheez ki bhut der say talash thi. thanks
To.vst59s.pb712firmwere
TP.vst59s.pb712
https://www.up-4.net/w8tb52z0u8qv
Vst59s.pb815 software plz
Please can I have software for tp.vst59s.pb801 LMDS400DH SX LSC400HN05
Same is not available. Download and use at Serial 18. it will work but the remote control is not confirmed
T.VST59S.PB801_1366X768_Sony Logo & Remote.kali folder hy sony remot wala chahiay mirror option ky sath
Noted. i will replace soon
Aslamoaliikom!janb kab Tak replecmet ho jay gi mujhy zarorat hy
w.salamm link 2 added
TP.VST59S/PB802 FIRMWARE ? CHAYE MUJY MIRROR WALA YA WITHOUR MIRROR WALA
kazim bhai is card me software direct install nai ho raha hai memory copy kr k lagana prh rahi hai any idea kia reason hoga?
Dear kuch USB wali files hoti hen aur kuch programmer se backup lia hota hy. backup wali file usb se nai hoti
thanks sir
Laxmi bhai ji mujhe mt8227 Videocon 22″ ka software denge please
han g kion nai
check your email
Dear Kazmi Bhai
Board ka Model : JX-MTK8227-01 V1.1 ha Jis Main Main Chipset : MT8227 AAKU
1302-BSML
ha is Card Ka Software Chaiye 1280*1024 (19 Inch)
Plz agar aap k pass ha to share kare.
Dear tv brand aur model number bhe share karen
AZHAR BHAI , MERE PASS SIRF CARD HA , JUST SOFTWARE CHAIYE CARD OK HA MAGAR RESOULATION KA DIFFERENCE HA. PLZ AGAR AAP IS TRAH GUIDE KAR DEN TO ADVANCE THANKS
Kazmi Bhai Plz Reply with Soloution
file extract no archives found errer how to slove
The solution of this shared in the video. so watch video
Hello sir I have wansa WLE49D8856S model smart tv I need a firmware software for these tv pls send me download link as soon as possible.
Thank you
not available
Any other option to start tv pls tell me
Sir did you found your smart tv firmware because i have the same problem for the same model
Pls i have lcd tv samsung tp.vst59s.pb-801.there is no audio .pls share me schematic diagrame or Audio amp cct
Vutv43 inch TV software download
I need to.vst59s.pb801 software
download from given list
sir man tp.vst59s.pb801 ka software donlowd kar raha hon par ho nai raha plezz ap mujay 03034036612 par send kar dan
website homepage pe video hy woh dekh len
Dear sir ,
I need wansa wle49d8856s firmware download
Please send me in email
kiranpatel_007@yahoo.com
Game videocon led tv 32inch 1366 768 ka software chahka please give me sir
Sir i have wle49d8856s and its stucked now i need its firmware if you please i will be thankfull if you can help
Dear share Board number and panel resolution
My board no TP.VST59S.PB801 and rosolution 1366*768 HV320WHB Panel matching with Sl No-19 but flashing can not be done with pen drive. I tried other software like Sl. No 10,11 flashing done but remote not working only chinees language displayed.Flashing file having name bin_vst59_sos.bin is working any other named bin file not working.I also rename the Sl No 19 bin file still not working please guide me.
Dear search with the brand name otherwise remote will not match
salam
sir yi software jab hota hi tu remote kam nahi karta aur chinies laug ate hi aur 1366*768 wala tu download nahi hota hi
sir aghar ap ki pass TP.vst59s.pb801 1366*768 sumsung logo remote mojod hi tu mehrabani kar ki muje gmail par bej di
check this
https://www.up-4ever.org/br87930bikup
Salam
Sir ye can’t detect this software ka msg ata hi kam nahi kar raha hi
programmer se hoga
sir programmer tu nahi hi mere pas aur koi software nahi hi
led ka colour b kharab huwa hi
sir jo software pahle ta wo wapas asak ta hi
jo pehly tha woh wapas nai aye ga. colour set ho jaen gay service menu se
Salam
Sir 1 aur masla mere led mi aya hi screen ki nechi jo white colour ka fram back light par laga hi us par spot hi mi ni us ko saf karna chaha lekin saf nahi huwa kia us ko pani ki sat do ki saf kiya ja sakta hi ya koi aur chez ho tu mehrabani kar ki bateye
geely kapre se saf kar len lekin pehly kisi aik corner pe try kar lena
Hellow sir i have to.vst59s.pb788 Micromax
me mirror ka option wala software chahiye please
sorry
tp vst 59s pb801 -Lc 430 duy sha1 i cannot download schematics double image problem
i need update process to tp.vst59s pb801 board, how to do, i put the bin file in the usb drive, so into the service mode i selected firmware update but got pop up say me dont find file into the drive
No need to update this board
i have a TP.VST59S.PB801 board i want to install in FHD panel but thats board come to 1366x 768 RCA firmware. i need install 1920x 1080 firmware i tryed but i put the firmware on a fat32 pendrive when i connect the power, it does not load the firmware, it only turn on tv.
i have tried to do it from the service mode and it tells me that the update file is not found, it reeats it with any firmware help me please thanks you
backup file can be loaded by programmer only
la42db2 panel led samsung yehi h board tp.vst59s.pb801 magar resolution ka pata nahi chal paraha kyu mai ne koi galat update kr ke screen black krdia h led work nahi kr rahi
panel ki back side pe sticker hoga. usko google kar len resolution ka pata chal jye ga. agar 39 inches hy to shyad 1366×768 hoga
sir please refresh above list many of them has been expired
thank you
Noted. i will replace soon
sir how can i remove samsung remote from board and fix sony remote by software
remote can not be changed. change software
please i need dump tp.vst59s.pb801 t-con mt3151a05-5-xc-5
thank you so much
this software is for the general panel also. you can load any one of them, it will work
Please yar koi meri help karega. mujhe TP.VST59S.pb801 ka software download karna hai meri led main masla ye hai ke remote sensor aur keys kam nahi kar raha hai led tv ON nahi ho rahi hai software ka masla hai tu mujhe konsa software download karna chaiye. Please help
panel resolution aur remote k mutabiq software download karen. aur apni led ka backup rakh k software write karen
meri led ka resolution 3840 x 2160 ye hai
Hello Kazmi ji, can you please share software for Videocon mt8227 Model LCDTVVAD22FH-NFK?
Thanks a lot.
https://www.mediafire.com/file/hk9tu1c344gsse3/LCDTVVAD22FH-NFA.rar/file
salam bhai mere led software delete ho gaya hai led main power a raha hai lekin remote kaam nahi kar raha hai meri led power supply ka number tp.vst59s.pb801 yehi hai lekin panel T430QVN01.0 ye hain tu main in software main se kon sa software download karo jo is k panel pe support karen
w.salam dear panel number confirm karen. isme 1920×1080 wala hoga
Sir I have this led tv card but it doesn’t save only backlight settings in service mode. then its card get hot and off. i also software in led card but it doesn’t work. Please give me solution
hardware issue, not software. replace board
sir tp.vst59s.pb801 ka 1280×1024 wala software please
sir i want tpvst59spb801 1920X1080 WITH MIRR mode softewre
m.bno-9441342680
all the software I have shared here already
Salam Bhai,
Mere pass tp vst59s pb801 board hai uski power light kabhi low ho jati hai ur kabhi taiz ho jati. Jub low ho jati too LED standby per hi rahti hai ON nahi hoti…Please guide what may be the problem
all regulator check karen koi faulty ho sakta hy
HAIER 32 INCH WALE SOFTWARE KAUNSI BAOARD MEIN MIlege 801,802,712,p89,
Search by model number
salam alaykom, I have TP.VST59S.PB801 with pannel HV430FHB-N40, witch one of these firmwares can work with my TV?
1920×1080
Thanks for your fast replay
I can’t download firmware n21 because of broken link
I tried firmware n23 and 24 but no chance
The TV is samsung(china) model LED 43DN4
Do you have any odher sggestion please
now all links working. you can download and try
I tried but no luck
Maybe there is another issue like reset system or so
thank you anyway for your time
sir after installating this software TP.VST59S.PB801-1366×768-USB my remote which was given along with the universal board is not working so please i would some help sir
hello.I have tp.s506 pb801 and panel T390HVD01.2 XL .Which firmware to use for this panel. thanks
Nice
I want software for this resolution. Tpvst59s. Pb801
Asssalam o alaikum,
Azhar bhai mjhay isi borad tp.vst59s.pb801 may full hd software chaiye konsa karo ap btao .May nay toh almost saray usb say kar kay dekh liyay hay ni utha raha board.plz help me
Assalam o alaikum ,
Azhar bhai mjhay isi board ka full hd software chaiye ,may nay toh almost saray try kar liyay hay usb say lekin board ni utha raha hay,
plzz help me kay may konsa wala kroo kay board may software hojae
w.salam dear kuch usb wali files hen woh ho sakti hen. naqi dump files hen usb se nai hogi. ap apne panel ki specifications check kar k load karen. refxx ko sos se rename kar sakte hen
AOA SIR
VST59S PB801
ECOSTAR
HV320WHB N861.0 CZAF192880EIO PANAL
SOFTWARE PLZ
USB WALA
search by model number
Tp.vst59s.pb801 china sony logo and remote softwere
