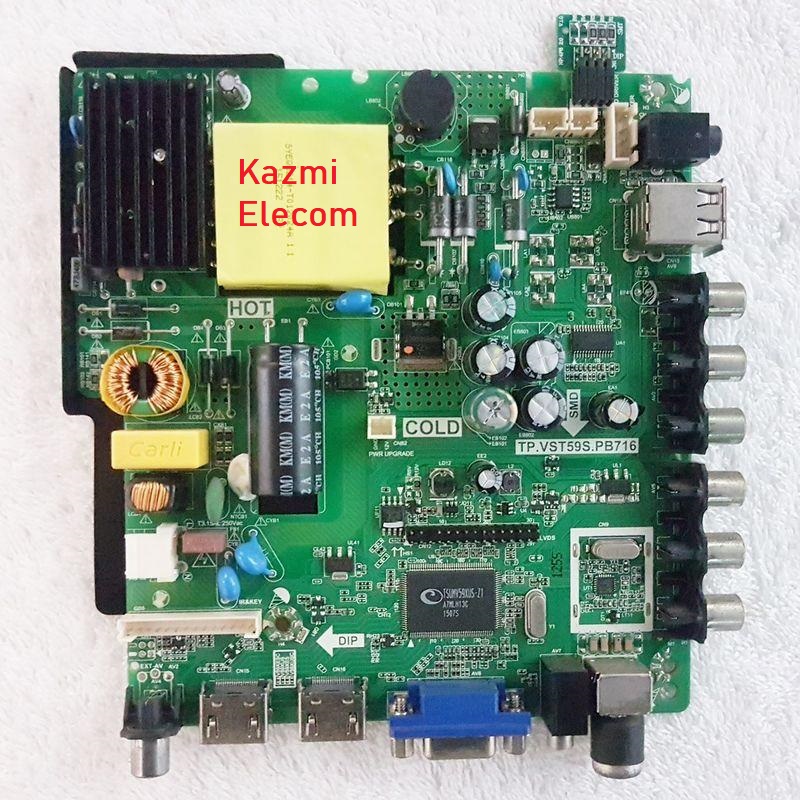

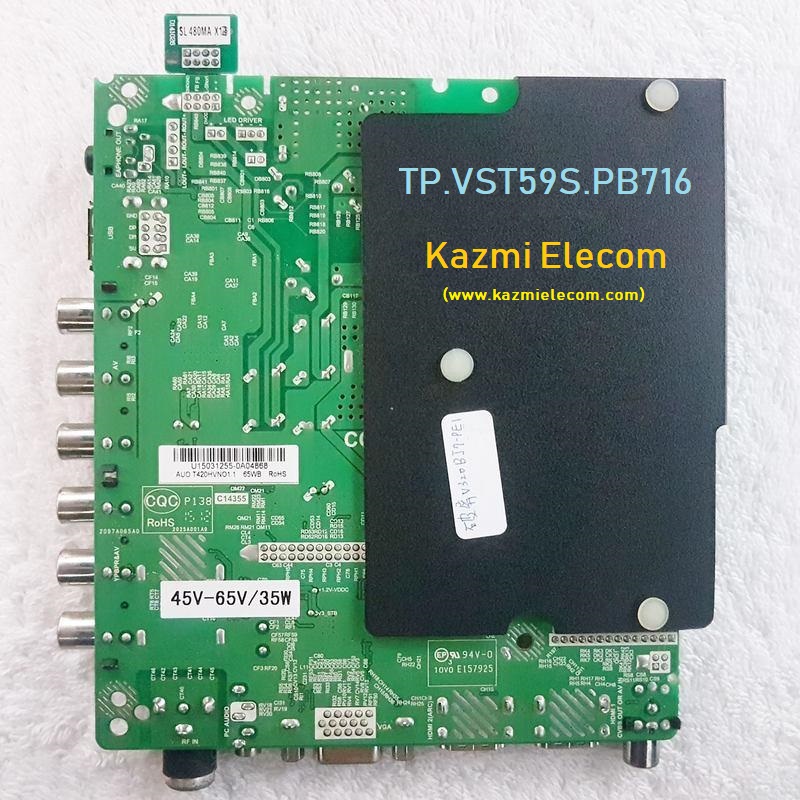

TP.VST59S.PB716 LED TV Board
TP.VST59S.PB716 is an analog TV control board, which is suitable for Asia-Pacific and middle-East markets. TP_VST59S_PB716 is an integration board of power supply, LED driver, and TV board that is also called a combo board. TP-VST59S-PB716’s power part is an energy-efficient ultrathin DC-line switching power supply unit, with max 85W/115VAC input, and 65 watts multi-output. It fits 26〞to 42〞LED backlight TFT panel screens. Its USB interface can be used for multimedia playback and for software updates as well.
General Specifications:
Brand/Mark: China Universal
Model: TP.VST59S.PB716
Main Chipset: TSUMV59XUS-Z1
Product: LED TV
Backlight: 45 to 65v, 35w
Panel Voltage: 5v, 12v
Board Power Input: 220v AC
Resolution: Up to 1920×1080
Screen Supported: 26 to 42 inch
Service Code: Menu+1147
Note: The following firmware is a dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.VST59S.PB716 firmware free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59S.PB716_All Resolutions.part01 | Download |
| TP.VST59S.PB716_All Resolutions.part02 | Download | |
| TP.VST59S.PB716_All Resolutions.part03 | Download |
