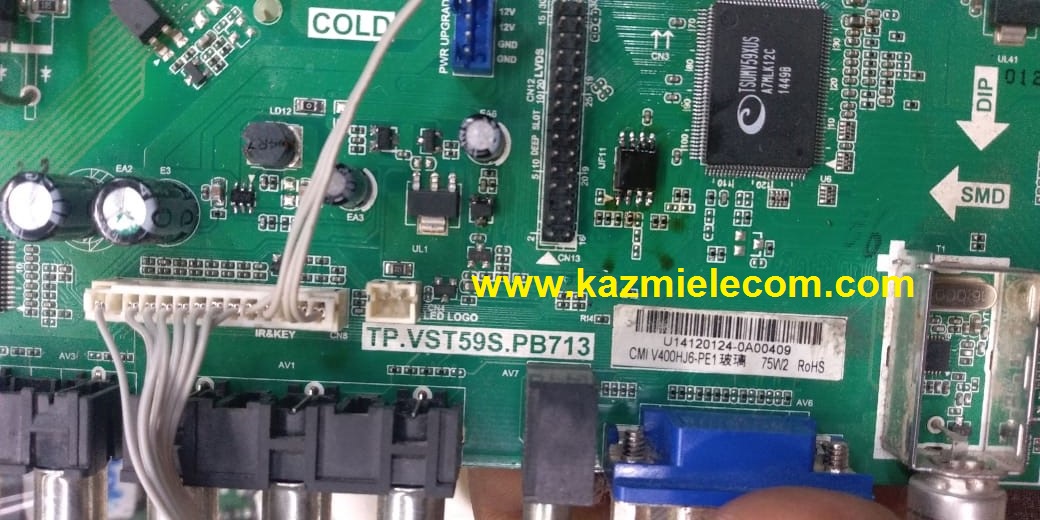

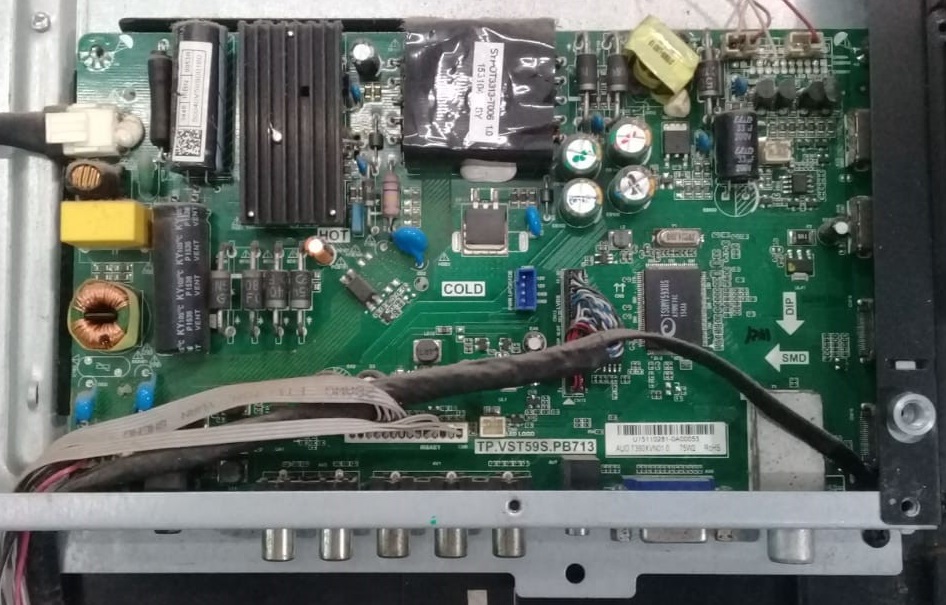

TP.VST59S.PB713
TP.VST59S.PB713 Software files are shared in this post for the technician’s support.
General Specifications:
Brand/Mark: China Universal
Model: TP-VST59S-PB713
Main Chipset: TSUMV59XUS
Product: Haier LED TV
Resolution: 1920×1080
Panel: 32 to 40 Inch
Backlight: 65 to 75 w
Tuner IC: 840
Service Code: Menu+1147
Firmware Type: USB Upgrade and Backup Dump
Firmware Name: bin_v59s.bin
Note: The following given firmware is USB upgradeable and dumps backup files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware and then extract you will get the folder. Now load the file by the programmer. For More Detail about downloading, process watch the video Click Here
Here are below some TP.VST59S.PB713 firmware files free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59S.PB713_1366x768_Haier LE32B7000_Backup | Download |
| 2 | TP.VST59S.PB713_1366x768_Haier LE32B7000_USB | Download |
| 3 | TP.VST59S.PB713_1366x768_Haier_Mirror_Backup | Download |
| 4 | TP.VST59S.PB713_1366x768_Haier_Normal_Backup | Download |
SIRJI
PANASONIC TH-32C200DX TP.VST59S.PB712 SOFTWARE REQUIRED
https://www.kazmielecom.tech/2019/04/06/tp-vst59s-pb712-software-free-download.html
hair led tv 40 inch 1920*1080 softwer
check in haier post
https://www.kazmielecom.tech/2019/09/08/haier-lcd-led-tv-software-free-download.html
aoa
mere pas haier ki 32 inch led broken condition mein hai uska board thek hai sirf panel broken hai. main dost k pass se orient ki led utha laya hn jiska panel thek hai. main cha raha hn k orient ka panel hier mein fit kr dn please guid kr dein. lvds connected different hain dono k. haier board model tp. vst59s.pb713 or orient led panel ka model hai LG display lc320dxe-sfr1. thanks
dear ya to readymade lvds cable le len ya phir panel kid datasheet nikal k apne board k mutabiq lvds tiar karen. apne sirf panel vcc ka khila karna karna hy
i need sony clud tv firm how to check model no
first, check board number and panel resolution
tp.vst59s-pb713…is board k leay samsung led tv ke fhd 1920×1080 software kahan say melay ga….sab jaga par ye board sirf haier led may use hoowa hay aor uski resolution 1366×768 hay
not available
I want Haier combo card (TPVST59S PB713) circuit diagram ?
or if this card isn’t available, is it possible to use alternate one? or which alternate i use to replace this
any board having same specs that is available in local market
