TP.VST59S.PB712

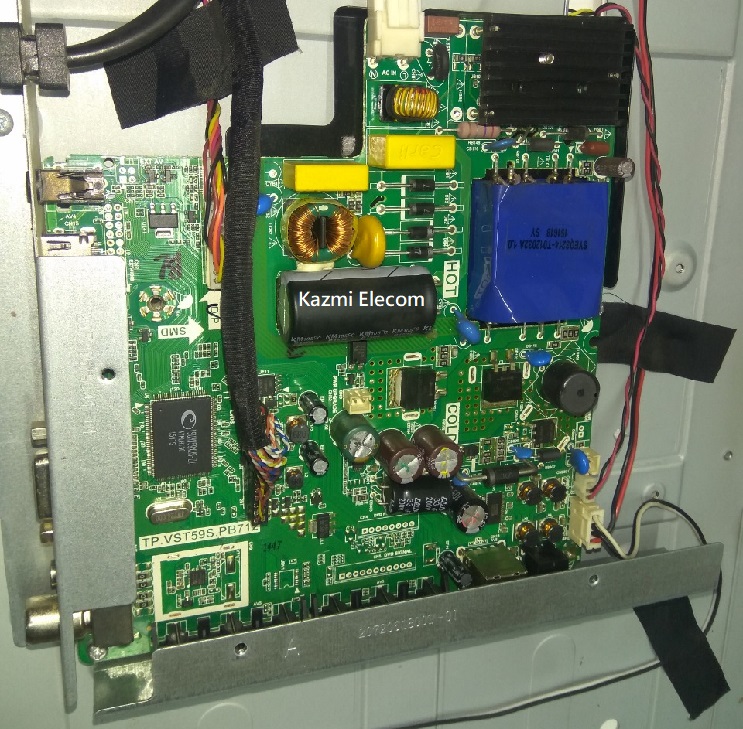

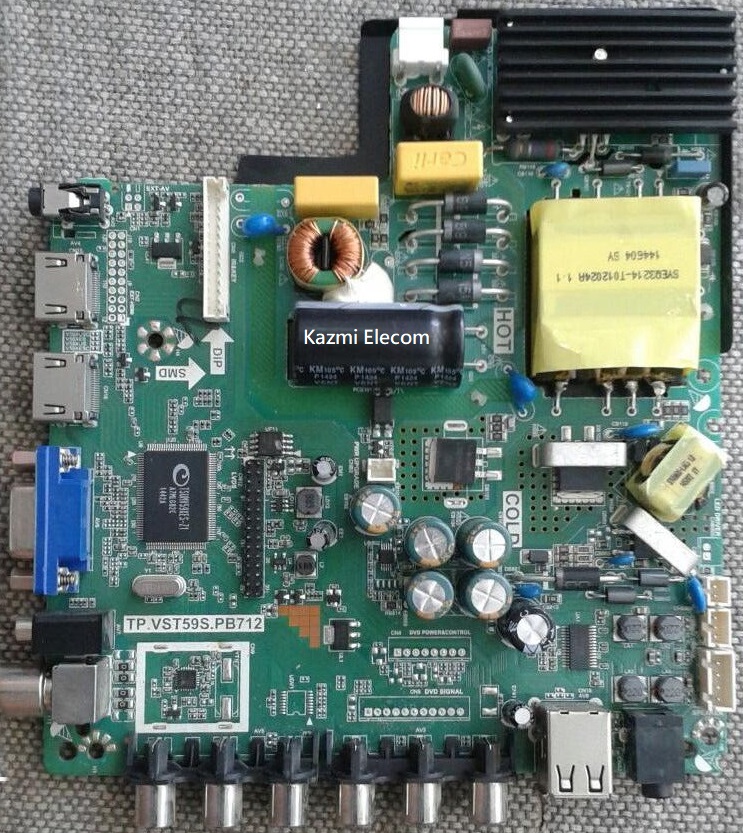

TP.VST59S.PB712 is a universal LCD/LED Boards that are designed in three types according to its electrical specifications. TP VST59S PB712 also has a wifi small board interface. TP_VST59S_PB712 according to color specifications are dived into electrical specifications like 94v for the yellow transformer and 130v for a blue transformer. It supports 26 to 55-inch screens mostly for smaller screens it has 30v t0 44v 32w.
General Specifications:
Brand/Mark: China Universal OEM
Model: TP.VST59S.PB712
Main Chip: TSUMV59
TV System: PAL\SECAM\NTSC PLAYBACK
Product: LED TV
Input Voltage: 220V AC
MAX Backlight Watt: 45W
Backlight voltage: 30-44V 32W
44V712: 65V
Yellow Transformer: 94V
Blue Transformer: 130V
Resolution: up to 1920×1080
WIFI Interface: Yes
Service Menu:
Menu 1147
USB Upgrade:
- Get the USB Empty or Format the U Disk into a FAT32 file system.
- Copy the required software/firmware bin file into USB Disk
- Insert the USB disk into USB port of mainboard
- Now Turn on the Power Supply the standby light will flash on/off. wait for the led light to stop. Done
Note: The following firmware is a dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.VST59S.PB712 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59S.PB712_1366x768_Asano Remote_Backup Dump | Download |
| 2 | TP.VST59S.PB712_1366x768_Samsung_Mirror_Backup Dump | Download |
| 3 | TP.VST59S.PB712_1366x768_Samsung_Normal_Backup Dump | Download |
| 4 | TP.VST59S.PB712_1366x768_Sony_Mirror_Backup Dump | Download |
| 5 | TP.VST59S.PB712_1366x768_Sony_Normal_Backup Dump | Download |
| 6 | TP.VST59S.PB712_1366x768_Sony_Backup Dump | Download |
| 7 | TP.VST59S.PB712_1366x768_Samsung_USB | Download |
| 8 | TP.VST59S.PB712_1920x1080_Samsung_Backup Dump | Download |
| 9 | TP.VST59S.PB712_1920x1080_Universal_Backup Dump | Download |
| 10 | TP.VST59S.PB712_AVISION_43K785_Backup Dump | Download |
| 11 | TP.VST59S.PB712_Intex_32_Backup Dump | Download |
| 12 | TP.VST59S.PB712_Reconnect_RELEG3205_Backup Dump | Download |
| 13 | TP.VST59S.PB712_Panasonic_FHD_Backup Dump | Download |
| 14 | TP.VST59S.PB712_Panasonic_TH-32C200DX_Backup Dump | Download |
| 15 | TP.VST59S.PB712_Panasonic_TH-32C460DX_Backup Dump | Download |
| 16 | TP.VST59S.PB712_1366x768_Samsung_WIFI_Backup Dump | Download |
