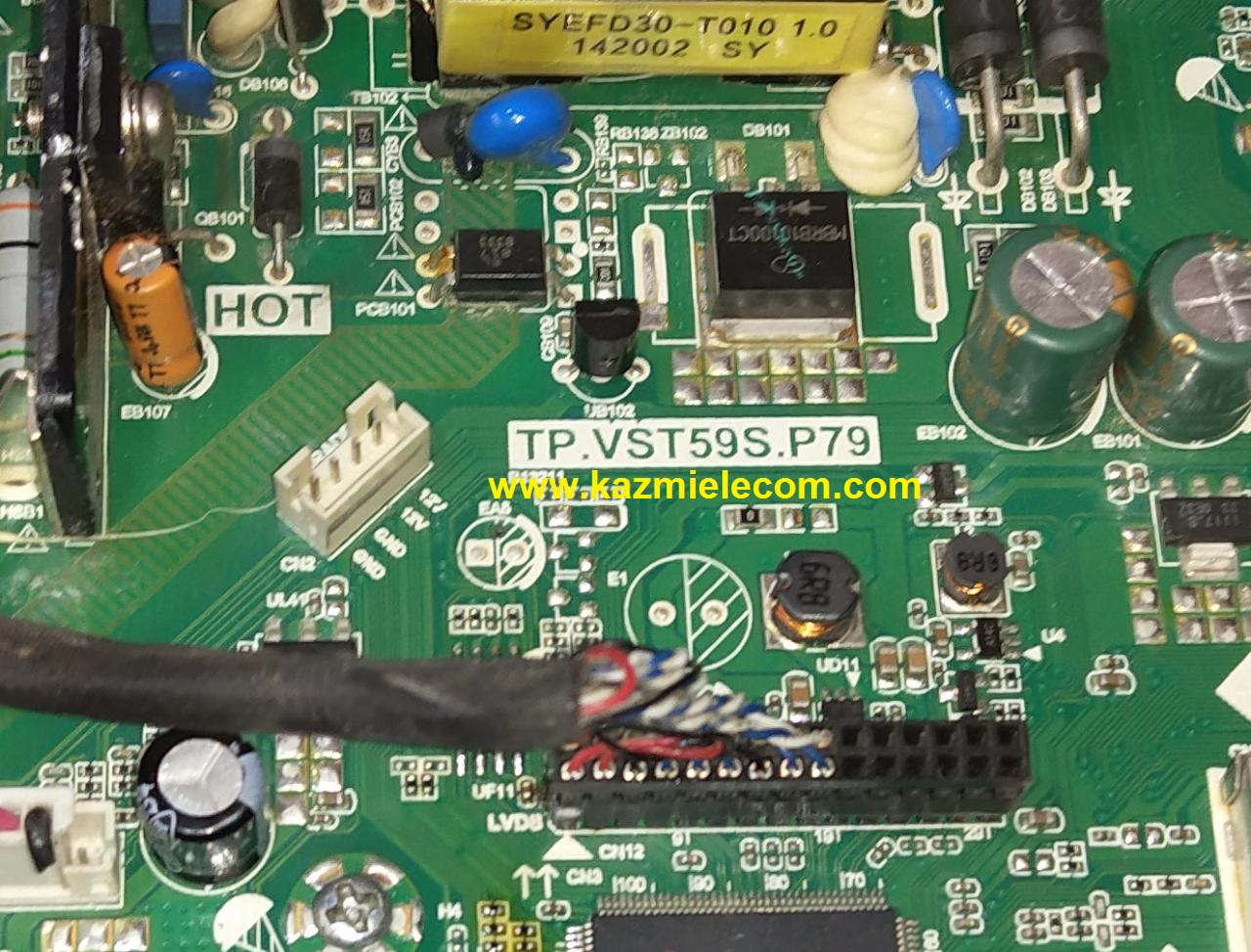

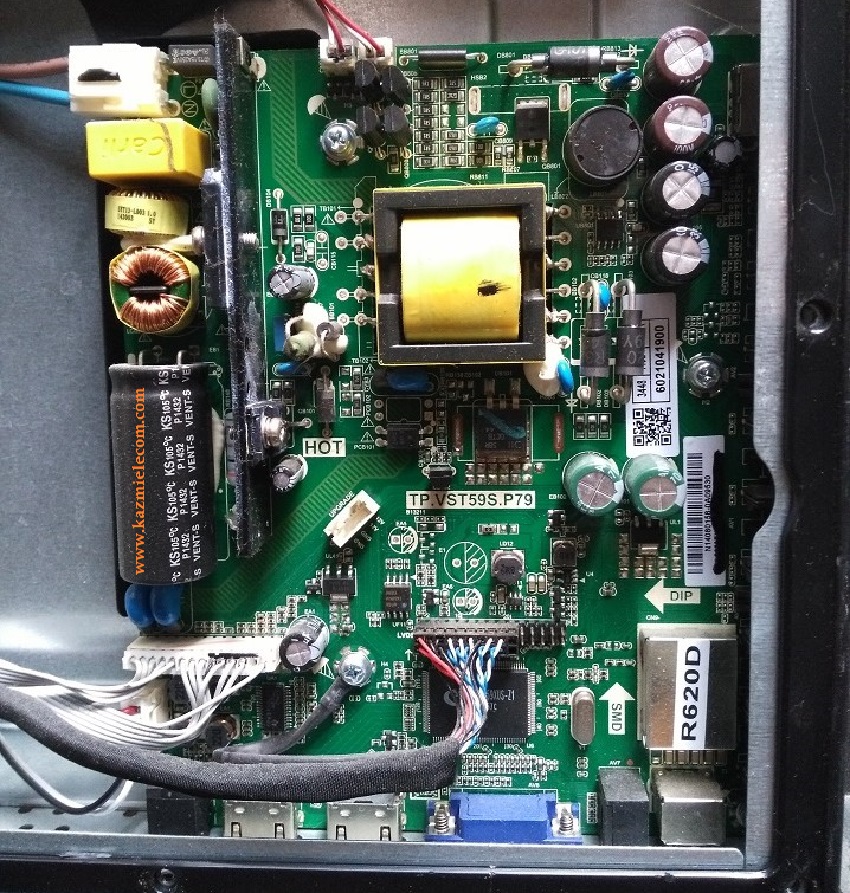

TP.VST59S.P79
TP.VST59S.P79 is a universal led tv driver board that is suitable for 32-inch panels and others. TP_VST59S_P79 is three in one board that is backlight inverter, main power supply, and logic board are builtin in single PCB that is why it is called a combo board. TP-VST59S-P79 firmware files are given below for technician support.
General Specifications:
Brand/Mark: China Universal
Model: TP.VST59S.P79
Main Chipset: TSUMV59XUS-Z1
Product: LED TV
Backlight: 45 to 65v 350mA 35w
Panel Voltage: 5v, 12v
Board Power Input: 220v AC
Resolution: Up to 1920×1080
Screen Supported: 26 to 46 inch
Service Code: Menu+1147
Note: The following given firmware is dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware and then extract you will get the folder. Now load the file by the programmer. For More Detail about download, process watch the video Click Here
Here are below some TP.VST59S.P79 firmware free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59S.P79_1366x768_DANSAT | Download |
| 2 | TP.VST59S.P79_1366x768_HAIER | Download |
| 3 | TP.VST59S.P79_1366x768_HKC | Download |
| 4 | TP.VST59S.P79_1366x768_HYUNDAI | Download |
| 5 | TP.VST59S.P79_1366x768_SANYO | Download |
| 6 | TP.VST59S.P79_1366x768_SHINON | Download |
Sir firmware you send me image not good .I need Main Board : TP.VST59S.P79 ok
Screen Model : HK315LEDM ok
But my MCU :TSUMV59XES-Z1
But yours is TSUMV59XUS-Z1 ?????????????????
image can be set in service menu. i shared what i have
