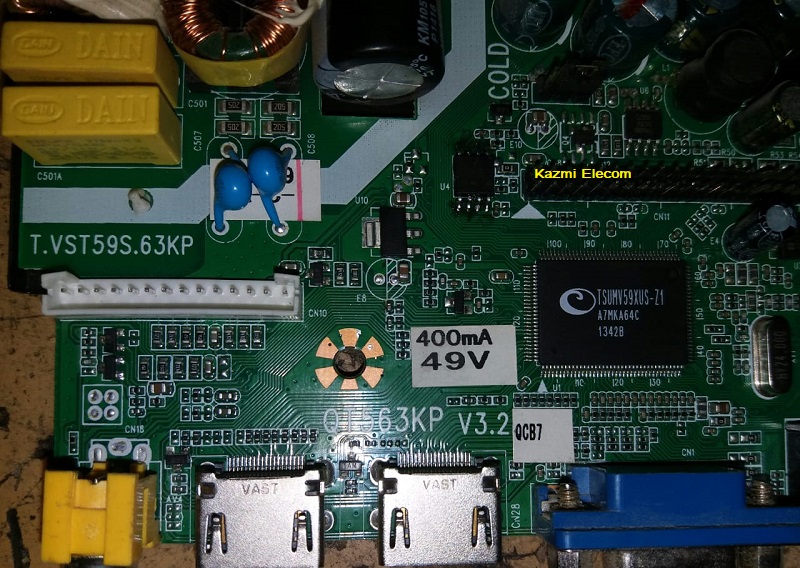

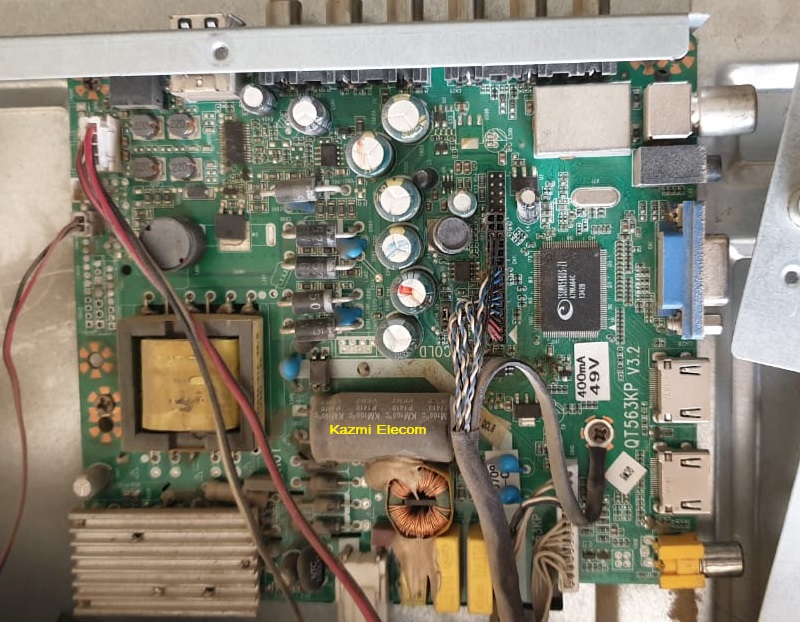

TP.VST59S.63KP QT563KP
TP.VST59S.63KP QT563KP is a Three-In-One LCD/LED TV Motherboard that is designed for especially 30-inch to 39-inch screens. TP_VST59S_63KP is a combo board which is three modules builtin into a single piece of PCB. TP-VST59S-63KP can support Full HD panel Resolution 1920×1080. Its USB interface can be used for multimedia playback and for software upgrades as well.
General Basic Info:
Brand/Mark: China Universal OEM
Model: TP.VST59S.63KP
TV System: PAL\SECAM\NTSC PLAYBACK
Product: LED TV
Input Voltage: 220V AC
MAX Backlight Watt: 25W, 400mA
Backlight voltage: 45-63V
Resolution: 30-39 ” GLASS PANEL
Service Menu:
Menu 1147
USB Upgrade:
- Format the U Disk into a FAT32 file system. It should be Empty
- Copy the required resolution software/firmware bin file with text file into USB Disk
- Insert the USB disk into USB port of the mainboard
- Now Turn on the Power Supply the standby light will flash on/off. wait for the led light to stop. Done
How to Download:
Download all parts of your required resolution and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch video Click Here
Note: Backup files are saved by a programmer and can be upgraded by a programmer only. Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
Here are below some TP.VST59S.63KP firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.VST59S.63KP_QT563KP_1366x768_China_USB | Download |
| 2 | T.VST59S.63KP_QT563KP_1366x768_Samsung_Backup Dump | Download |
| 3 | T.VST59S.63KP_QT563KP_JBV_32 Inch_Backup Dump | Download |
| 4 | T.VST59S.63KP_QT563KP_Samsung_3D_32 Inch_Backup Dump | Download |
| 5 | T.VST59S.63KP_QT563KP_Samsung_32F6300_Backup Dump | Download |
| 6 | T.VST59S.63KP_QT563KP_Samsung_40 Inch_Backup Dump | Download |
| 7 | T.VST59S.63KP_QT563KP_Sony_3D_32 Inch_Backup Dump | Download |
| 8 | T.VST59S.63KP_QT563KP_Sony_32 Inch_Backup Dump | Download |
| 9 | T.VST59S.63KP_QT563KP_Sony_KDL32W705A_Backup Dump | Download |
| 10 | T.VST59S.63KP_QT563KP_Yushchenko JL-32X_Backup Dump | Download |
Sir, good evening, I Raj Singh from New Delhi, India, I cannot download the ebook, download but not supported winrar format please send me a basic book series to my email rajmes1969@gmail.com
use 7zip
ASA,
MT TV MODEL IS SONY 3D 32INCH
BOARD NO.:- T.VST59S.63KP
SERIAL NO.:- QT563KP
I HAD DOWNLOADED THIS LINKED SOFTWARE.
KINDLY EXPLAIN ME HOW CAN I INSTALL THE SOFTWARE BECAUSE THERE ARE TWO ISSUES WHICH I CAN EXPLAIN YOU ON MY WHATSAPP NUMBER PLEASE CONTACT ME AND THIS IS MY NUMBER:-
0333-5590800
M. RAHEEL
w.salam
no need to update. you can reset it to factory default only.
