TP.VST59.PB819

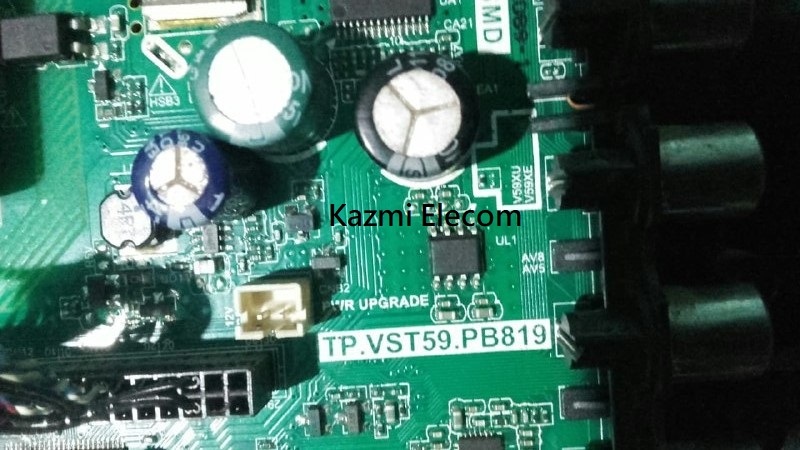

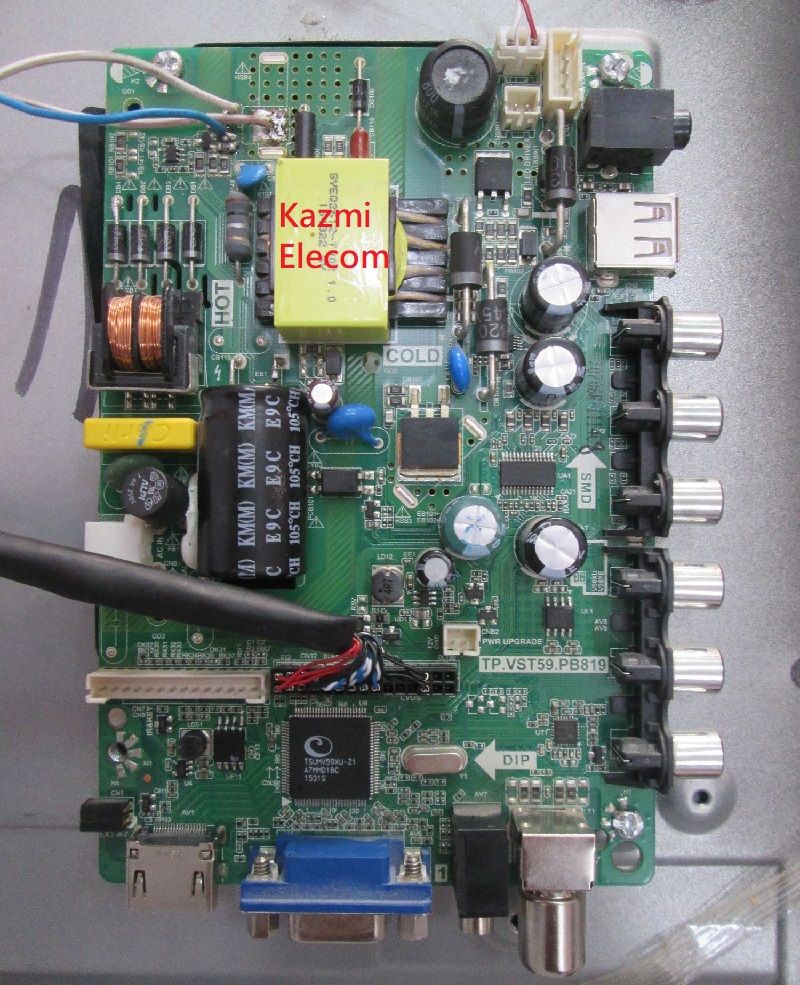

TP.VST59.PB819 is a Three-In-One LCD/LED TV Motherboard that is designed for especially 32-inch screens. TP_VST59_PB819 is a combo board that is three modules builtin into a single piece of PCB like a power card, a Backlight driver controller, and an ATV Module. TP-VST59-PB819 is a universal Board that is compatible with many panel screens.
General Basic Info:
Brand/Mark: China Universal
Model: TP.VST59.PB819
Main Chip: TSUMV59XU-Z1
TV System: PAL\SECAM\NTSC
Product: LED TV
Input Voltage: 220V AC
MAX Backlight Watt: 25W
Backlight voltage: 45-63V
Size : 146*128mm
Resolution: 30-39 ” GLASS PANEL
Service Menu:
Menu 2008
USB Upgrade Method:
1. Plug the U disk into the USB port.
2. Insert the AC cord and the machine go to standby status, then it will begin to update the SW, it will take you about 15 seconds to complete the whole update.
3. There is one feature when it updates, like below:
The led will twinkle, it will be red, green, red, green slowly, then change quickly, then the led change to red, TV power on itself.
Note: The following firmware is a dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.VST59.PB819 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59.PB819_1366x768_Backup Dump | Download |
| 2 | TP.VST59.PB819_1366x768_China_Flip-Mirror_USB | Download |
| 3 | TP.VST59.PB819_1366x768_China_Normal_USB | Download |
| 4 | TP.VST59.PB819_1366x768_Samsung_Backup Dump | Download |
| 5 | TP.VST59.PB819_1366x768_Sony_USB | Download |
| 6 | TP.VST59.PB819_1920x1080_Backup Dump | Download |
| 7 | TP.VST59.PB819_1920x1080_China_Flip-Mirror_USB | Download |
| 8 | TP.VST59.PB819_1920x1080_China_Normal_USB | Download |
| 9 | TP.VST59.PB819_3210_CV315PW05S | Download |
| 10 | TP.VST59.PB819_Amoi-32H6 | Download |
| 11 | TP.VST59.PB819_Hisense LED30K3068C | Download |
| 12 | TP.VST59.PB819_Konka-32_HV320WHB-N10 | Download |
| 13 | TP.VST59.PB819_Sony Ericsson D320L12-A | Download |
| 14 | TP.VST59.PB819_TOSNGZI_TOS32-S6 | Download |
| 15 | TP.VST59.PB819_Yushchenko 32 | Download |
| 16 | TP.VST59.PB819_ACE 32 inch_Backup Dump | Download |
