TP.VST59.PB818 Software Free Download

TP.VST59.PB818

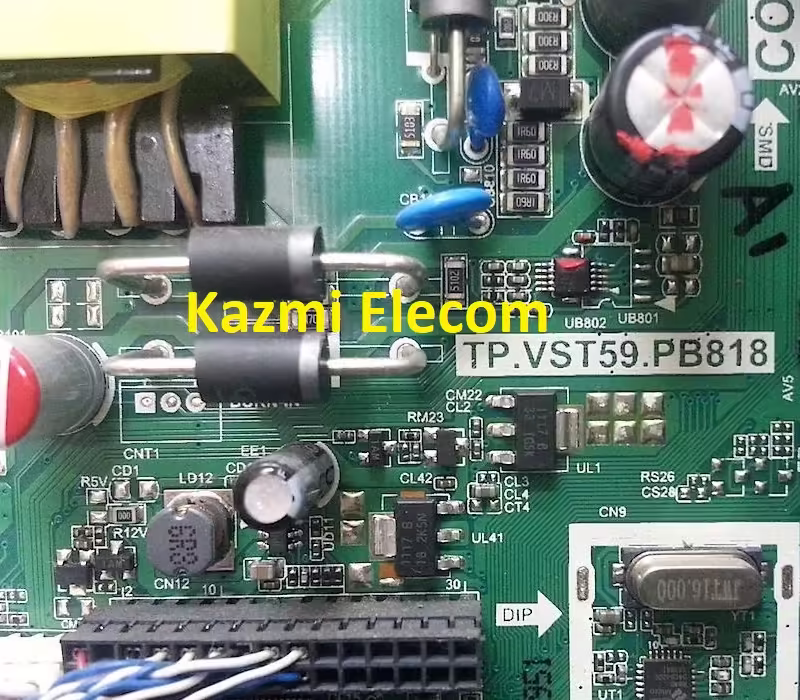

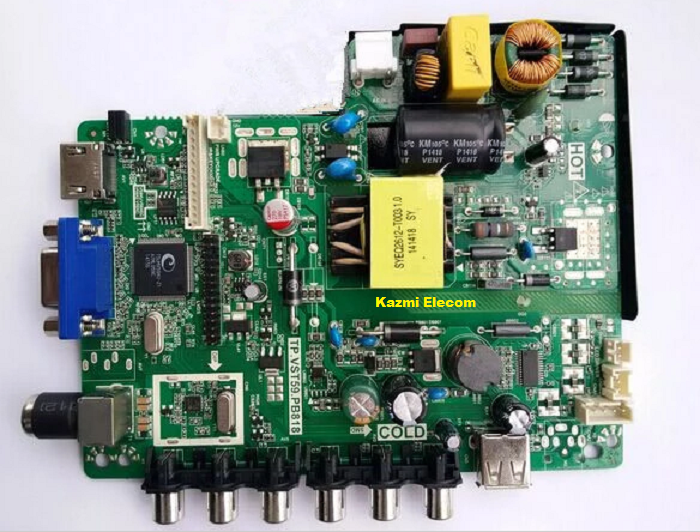

TP.VST59.PB818 is a simple ATV Driver Motherboard intended for LCD/LED TVs. It is intended to support Full HD LCD/LED Panel Screens. This board is suitable for the Asia Pacific and the Middle East markets. This is a three-in-one Combo Board. The ATV Card, the main power module circuit, and the LED Backlight Inverter Circuit module are built on a single PCB. This board has all the features and connectivity ports as per the latest user requirements like HDMI input, USB interface, PC input, Component Input, TV, and optional Scart interface.

Its USB input interface is especially for playing multimedia files and software upgrade purposes. It can also support Earphone output. TP.VST59.PB818 is a Full HD-supported LCD LED TV controller board with a maximum resolution of 1920×1080. It can support 27 to 39-inch HD and FHD panel screens. The main processor is made by Mstar and its graphics are also good. TP.VST59.PB818 firmware software files are shared below in this post.

Basic info:

Brand/Mark: China Universal

Model: TP-VST59-PB818

Product: LED TV

Resolution: 1366×768, 1920×1080

Panel: CMO, Universal

Main Chip: TSUMV59

Product: LCD/LED TV

LED Backlight: mA

Flash IC: 4Mb

Sound Chip:

Tuner IC:

Screen supported: inch

Resolution: Up to 1920×1080

Panel Voltage: 5V, 12V

Power Input: 220V AC

Firmware Name:

Firmware Type:

Service Code:

Menu 1147, Source/Input 2580

Caution:

All the pictures and specification details related to TP.VST59.PB818 in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.

Pros:

There are many advantages to installing the given TP.VST59.PB818 USB software or backup dump file. A few benefits are described below:

• The dead board can be recovered and operational by loading the given software backup file
• Remote and Logo may change at your own choice to satisfy the customer
• Money saving instead of changing the mainboard
• Time-saving instead of arranging a new board
• Customer satisfaction to do an urgent job
• Skill and confidence improvement

Cons:

There may be some disadvantages to installing the given TP.VST59.PB818 USB software or backup dump file. But it depends on the technician or user as per his understanding. A few drawbacks are described below:

• The working board may go to the standby position
• Remote Control may not work and the Logo may change by writing the given software
• Panel screen parameters may be changed

TP.VST59.PB818 Version Upgrade:

Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software is malfunctioning due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.

TP.VST59.PB818 Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.

Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation then visit and read here first. Always keep a backup before writing the flash.

How to Download:

Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

TP.VST59.PB818 firmware for free download:

[

S.NO.	BOARD NAME/DESCRIPTION	DOWNLOAD LINK
1	TP.VST59.PB818_1366x768_Samsung_Tested	Download
2	TP.VST59.PB818_ATA 32LED MODEL LE32D	Download
3	TP.VST59.PB818_Melody LE32M09	Download
4	TP.VST59.PB818_Piorifer LCD HT-32Q	Download
5	TP.VST59.PB818_HESENSE TLM32V66C	Download
6	TP.VST59.PB818_General_1366x768_USB	Download
7	TP.VST59.PB818_General_1920x1080_USB	Download
8	TP.VST59.PB818_1366x768_Changhong LED32A4000_Dump	Download
9	TP.VST59.PB818_1366x768_Eurostar_Backup_Dump	Download
10	TP.VST59.PB818_1366x768_Perfect 32_Backup_Dump	Download
11	TP.VST59.PB818_1366x768_Sony Ericsson 32LE12C_Dump	Download
12	TP.VST59.PB818_1366x768_TCL-LE32D99_Dump	Download
