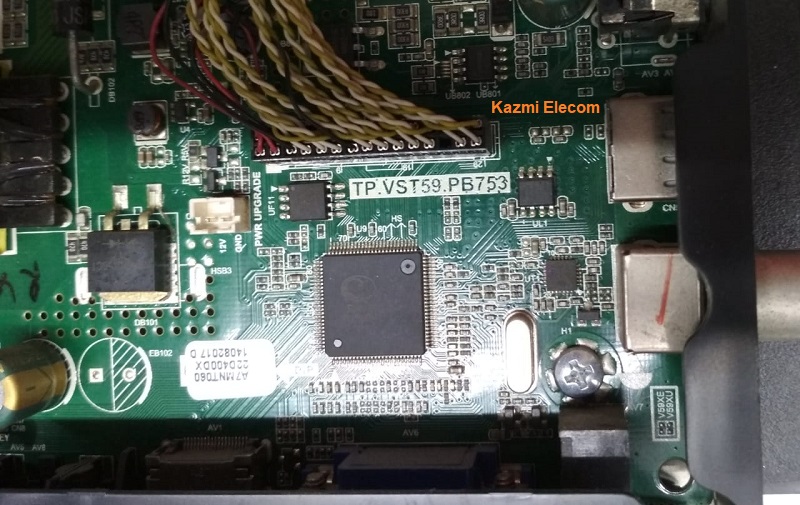

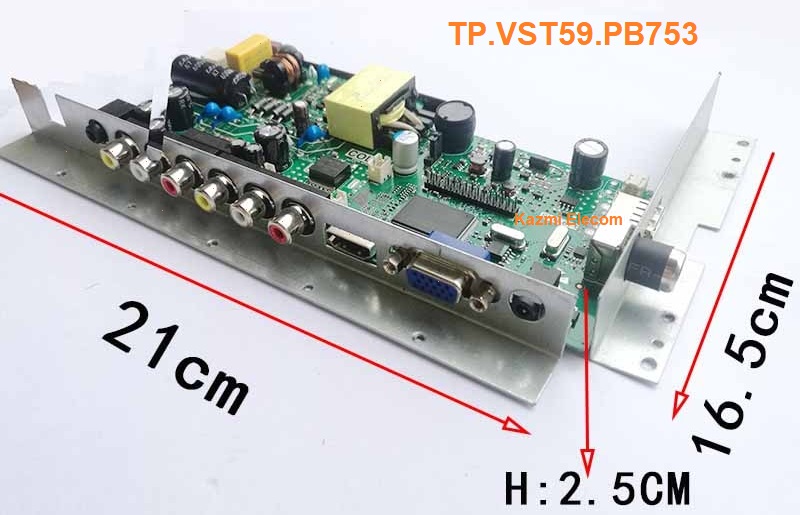

TP.VST59.PB753 Universal LCD/LED TV Board
TP.VST59.PB753 is an analog universal type LCD/LED TV Controller Board that is designed for full HD panels. TP_VST59_PB753 is a combo board and no need to attach an inverter and separate power module that is already builtin into this board. TP-VST59-PB753 can support 19 to 26-inch screen panels. Its USB interface can perform two functions Loading software and playing Multimedia files as well.
Basic Info:
Model No. TP.VST59.PB753 (Combo Board)
Main Chipset: TSUMV59XU-Z1
LED Backlight: 220mA to 300mA
Display Format: up to 1920×1080 Full HD
Panel Supported: 19″ t0 26″
Aspect Ratio: 4:3, 16:9 & 16:10
Electrical Parameters:
Working Input Voltage: AC 220V
Maximum Current: 3000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
Factory Service Mode:
Menu+1147
Note: The following firmware is a dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
TP.VST59.PB753 Firmware Free Download Here :
S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
---|---|---|
1 | TP.VST59.PB753_Mix Software.part1 | Download |
TP.VST59.PB753_Mix Software.part2 | Download | |
TP.VST59.PB753_Mix Software.part3 | Download | |
TP.VST59.PB753_Mix Software.part4 | Download | |
TP.VST59.PB753_Mix Software.part5 | Download |
