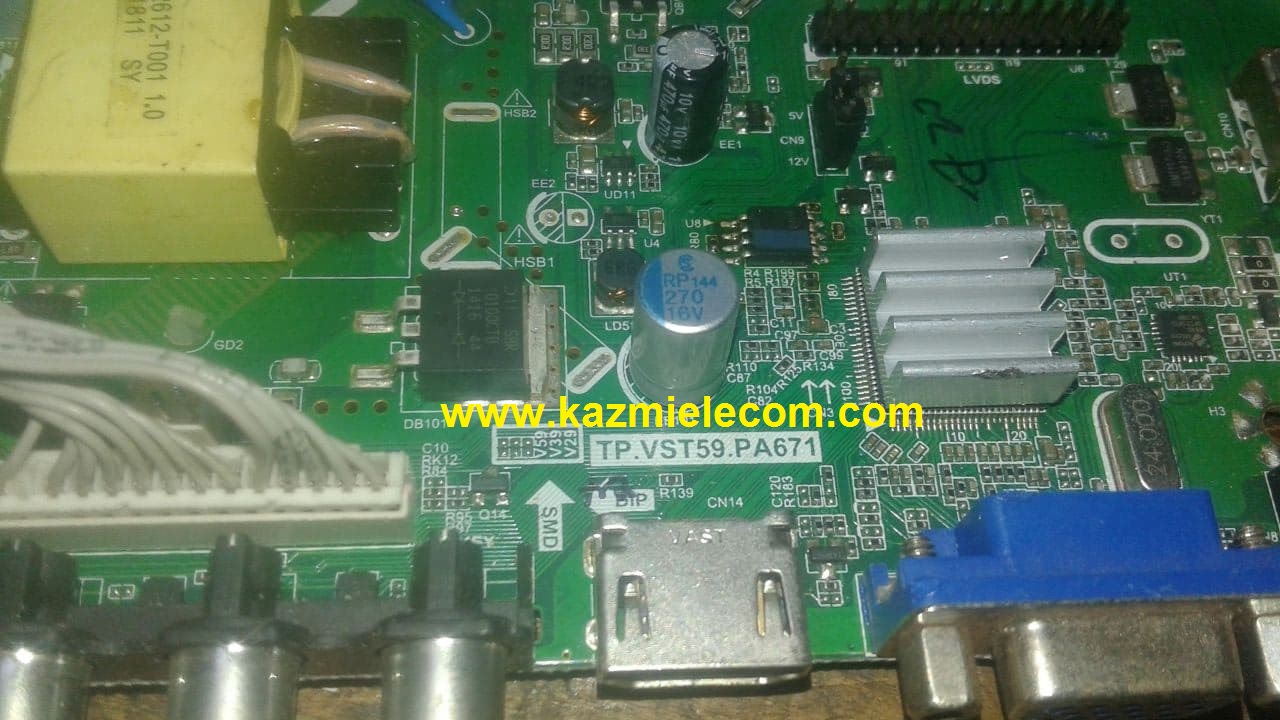

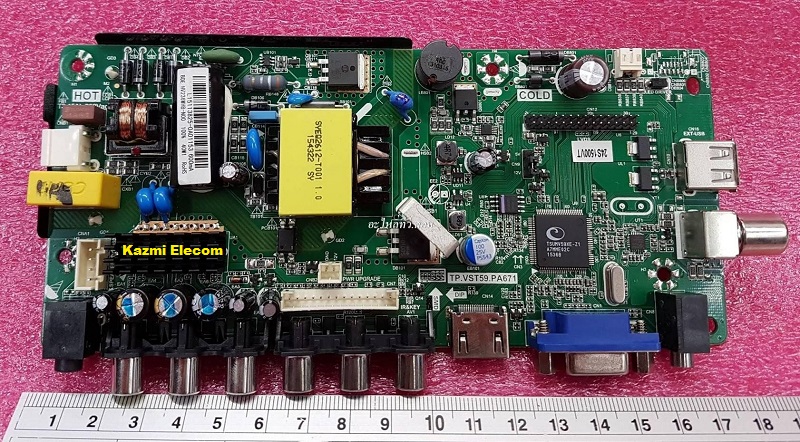

TP.VST59.PA671 Universal LCD/LED Controller Board
TP.VST59.PA671 is a non-smart universal LCD/LED TV Combo Controller Board.
Basic Info:
Model No. TP.VST59.PA671 (Combo Board)
Main Chipset: TSUMV59XU-Z1
LED Backlight: 220mA to 300mA
Display Format: up to 1920×1200
Panel Supported: 19″ t0 26″
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC 220V
Maximum Current: 3000mA (Without Panel)
Standby Power: <0.2W (for motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (*. Bin file) to the U disk.
Step 3: Connect the U disk with Mainboard
Step 4: Connect the Keypad and IR also
Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
Factory Service Mode:
Menu+1147
Note The following given firmware is USB bootable and dumps backup files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dumping files then read here first.
How to Download firmware files:
Download the following given firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
TP.VST59.PA671 Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | D.LINK.1 |
|---|---|---|
| 1 | TP.VST59.PA671_General_1024x768_USB | Download |
| 2 | TP.VST59.PA671_General_1280x720_USB | Download |
| 3 | TP.VST59.PA671_General_1280x768_USB | Download |
| 4 | TP.VST59.PA671_General_1280x1024_USB | Download |
| 5 | TP.VST59.PA671_General_1366x768_USB | Download |
| 6 | TP.VST59.PA671_General_1440x900_USB | Download |
| 7 | TP.VST59.PA671_General_1600x900_USB | Download |
| 8 | TP.VST59.PA671_General_1600x1200_USB | Download |
| 9 | TP.VST59.PA671_General_1680x1050_USB | Download |
| 10 | TP.VST59.PA671_General_1920x1080_USB | Download |
| 11 | TP.VST59.PA671_General_1920x1200_USB | Download |
| 12 | TP.VST59.PA671_SAMSUNG_1366x768_10-DATA | Download |
| 13 | TP.VST59.PA671_SONY_1366x768_10-DATA | Download |
| 14 | TP.VST59.PA671_CHINA_1366x768_10-DATA | Download |
| 15 | TP.VST59.PA671_22'' 5V FULL-HD | Download |
| 16 | TP.VST59.PA671_24'' 12V NON HD | Download |
| 17 | TP.VST59.PA671_24''_FULL HD | Download |
| 18 | TP.VST59.PA671_24''_Samsung IR | Download |
| 19 | TP.VST59.PA671_22-24_CHINA_ FULL-HD_COMBO | Download |
| 20 | TP.VST59.PA671_COMBO HD_1366x768 | Download |
| 21 | TP.VST59.PA671_FULL HD_Aiwa-Logo_240mA | Download |
| 22 | TP.VST59.PA671_GEANT_LED24GN1050 | Download |
| 23 | TP.VST59.PA671_GLOBALINDIA-LE2288 | Download |
| 24 | TP.VST59.PA671_LED-ATA 24E1 | Download |
| 25 | TP.VST59.PA671_MARKSON-BLADE86 | Download |
| 26 | TP.VST59.PA671_TSUMV59XU-Z1_25Q32_M236MWF1 | Download |
| 27 | TP.VST59.PA671_Amoi HD24 | Download |
| 28 | TP.VST59.PA671_China_BPL_22'' | Download |
| 29 | TP.VST59.PA671_FUSION_FLTV-22C10 | Download |
| 30 | TP.VST59.PA671_1920x1080_Samsung_Backup Dump | Download |
| 31 | TP.VST59.PA671_1366x768_Samsung_Mirror_Tested | Download |
