TP.VST59.PA502 Software Free Download

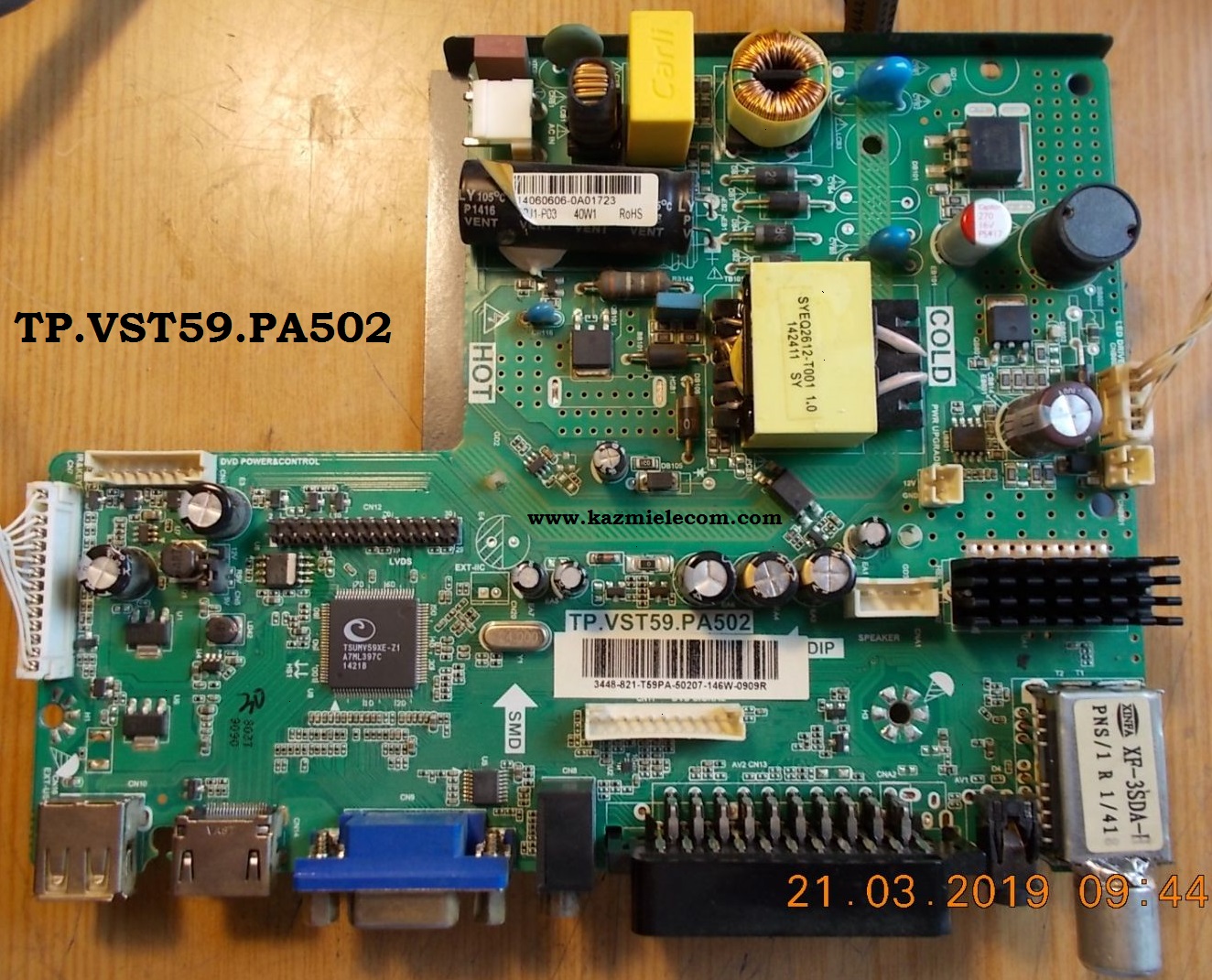

TP.VST59.PA502 LED TV Board

TP.VST59.PA502 is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080. TP_VST59_PA502 is a combo board which means the main power supply, ATV board, and LED backlight driver board is a built-in single PCB. TP-VST59-PA502 firmware files are given below for the technician’s support. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

Download Here

TP.VST59.PA502 three-in-one non-smart board has multiple interfaces for input and output connectivity. It has a VGA interface for connecting computers and laptops. It has an HDMI input interface port for connecting Full HD digital devices. It has also a USB input interface for connecting external hard disk drives and software upgrades. Headphones output and scart interface for connecting analog devices.

General Specifications:

Brand/Mark: China Universal

Model: TP.VST59.PA502

Main Chip: TSUMV59XU-Z1

TV System: PAL\SECAM\NTSC PLAYBACK

Product: LED TV

Input Voltage: 220V AC

MAX Backlight Watt: 40.5W

Backlight voltage:

Resolution: up to 1920×1080

Flash size: 4 MB

Service Menu:

Menu 1147

Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.

How to Download Firmware Files:

Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
