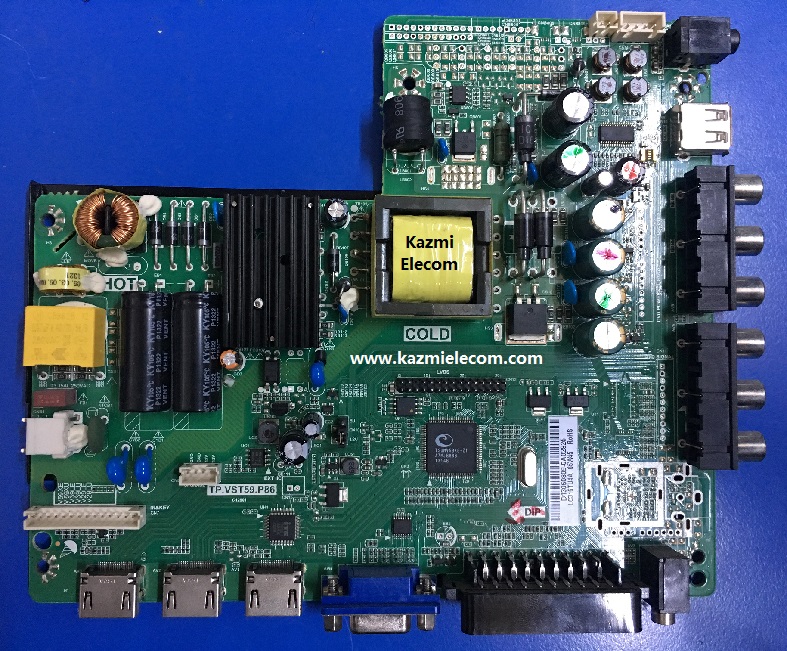

TP.VST59.P86 LED TV Board
TP.VST59.P86 is an analog TV control board, which is suitable for Asia-Pacific and Middle-East markets. TP-VST59-P86 is an integration board of power supply, LED driver, and TV board that is also called a combo board. TP_VST59_P86’s power part is an energy-efficient ultrathin DC-line switching power supply unit, with a max 75W/115VAC input, and 65 watts multi-output. It fits 26〞to 32〞LED backlight TFT panels. TP VST59 P86’s USB slot can be used for updating software and playing multimedia, such as MP3 and JPEG.
Note: With the Power of constant current part less than 35W, TP.VST59.P86 is up to support 6-channel output and the current of each channel is up to 280mA. The Fuse inside the power supply shall open when the AC input current is over the rated current of the fuse. This Fuse protection will cause the switching power supply to fail.
General Specifications:
Brand/Mark: China Universal
Model: TP.VST59.P86
Main Chipset: TSUMV59XU-Z1
Product: LED TV
Backlight: 35W 280mA
Panel Voltage: 12v
Board Power Input: 220v AC
Resolution: Up to 1920×1080
Screen Supported: 26 to 32 inch
Service Code: Menu+1147 OR Menu+8893
Note: The following firmware is a USB boot and dumps backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Details about the download, process watch the video Click Here
TP.VST59.P86 firmware free download:
