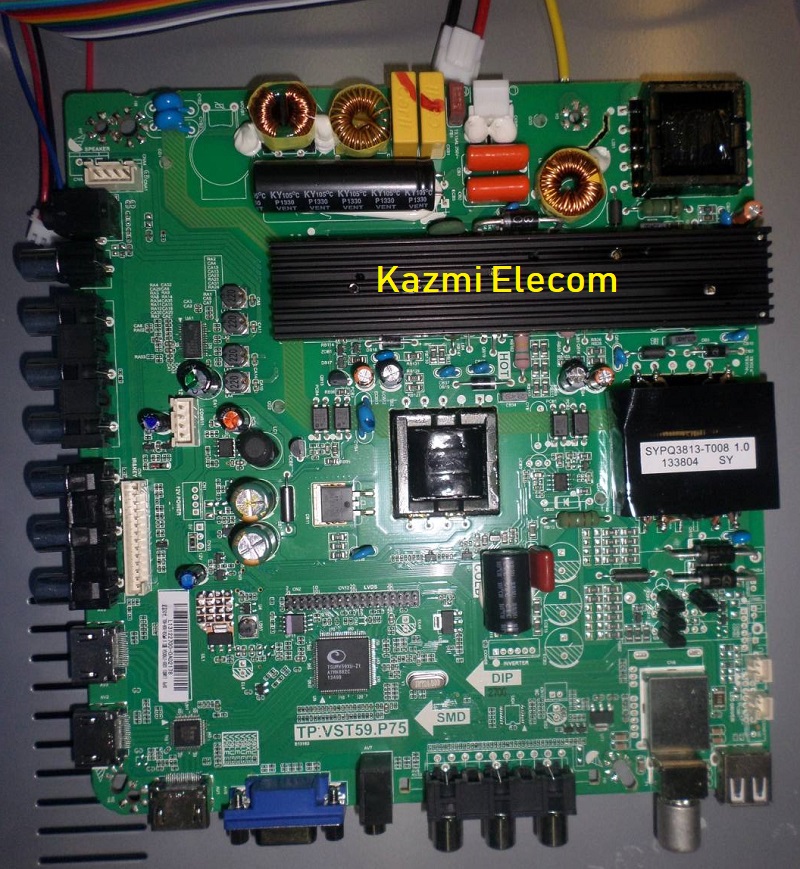

TP.VST59.P75 LED TV Board
TP.VST59.P75 is an analog TV control board, which is suitable for Asia-Pacific and middle-East markets. TP_VST59_P75 is an integration board of power supply, LED driver, and TV board that is also called a combo board. TP-VST59-P75’s power port is an energy-efficient ultrathin DC-line switching power supply unit, with max 85W/115VAC input, and 100 watts multi-output. It fits 40〞to 50〞LED backlight TFT panel screens. Its USB interface can be used for multimedia playback and for software updates as well. TP.VST59.P75 ’s USB slot can be used for updating software and playing multimedia, such as MP3 and JPEG.
General Specifications:
Brand/Mark: China Universal
Model: TP.VST59.P75
Main Chipset: TSUMV59XU/TSUMV59XE
Product: LED TV
OSD Language: Chinese, English
Backlight: 60-85v, 60w 800mA
Panel Voltage: 12v
Board Power Input: 100 to 240v AC
Resolution: Up to 1920×1080
Screen Supported: 40 to 50 inch
Service Code: Menu+1147
Note: The following firmware is a dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.VST59.P75 firmware free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59.P75_All Resolution.part01 | Download |
| TP.VST59.P75_All Resolution.part02 | Download | |
| TP.VST59.P75_All Resolution.part03 | Download |
Buenas tardes amigos saludos desde Venezuela, estoy tratando de descargar el firmware de la placa TP.VST59.P75 para reprogramar el eeprom y no me deja descargar las demás partes, alguna sugerencia o si alguien lo tiene que lo pueda subir, aquí mi correo kelvis.xavier89@gmail.com, les agradecería su pronta respuesta,en especial a quien subió el post!!!
dear mention resolution what you want i will send you
p75-358tv9.0 firmware
email me, board pictures and panel number
Hello, I want to buy this board, there is all configuration & System is ok, how can I get this? And how much price? Delivery to Doha,Qatar is it possible? Give me your contact number please.
i am not a seller. search google
I WHANT THIS BOARD HOW CAN GET THIS PLZ HELP ME
visit your local market
saludos amigo un abrazo y muchas gracias por compartir, me puedes ayudar con el firmware tel televisor haier placa tp.vst59.p75 48 pulgadas YCA LED resolucion 1920×1080 mi correo sanchezmm2811@gmail.com
search google with the model number, not board number
buenas me podrian ayudar con el archivo bios de 4 megas para programar la memoria de este modelo mi correo es hoswar21@gmail.com cualquier ayuda que me puedan brindar gracias de ante mano
resolution?
