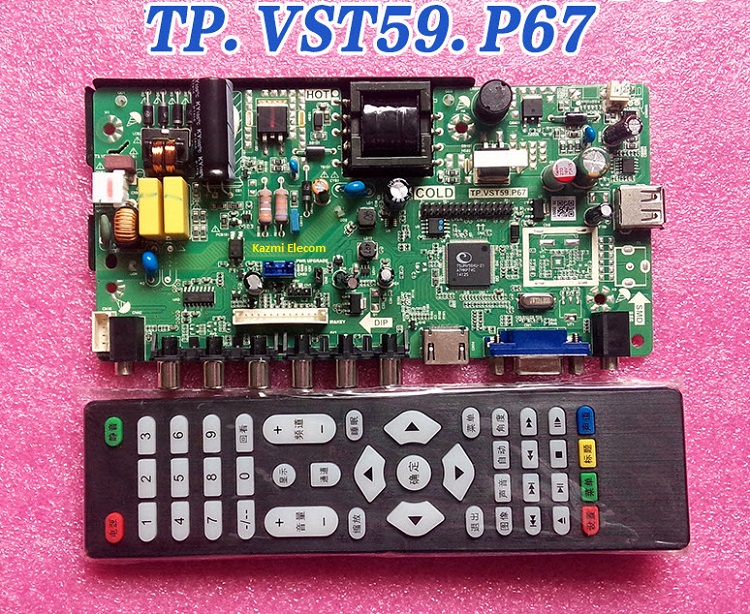

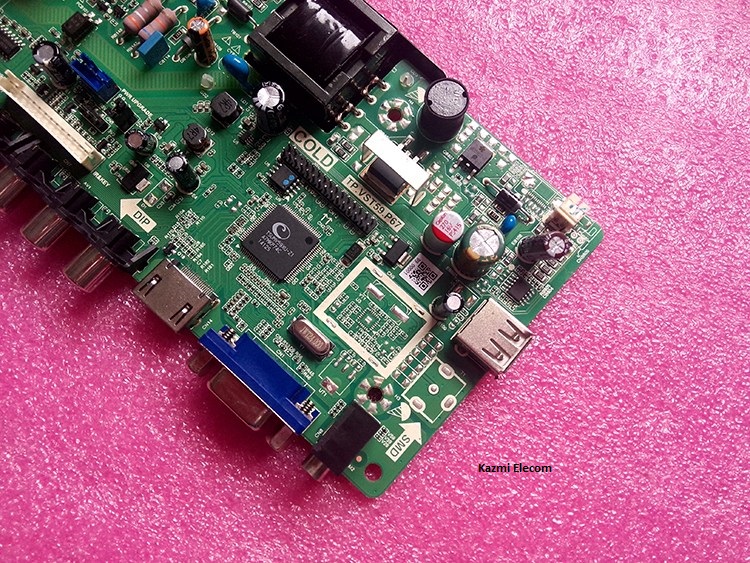

TP.VST59.P67 Universal LCD/LED Controller Board
TP.VST59.P67 is a non-smart LCD/LED TV combo Controller driver board.
Basic Info:
Model No. TP.VST59.P67 (Combo Board)

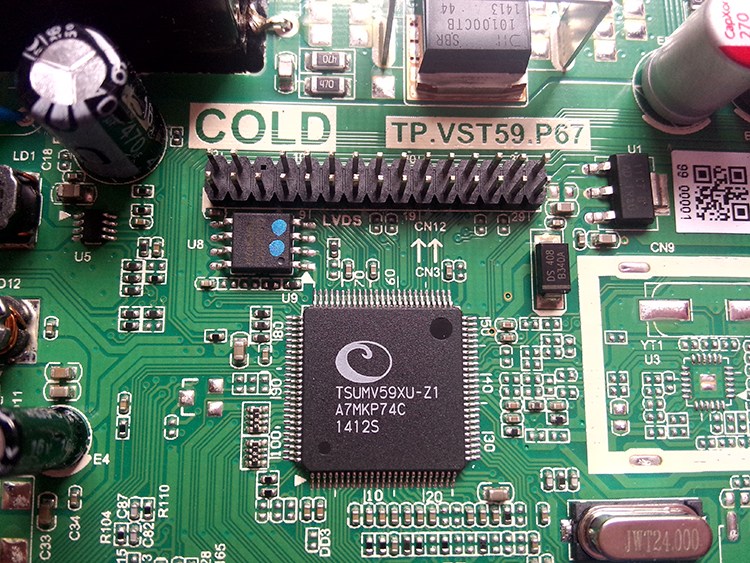

Main Chipset: TSUMV59XU-Z1
LED Backlight: 220mA to 300mA
Display Format: up to 1920×1200
Panel Supported: 19″ t0 26″
Aspect Ratio: 4:3, 16:9 & 16:10
Electrical Parameters:
Working Input Voltage: AC 220V
Maximum Current: 3000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (*. Bin file) to the U disk.
Step 3: Connect the U disk with Mainboard
Step 4: Connect the Keypad and IR also
Step 5: Connect the power supply, check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
Factory Service Mode:
Menu+1147
Note: The following firmware is a USB Boot/dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
TP.VST59.P67 Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.VST59.P67_General_1024x768_Normal | Download |
| 2 | T.VST59.P67_General_1366x768_Normal | Download |
| 3 | T.VST59.P67_General_1600x900_Normal | Download |
| 4 | T.VST59.P67_General_1680x1050_Normal | Download |
| 5 | T.VST59.P67_General_1920x1080_Normal | Download |
| 6 | T.VST59.P67_General_1920x1200_Normal | Download |
| 7 | T.VST59.P67_Panel_1366x768_Normal | Download |
| 8 | T.VST59.P67_Panel_1920x1080_Normal | Download |
| 9 | TP.VST59.P67_General_1024x768_Mirror | Download |
| 10 | TP.VST59.P67_General_1366x768_Mirror | Download |
| 11 | TP.VST59.P67_General_1600x900_Mirror | Download |
| 12 | TP.VST59.P67_General_1680x1050_Mirror | Download |
| 13 | TP.VST59.P67_General_1920x1080_Mirror | Download |
| 14 | TP.VST59.P67_General_1920x1200_Mirror | Download |
| 15 | TP.VST59.P67_Panel_1366x768_Mirror | Download |
| 16 | TP.VST59.P67_Panel_1920x1080_Mirror | Download |
| 17 | TP.VST59.P67_KONKA_LED24AS811-W25Q32FV | Download |
| 18 | TP.VST59.P67_1366x768_Samsung_Backup Dump | Download |
| 19 | TP.VST59.P67_1920x1080_Sony_Backup Dump | Download |
