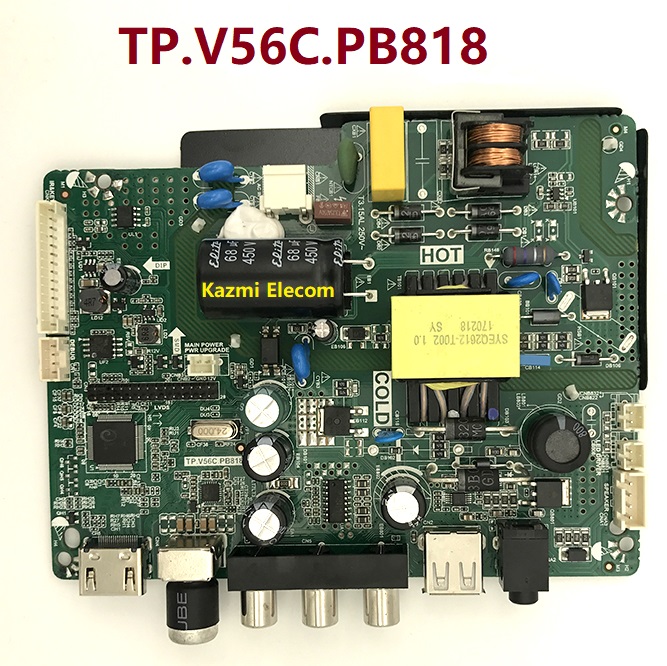

TP.V56C.PB818 LED TV Board
TP.V56C.PB818 is an analog LCD/LED TV ATV Controller Board that is designed especially for Asian countries and the Middle East as well. TP-V56C-PB818 is a combo, three in one universal Board that is designed for the power supply unit and Inverter board with ATV Module three-in-one embedded board and is also called a combo tv board. TP_V56C_PB818 supports 24 to 36-inch screens up to a resolution of 1920×1080. You can use the USB interface for updating software and can also the ability to play Movies/music/photos, Many formats are supported.
General Specifications:
Brand/Mark: Lehua China Universal
Model: TP.V56C.PB818
Main Chipset: TSUV56RJUL-Z1
Product: LED TV Driver Motherboard
Resolution: Up to 1920×1080
Panel Supported: 24″ to 36″
Panel voltage: 12V
Input Supply: 100 to 240V AC
Motherboard power: 48W
Backlight Parameters: 45-63V 27w
Backlight current: 480mA
Speaker Output: 2x5W(8ohm)
Service Code: Menu+1147
How to Load Software:
- Copy the required program/bin file or software to the USB-Disk drive
- Insert the USB disk drive into the USB interface port on the main board
- Connect the keyboard and power on the switch, until you see the indicator on the keyboard flashing in red and green, until the indicator flashing stops then turn off the power, then Pull out the USB disk, and power it on.
Note:
All Backup or Dump files can be loaded by the programmer. Can not upgrade by USB interface. All files are tested by myself. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.V56C.PB818 firmware USB updateable for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.V56C.PB818_General_1366x768_USB | Download |
| 2 | TP.V56C.PB818_General_1920x1080_USB | Download |
| 3 | TP.V56C.PB818_HPP 32H2700_Backup Dump | Download |
For video tutorials, visit my youtube channel.
Tp.v56c.pb818 software
tp.sk108.pb818 software 32” led ye software chaye ser
iska nai hy mere pas
SL.53A.PB818 firmware
When to use dump file ?
this is a backup file and can be used to recover the board if software malfunction
