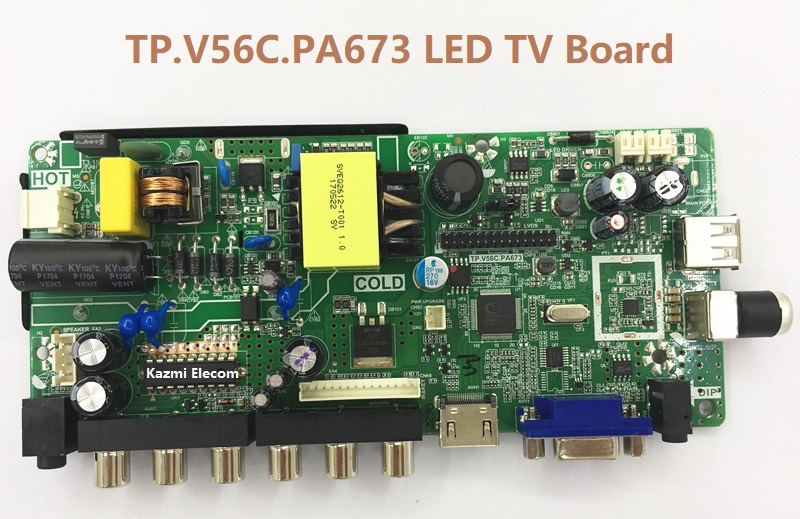

TP.V56C.PA673 LED TV Board
TP.V56C.PA673 is an analog tv board with the integration of a network driver board, power supply, and tv module. TP-V56C-PA673 with backlight power under 15W, the main promotion backlight voltage is between 18v-60V, and single backlight output. TP_V56C_PA673 is mostly used for 18.5″ to 24″ screens and can support resolutions up to 1920×1080.
General Specifications:
Brand Name: Junhengtai
Model Number: TP.V56C.PA673
Backlight Type: LED
Wide Screen Support: Yes
Display Format: 720P (HD)
Screen Size: 18.5-24 inch
Support Resolution: 1920×1080
Main IC: TSUMV56RJUL-Z1
OSD Language: English
Factory Mode: Menu+1147
How to Update Software:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (*. Bin file) with the TXT file to the
U disk based on your screen size
Step 3: Connect the U dish and TV Mainboard Via USB Interface
Step 4: Connect the Keyboard and TV Mainboard
Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light,
that is in the written program, waiting for the light to turn to Green, work is done.
If there is no flashing light, please cut off the power supply, then connect the USB once
again, then connect the power supply again,
(Note: During Step 5, the power supply can’t be cut off *The same firmware can only
be burned once time)
Boot Logo Setting:
Step 1: Put your logo into the U disk
Step 2: Connect your U disk with the mainboard
Step 3: Find your logo in Multi-media File
Step 4: Select your logo
Step 5: Press No.”6 ” on the remote control to change to fullscreen play, then press “ok” on
the remote control, on the bottom of the option items, there is a ” catch”, choose it. Done
Note:
All Backup or Dump files can be loaded by the programmer. Can not upgrade by USB interface. All files are tested by myself. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.V56C.PA673 firmware USB updateable for free download:
For video tutorials, visit my youtube channel.
